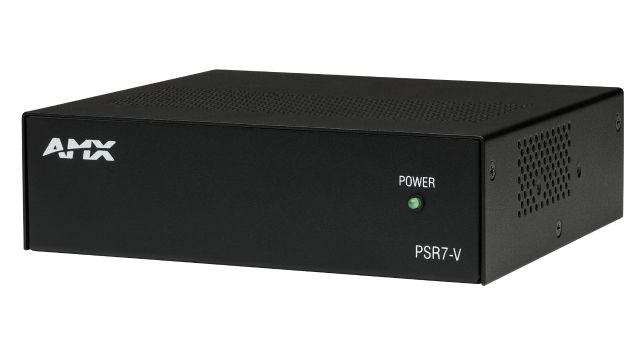

The PSR7-V power supply provides 5.5 amps of 12VDC power and is an optional power supply for Modero® X Series line of touch panels and NetLinx NX Integrated Central Controllers. It includes three 3.5 mm phoenix connectors with retention screws.
Accessories include a V-style module rack tray and surface mount brackets which allow the PSR7-V power supply to be securely mounted to flat surfaces such as under a table or on a wall. Up to three power supplies can be mounted side-by-side using a 1 RU space.
Common Applications
Ideal for professional AV installations, the PSR7-V power supply helps to protect valuable components against over-voltage, over-current, short-circuit, transient and thermal damage.
Features
- Protection – Against over-voltage, over-current, short-circuit, transient and thermal; switching regulated and overload protected.

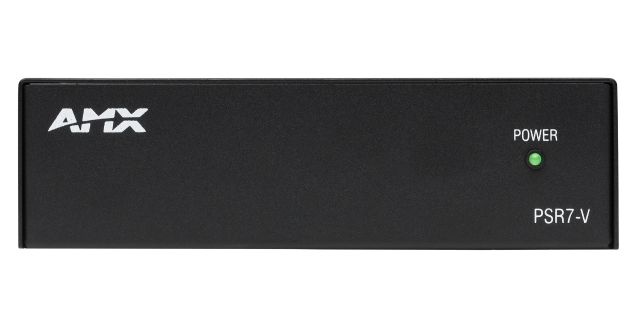

- Power Indicator – Green LED indicates DC on the output in fault tolerant range.

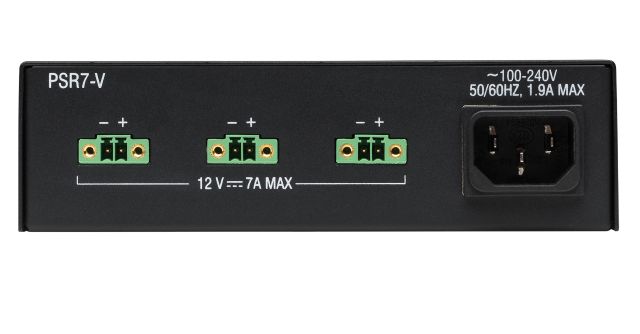

- Connectors – Includes 3 x Mini 2-pin captive wire connector (3.5 mm).
- Input Power Cord – IEC power cord provided as a separate part, dependent on country requirements
Specifications
| Power Supply | Input Voltage: ~100-240 V, 1.9A MAX, 47/63 Hz; Output Voltage: 12 VDC +/-.6V; Output Current: 5.5 A |
| Dimensions | 1 5/8" x 5 3/4" x 5 1/8" (4.13 cm x 14.6 cm x 13.02 cm) (HWD) |
| Operating Environment | Operating Temperature: 32°F to 122°F (0°C to 50°C) |
| FG Numbers | FG423-49 |
