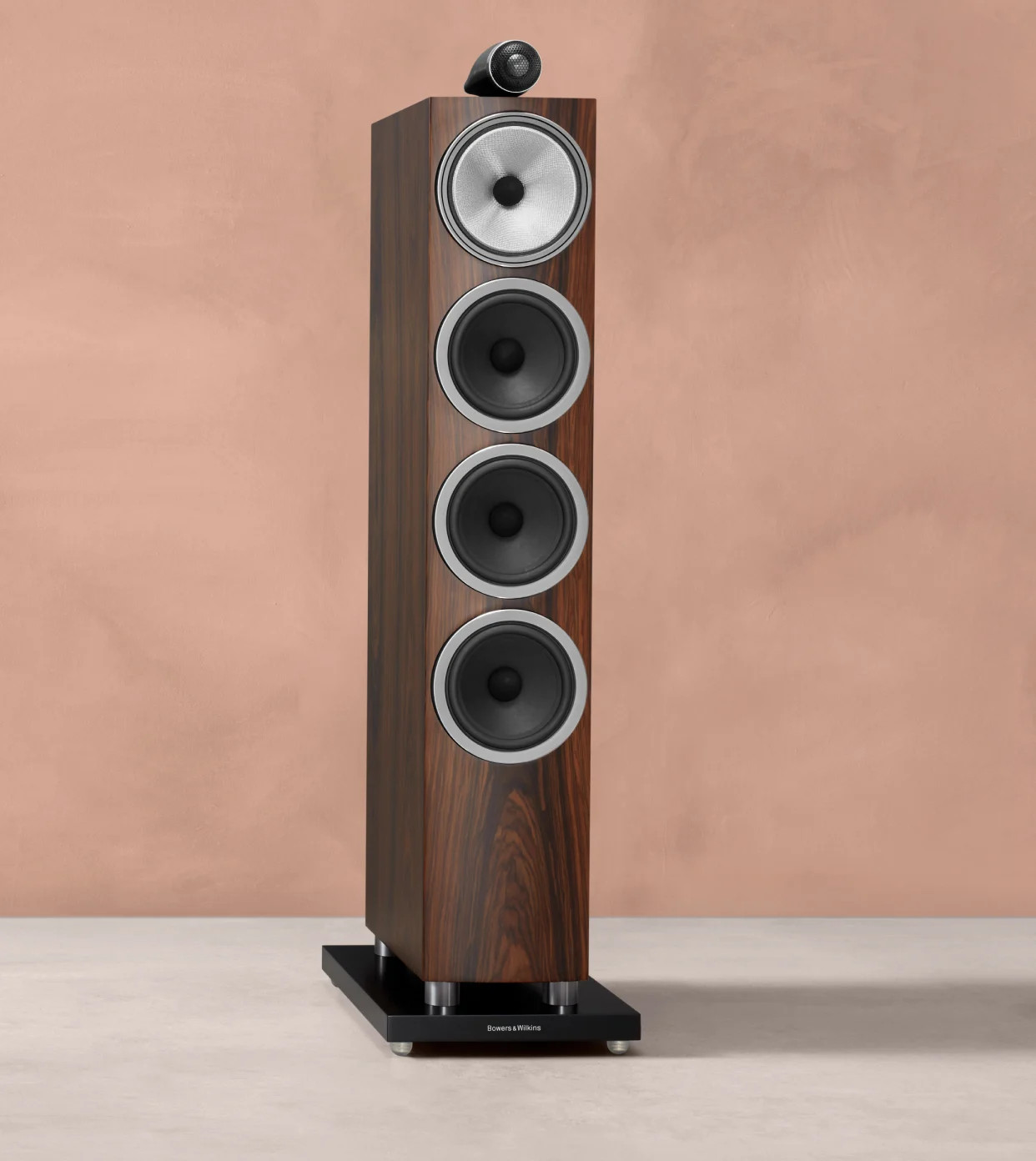

702 S3
702 S3's Carbon Dome tweeter is housed in an all-new Solid Body Tweeter assembly, while with its new downward-firing port configuration and trio of Aerofoil Profile bass cones, it delivers bass that’s both profoundly deep and endlessly articulate.
Specifications
-
Size & weight
Dimensions Height: 1010 mm (39.8 in) cabinet only
1138 mm (44.8 in) including tweeter and plinth
Width: 192 mm (7.6 in) cabinet only
290 mm (11.4 in) including plinth
Depth: 354 mm (13.9 in) cabinet only
391 mm (15.4 in) including grille and terminals
410 mm (16.1 in) including plinthNet weight 33.46kg (73.8 lb) Technical details
Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™Description 3-way vented-box system Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bassFrequency range 28Hz to 33kHz Frequency response 46Hz - 28kHz ±3dB Sensitivity 90dB spl (2.83Vrms, 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHzNominal impedance 8Ω (minimum 3.1Ω) Recommended amplifier power 30W - 300W into 8Ω on unclipped programme Max recommended cable impedance 0.1Ω Finishes
Cabinet finishes Gloss Black
Satin White
MochaGrille finishes Black
Grey (Satin White only)
