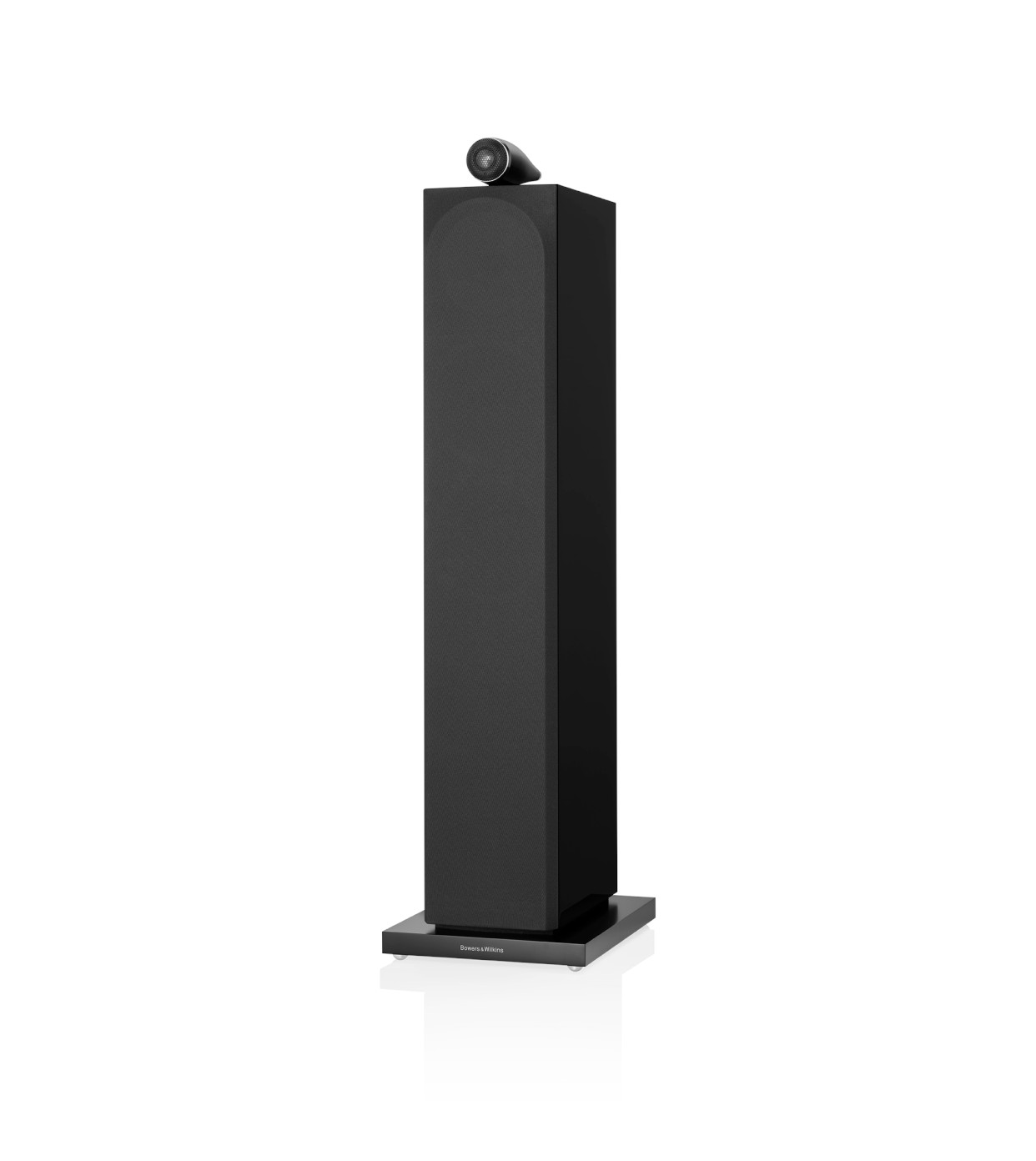

703 S3
The new 703 S3 now features our iconic Tweeter-on-Top configuration for the first time, alongside a decoupled FST™ Continuum cone midrange driver – enhanced by the addition of our revolutionary new Biomimetic Suspension – and twin Aerofoil Profile bass drivers.
Specifications
-
Size & weight
Dimensions Height: 1010mm (39.8 in) cabinet only
1117mm (44.0 in) including tweeter and plinth
Width: 192mm (7.6 in) cabinet only
290mm (11.4 in) including plinth
Depth: 316mm (12.4 in) cabinet only
353mm (13.9 in) including grille and terminals
372mm (14.6 in) including plinthNet weight 28.81kg (63.5 lb) Technical details
Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™Max recommended cable impedance 0.1Ω Description 3-way vented-box system Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
2x ø165mm (6.5 in) Aerofoil Profile bassFrequency range 30Hz to 33kHz Frequency response 46Hz - 28kHz ±3dB Sensitivity 90dB spl (2.83Vrms, 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHzNominal impedance 8Ω (minimum 3.1Ω) Recommended amplifier power 30W - 200W into 8Ω on unclipped programme Finishes
Cabinet finishes Gloss Black
Satin White
MochaGrille finishes Black
Grey (Satin White only)
