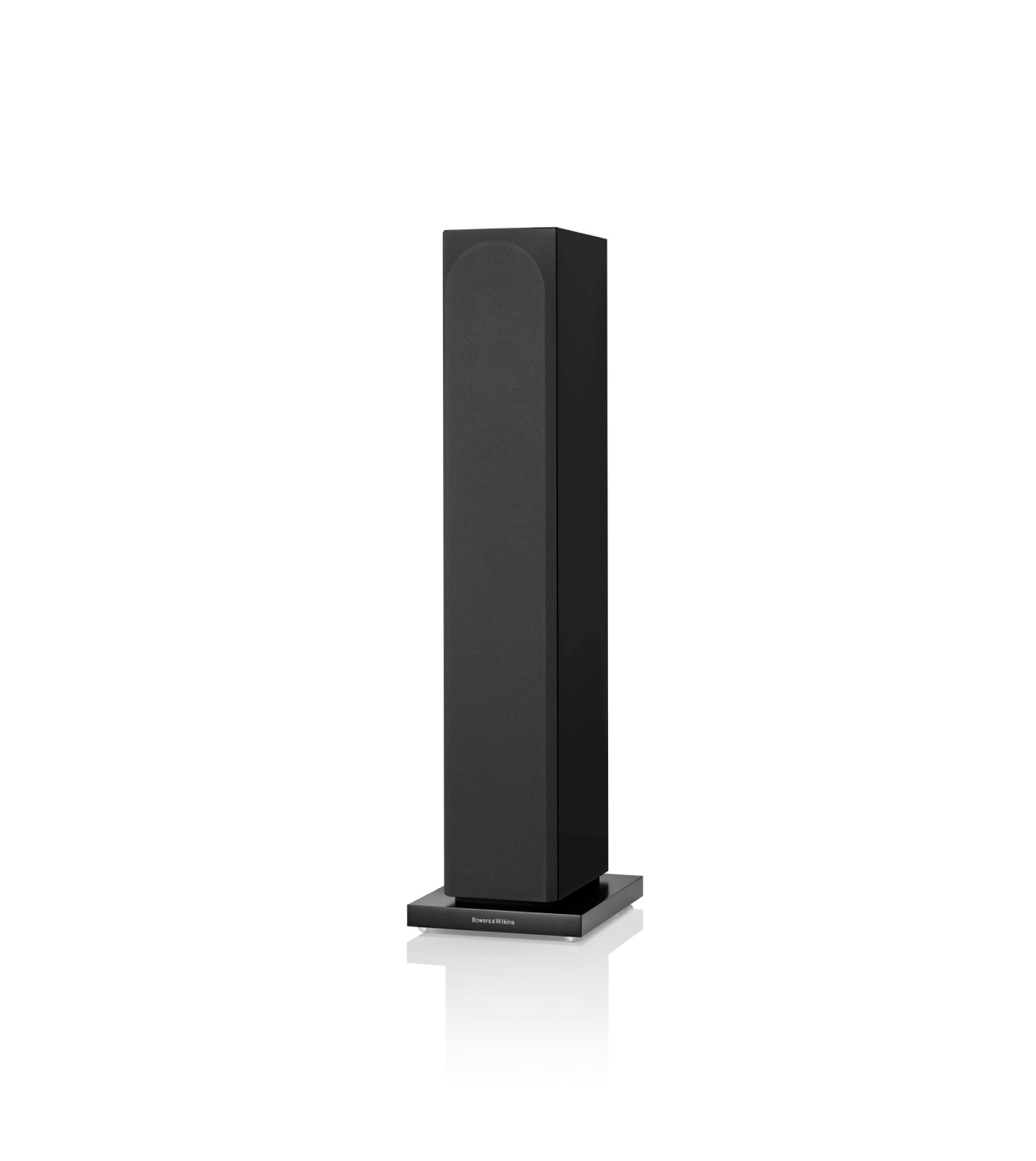

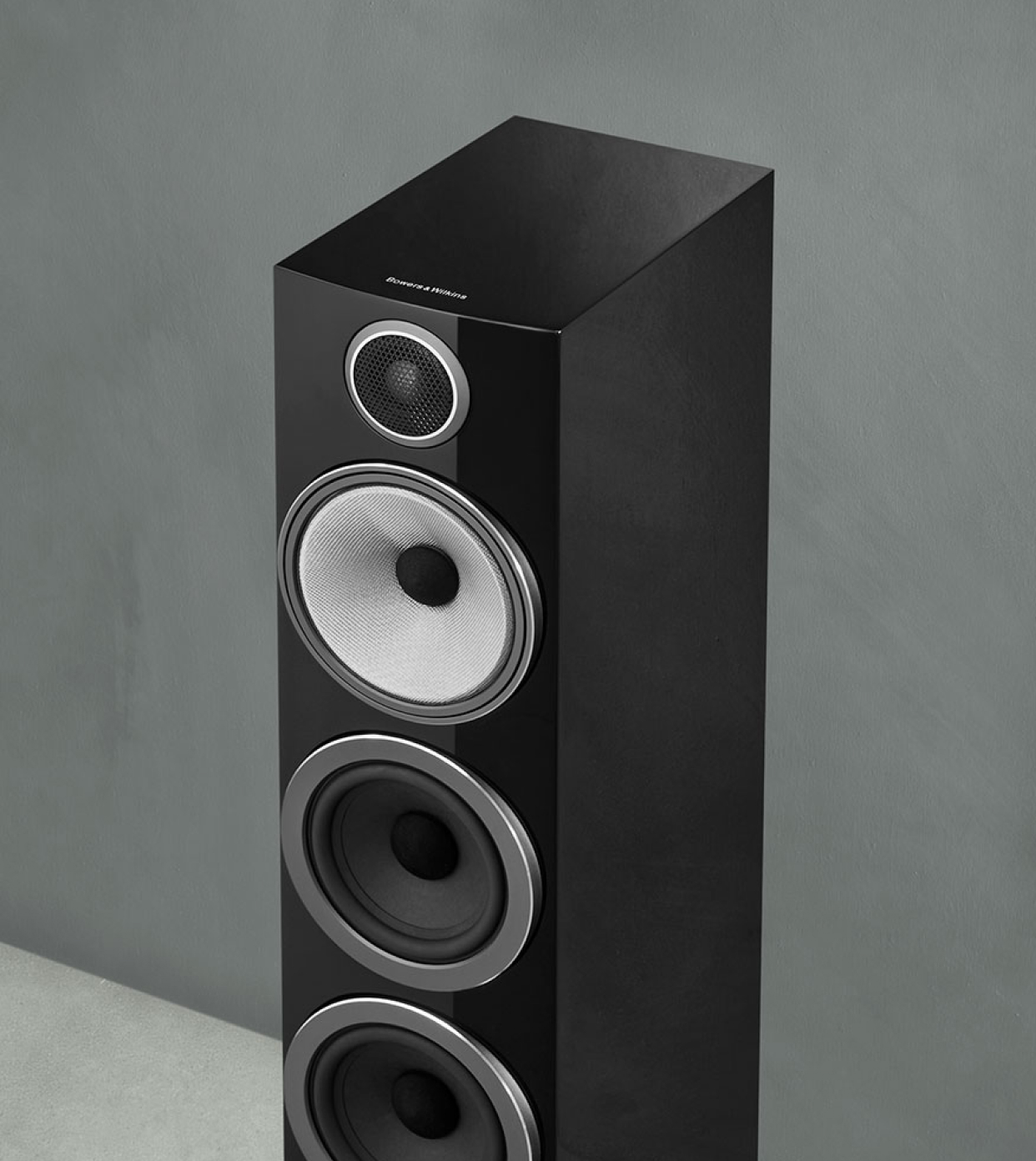

704 S3
The slimmest tower loudspeaker Bowers & Wilkins makes, 704 S3 still packs a mighty punch. Its twin Aerofoil Profile bass drivers ensure ample extension and scale, while its decoupled Continuum cone FST™ driver delivers crystal clear midrange performance.
Specifications
-
Size & weight
Dimensions Height: 925 mm (36.4 in) cabinet only
964 mm (38.0 in) including tweeter and plinth
Width: 165 mm (6.5 in) cabinet only
252 mm (9.9 in) including plinth
Depth: 263 mm (10.4 in) cabinet only
300 mm (11.8 in) including grille and terminals
321 mm (12.6 in) including plinthNet weight 20.53kg Technical details
Technical features Decoupled Carbon Dome tweeter
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™Description 3-way vented-box system Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange
2x ø130mm (5 in) Aerofoil profile bassFrequency range 43Hz and 33kHz Frequency response 48Hz - 28kHz ±3dB Sensitivity 88dB spl (2.83Vrms, 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 300Hz - 20kHzNominal impedance 8Ω (minimum 3.1Ω) Recommended amplifier power 30W - 150W into 8Ω on unclipped programme Max recommended cable impedance 0.1Ω Finishes
Cabinet finishes Gloss Black
Satin White
Mocha
Rosenut (APAC only)Grille finishes Black
Grey (Satin White only)
