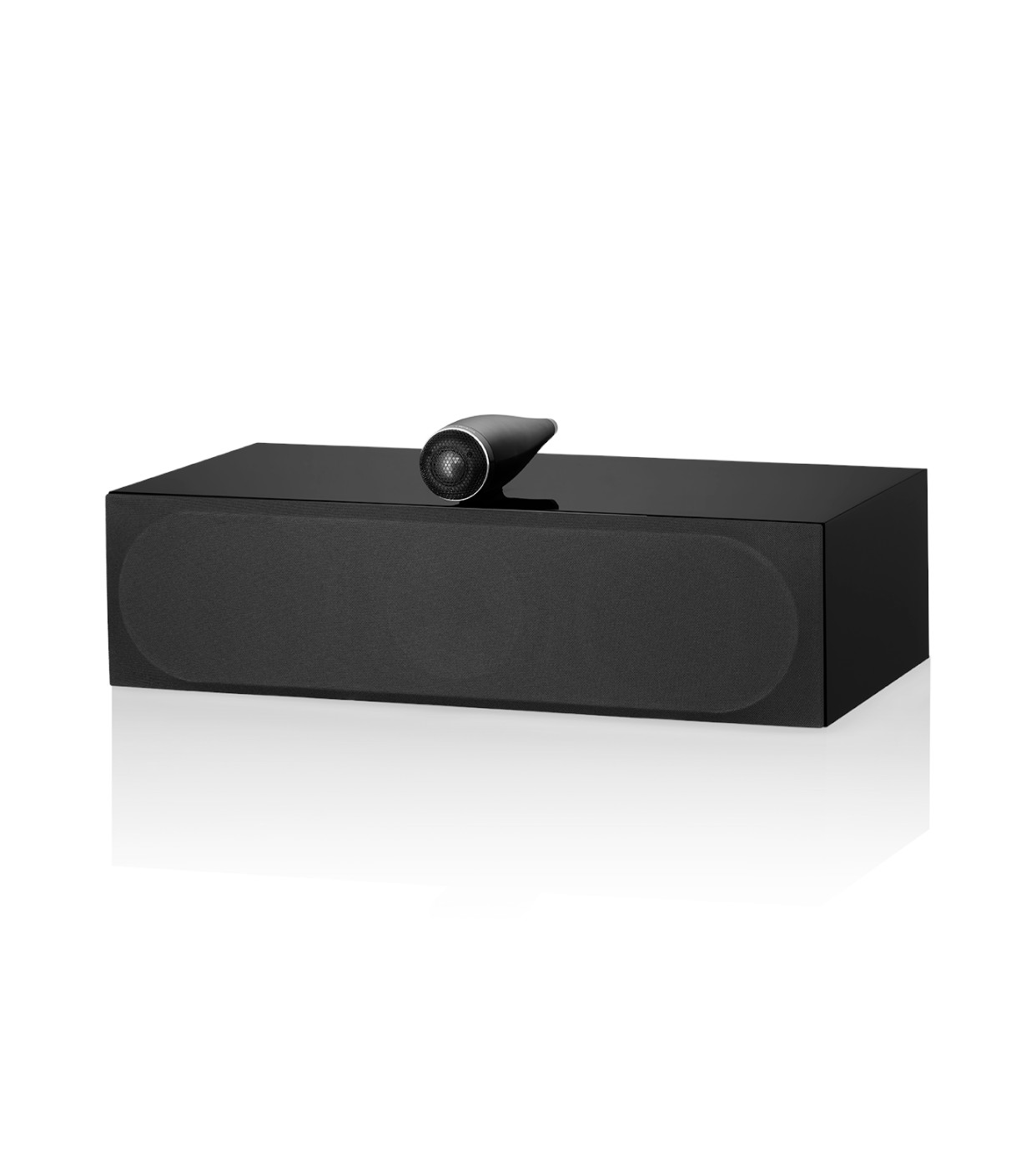

HTM71 S3
Our flagship center-channel speaker features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, a 130mm (5in) Continuum Cone FST™ midrange driver – particularly important for clarity with dialogue – and twin Aerofoil™ Profile bass cones. It’s the perfect partner for the 705 S3, 703 S3 and 702 S3.
Specifications
-
Size & weight
Dimensions Height: 165 mm (6.5 in) cabinet only
233 mm (9.2 in) including tweeter
Width: 628 mm (24.7 in) cabinet only
Depth: 318 mm (12.5 in) cabinet only
356 mm (14.0 in) including grille and terminalsNet weight 17.45kg (38.5 lb) Technical details
Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Aerofoil™ Profile bass cones
Flowport™Description 3-way vented-box system Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange
2x ø130mm (5 in) Aerofoil Profile bassFrequency range 45Hz and 33kHz Frequency response 50Hz - 28kHz ±3dB Sensitivity 89dB spl (2.83Vrms, 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHzNominal impedance 8Ω (minimum 3.1Ω) Recommended amplifier power 30W - 200W into 8Ω on unclipped programme Max recommended cable impedance 0.1Ω Finishes
Cabinet finishes Gloss Black
Satin White
MochaGrille finishes Black
Grey (Satin White only)
