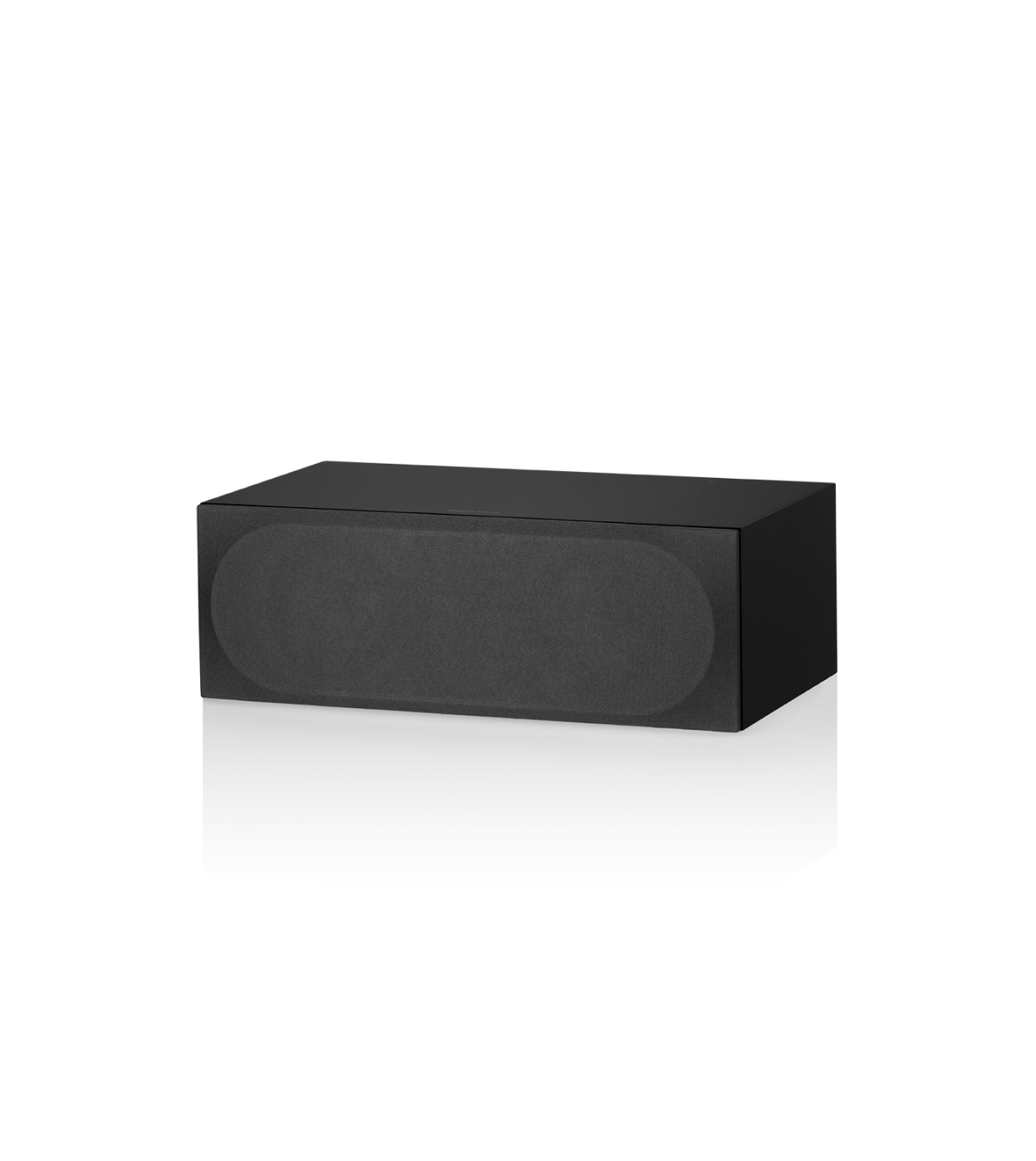

HTM72 S3
HTM72 S3 is the more compact center-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theater system based around the 704 S3, 706 S3 or 707 S3.
Specifications
-
Size & weight
Dimensions Height: 165 mm (6.5 in) cabinet only
Width: 477 mm (18.8 in) Cabinet only
Depth: 266 mm (10.5 in) Cabinet only
302 mm (11.9 in) including grille and terminalsNet weight 9.66kg (21.3 lb) Technical details
Technical features Decoupled Carbon Dome tweeter
Continuum™ cone bass / midrange
Flowport™Description 2-way vented-box system Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrangeFrequency range 48Hz and 33kHz Frequency response 70Hz - 28kHz ±3dB Sensitivity 87dB spl (2.83Vrms, 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 200Hz - 22kHzNominal impedance 8Ω (minimum 4.3Ω) Recommended amplifier power 30W - 120W into 8Ω on unclipped programme Max recommended cable impedance 0.1Ω Finishes
Cabinet finishes Gloss Black
Satin White
MochaGrille finishes Black
Grey (Satin White only)
