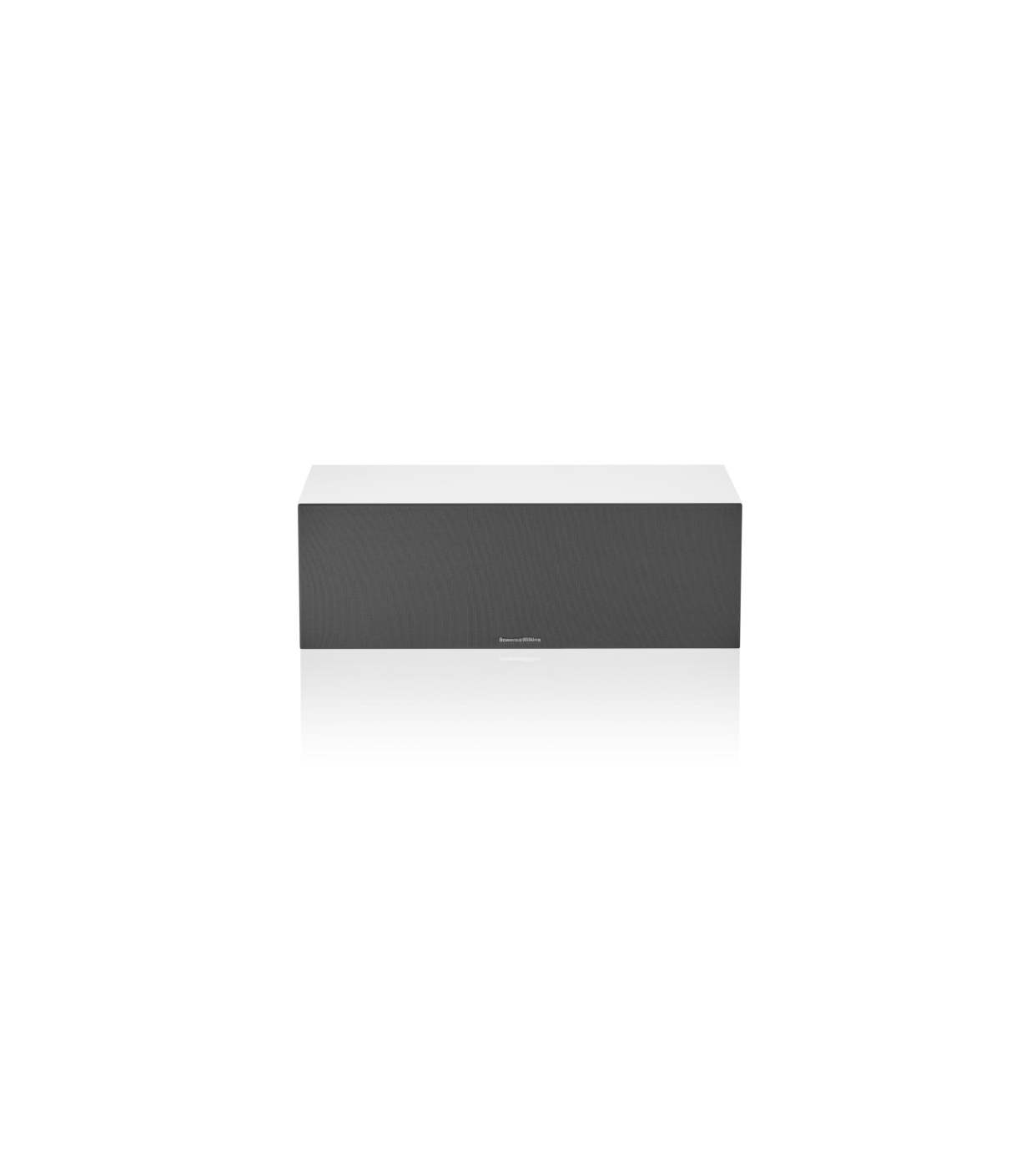

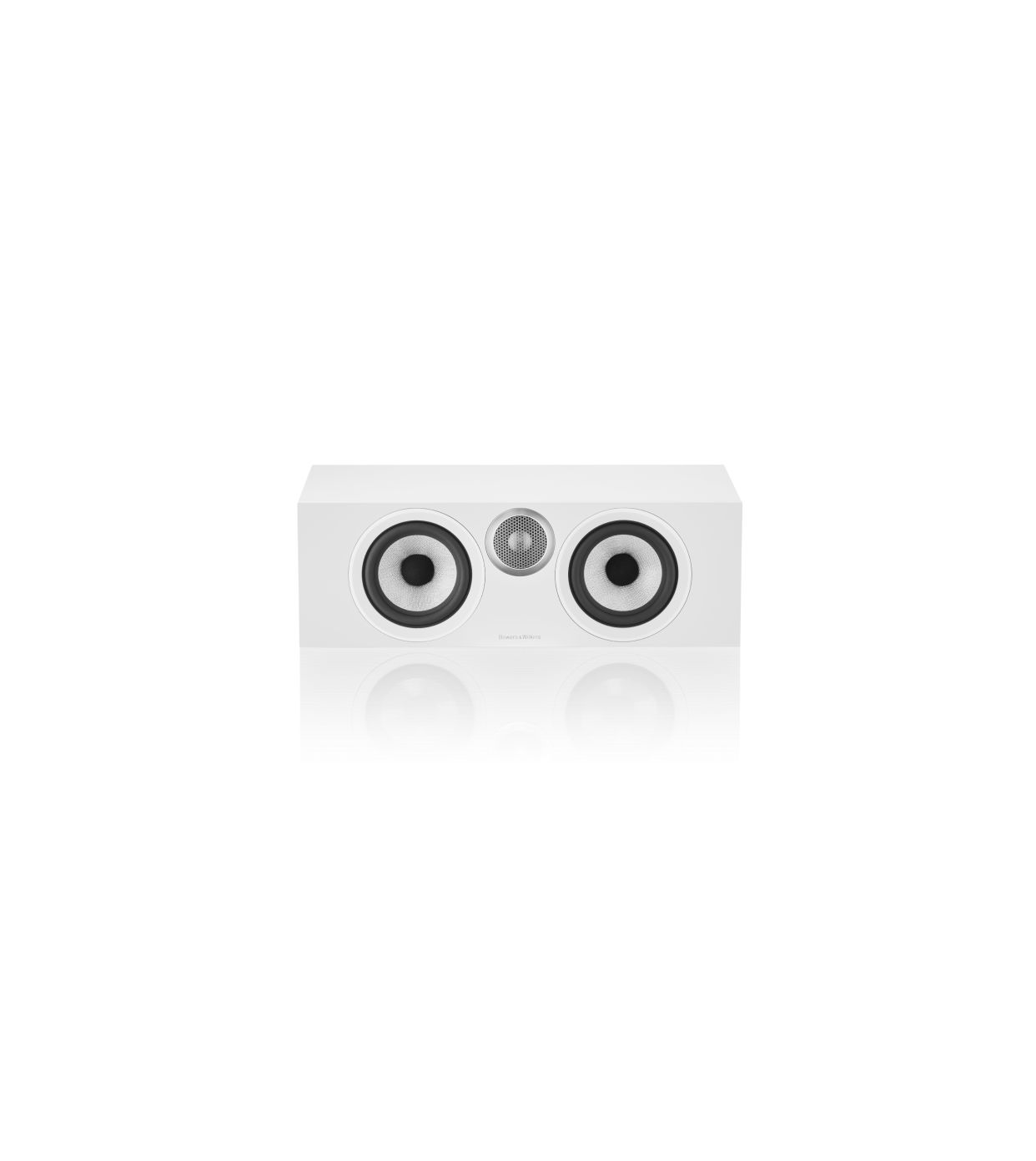

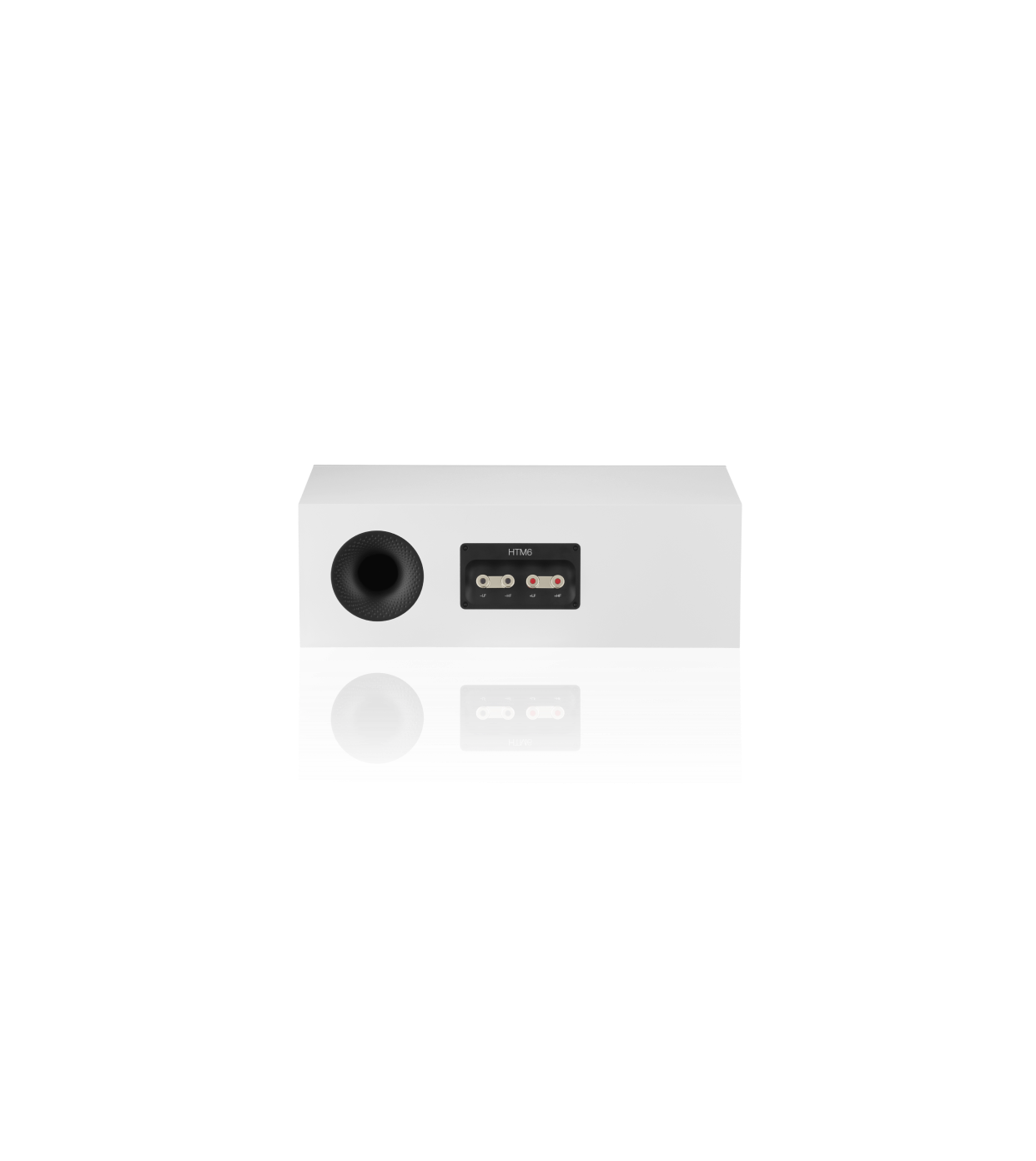

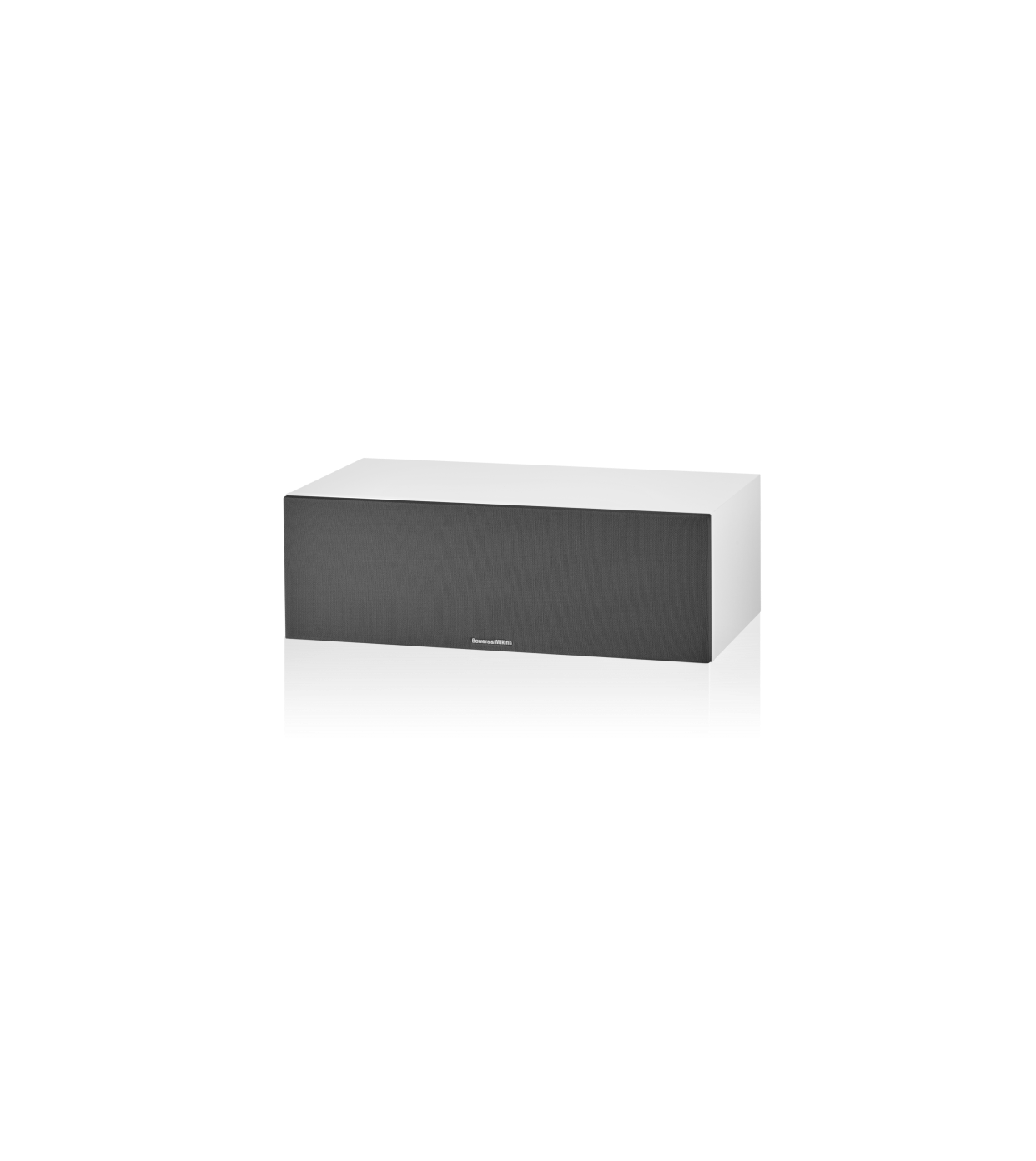

HTM6 S3
The HTM6 S3 is small enough to fit into convenient spaces in your home but mighty enough to partner with the 603 S3 tower speaker. It combines our all-new Titanium Dome™ tweeter with the powerful accuracy and transparency of twin Continuum™ bass/midrange cones. Celebrate clarity with the HTM6 S3 center channel speaker.
Specifications
-
Size & weight
Dimensions Height: 160 mm (6.3 in) Cabinet only
Width: 480 mm (18.9 in) Cabinet only
Depth: 255 mm (10 in) Cabinet only
283 mm (11.2 in) including grille and terminalsNet weight 7.7kg (17lb) Technical details
Technical features Decoupled Double Dome Titanium tweeter
Continuum™ cone bass / midrange
Flowport™Description 2-way vented-box system Drive units 1x ø25mm (1 in) Titanium Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrangeFrequency range -6dB 42Hz - 33kHz Frequency response 72Hz - 28kHz ±3dB Sensitivity 87dB spl (on axis at 2.83Vrms at 1m) Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz - 22kHz
<0.5% 120Hz - 12kHzNominal impedance 8Ω (minimum 4.3Ω) Recommended amplifier power 30W - 120W into 8Ω on unclipped programme Max recommended cable impedance 0.1Ω Finishes
Cabinet finishes Black
White
OakGrille finishes Black (Black)
Grey (White and Oak)
