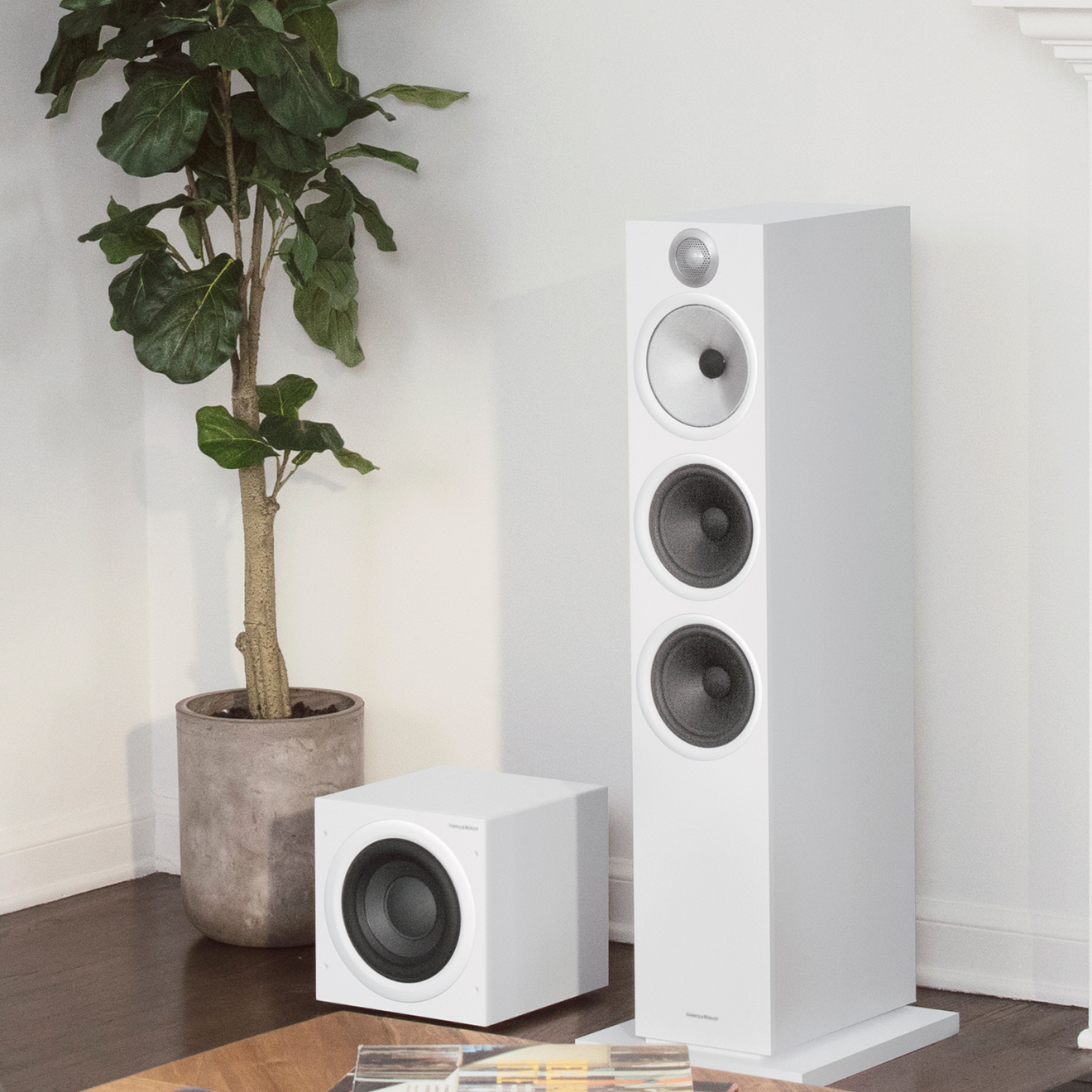

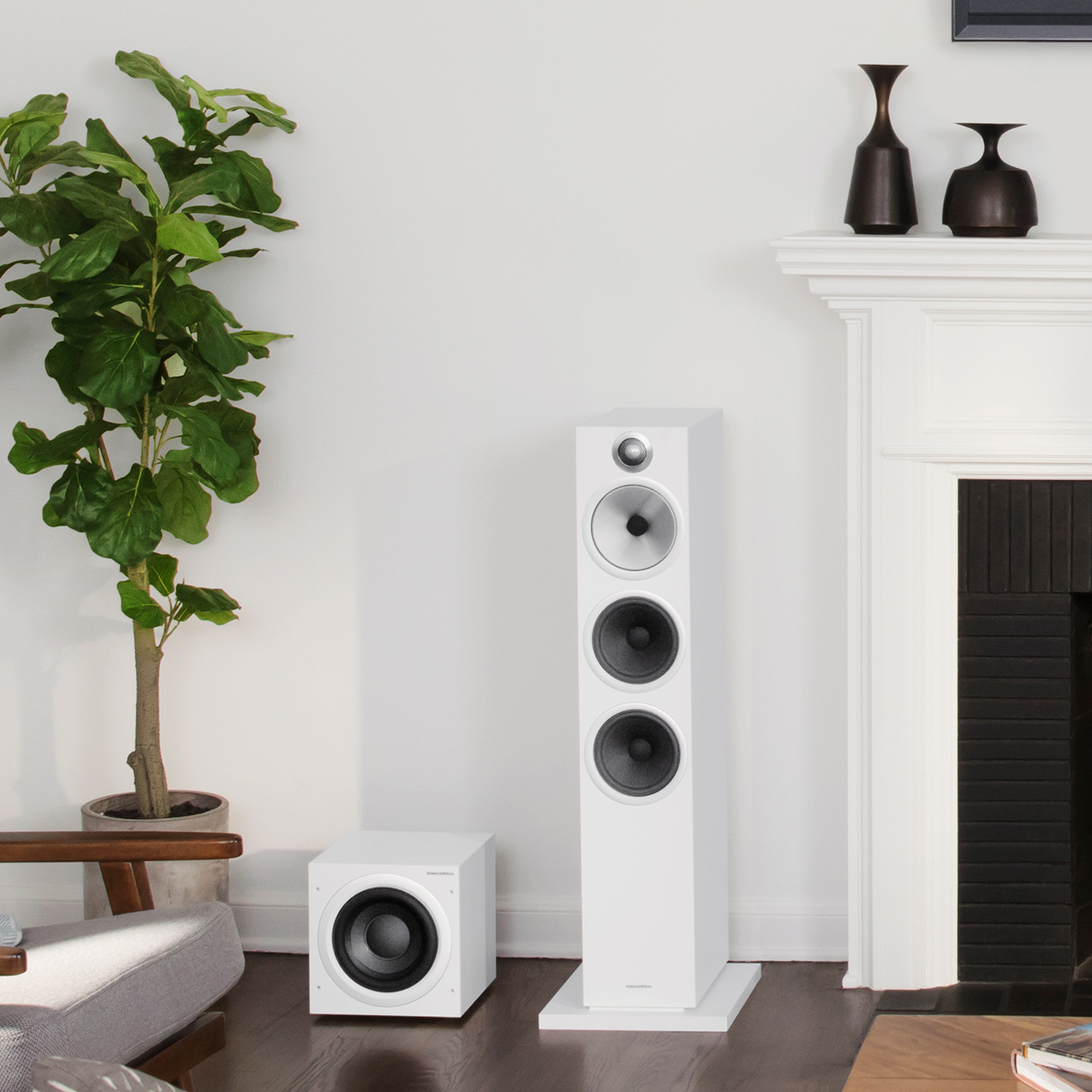

ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theatre system for larger rooms.
Tuned for powerful bass
A big driver isn't enough: ASW610XP's combines paper pulp, Aramid fibre and resin for stiffness and accuracy.
All the power you'll need
ASW610XP may be compact, but it packs a gutsy 500W Class D amplifier designed for punch and cool operation.
Technical specfications
Features
- Input level (line in)
- Input level (speaker in)
- Low-pass filter frequency (line in only)
- Low-pass filter bypass
- Bass extension
- Bass roll-off alignment
- Auto sense on / standby
- Phase switch
Description
Active closed-box subwoofer system
Drive unit
ø250mm (10 in) paper / Aramid fibre cone long-throw
Frequency range
-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)
Frequency response
±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)
Bass extension
- -6dB at 18Hz (position A)
- -6dB at 23Hz (position B)
- -6dB at 28Hz (position C)
Amplifier
Power output: 500W
Rated power consumption
98W / 1W standby
Input impedance
33kΩ
Signal / noise
>90dB
Inputs
- Line in (RCA Phono)
- Speaker in (Binding post)
- 12v trigger (3.5mm jack)
- Low-pass filter
- Active 4th-order, variable cut-off frequency
Dimensions
- Height: 325mm (12.8in) not including feet or spikes
- 337mm (13.3in) including feet
- 353mm (13.9in) including spikes
- Width: 325mm (12.8in)
- Depth: 348mm (13.68in) not including grilles
- 375mm (14.8in) including grilles and controls
Net weight
18.65kg (41.12 lb)
Cabinet finishes
- Black
- White
Grille finishes
- Black
- Grey
