For situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 800 Series Diamond and CI 700 Series models feature matching performance levels to their in-room counterparts in the 800 Series Diamond and 700 Series.

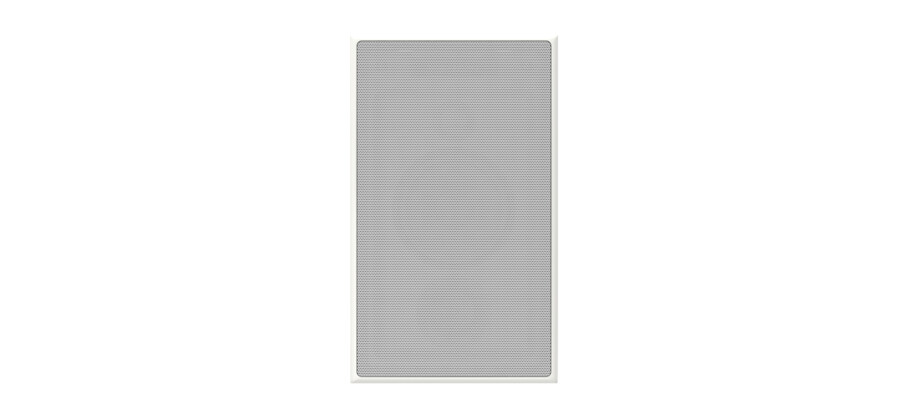

In-wall system with 706 S2 performance levels.
Technical Specifications
Technical features
- Carbon Dome tweeter
- Continuum mid/bass
- Flowport™
Description
2-way in-wall system
Drive units
1x ø25mm (1 in) Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone mid/bass
Frequency range (-6dB)
-6dB at 43Hz and 33kHz
Frequency Response -3dB
45Hz - 28kHz ±3dB
Sensitivity
86dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance
8Ω (minimum 3.8Ω)
Recommended amplifier power
25W - 150W into 8Ω on unclipped programme
Frame height
356mm (14in)
Frame width
212mm (8.5in)
Depth (behind surface)
102mm (4in)
Cut-out height
331mm (13in)
Cut-out width
187mm (7.4in)
Cut-out height w/PMK
336mm (13.2in)
Cut-out width w/PMK
192mm (7.6in)
Reservoir box height
385mm (15.2in)
Reservoir box width
181mm (7.1in)
Protrusion
8mm (0.32in)
PMK
7.5W
Net weight
3.8kg (8.38 lb)
Finishes
- Back box: White
- Grille: White
