Overall
Total Pieces 1
Included Accessories • (1) Wall Mounting Template
• (1) Paint Mask
• (1) Paintable Grille
• (1) Self Adhering Foam Gasket
Optional Accessories • (1) Rough-in Kit RBRL - Pre-Construction Bracket - Sold Separate
Cabinet Warranty 5 years
Drivers Warranty 5 years
Original Purchaser Only Yes
Carton 1 35" (88.9 cm) h x 11" (27.94 cm) w x 9" (22.86 cm) d - 19 lbs (8.62 kg)

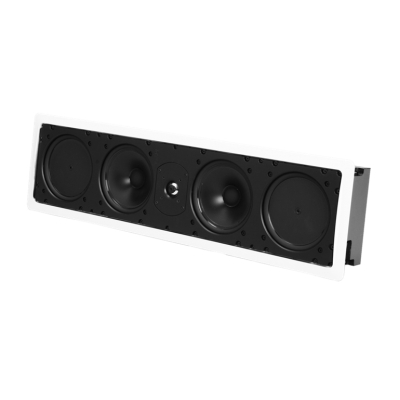

IN-WALL AND IN-CEILING
Qty Included 1
Availability US
Orientation Vertical
Driver Complement • (1) 1" (2.54 cm) d (Round) - Tweeter
• (2) 6.5" (16.51 cm) d (Round) - Mid/Woofer
• (2) 6.5" (16.51 cm) d (Round) - Bass Radiator
Depth 3.81" (9.68 cm)
Grille Dimensions 29.75" (75.57 cm) h x 8.13" (20.65 cm) w
Peak Power Handling 350 watts
A/V Receiver Crossover Settings Small (40 Hz)
Audio Inputs
Speaker Inputs (1) Pair of Heavy Duty, Spring Loaded - Gold Plated
Total Frequency Response 22 Hz → 30,000 Hz
Nominal Impedance 8 ohms
Max Sensitivity (1 watt @ 1 meter) 92 dB
Shape Rectangle
Dimensions 28.5" (72.39 cm) h x 7" (17.78 cm) w
