Overall
Total Pieces 1
Included Accessories • (1) Wall Mounting Template
• (1) Paint Mask
• (1) Paintable Grille
• (1) Self Adhering Foam Gasket
Cabinet Warranty 5 years
Drivers Warranty 5 years
Original Purchaser Only Yes
Carton 1 30" (76.2 cm) h x 9.5" (24.13 cm) w x 9" (22.86 cm) d - 16 lbs (7.26 kg)

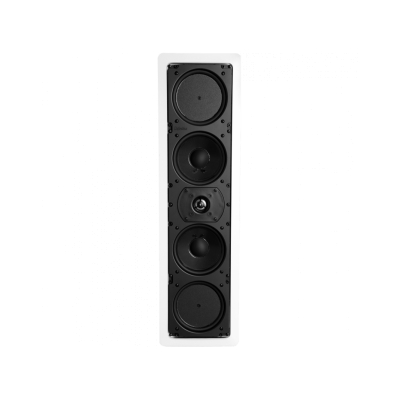

IN-WALL SPEAKER
Qty Included 1
Availability US
Driver Complement • (1) 1" (2.54 cm) d (Round) - Tweeter
• (2) 5.25" (13.34 cm) d (Round) - Mid/Woofer
• (2) 5.25" (13.34 cm) d (Round) - Bass Radiator
Weight 14.5 lbs (6.58 kg)
Shape Rectangle
Dimensions 23.75" (60.33 cm) h x 5.88" (14.94 cm) w
Clearance Required for Mounting Dogs (add to each side of cutout) 0.88" (2.24 cm)
Audio Inputs
Speaker Inputs (1) Pair of Heavy Duty, Spring Loaded - Gold-Plated
Total Frequency Response 24 Hz → 30,000 Hz
Nominal Impedance 8 ohms
Max Sensitivity (1 watt @ 1 meter) 92 dB
A/V Receiver Crossover Settings Small (40 Hz)
