Overall
Total Pieces 1
Included Accessories • (1) Wall Mounting Template
• (1) Paint Mask
• (1) Paintable Grille
• (1) Self Adhering Foam Gasket
Cabinet Warranty 5 years
Drivers Warranty 5 years
Carton 1 13.5" (34.29 cm) h x 13.5" (34.29 cm) w x 7.25" (18.42 cm) d - 9 lbs (4.08 kg)

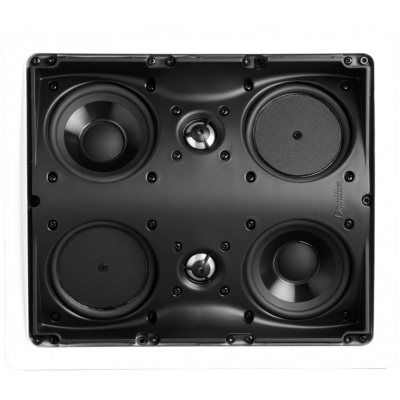

IN-WALL SPEAKER
Qty Included 1
Availability US
Driver Complement • (2) 1" (2.54 cm) d (Round) - Tweeter
• (2) 3.5" (8.89 cm) d (Round) - Mid/Woofer
• (2) 3.5" (8.89 cm) d (Round) - Bass Radiator
Grille Dimensions 11" (27.94 cm) h x 9.44" (23.98 cm) w
Shape Rectangle
Dimensions 9.88" (25.1 cm) h x 8.31" (21.11 cm) w
Shape Rectangle
Dimensions 9.88" (25.1 cm) h x 8.31" (21.11 cm) w
Audio Inputs
Speaker Inputs (1) Pair of Heavy Duty, Spring Loaded
Total Frequency Response 40 Hz → 30,000 Hz
Nominal Impedance Range 8 ohms → 4 ohms
Max Sensitivity (1 watt @ 1 meter) 92 dB
A/V Receiver Crossover Settings Small (120 Hz)
Recommended Amplifier Power Per Channel 10 watts → 300 watts
