TECHNICAL SPECIFICATIONS
General
| Unit (W x H x D mm) | 434 x 135 x 384 |
| Cabinet Size | 434 x 135 x 374 |
| Net weight | 9.0kg |
| Packaging Dimensions (W x H x D mm) | 543 x 250 x 515 |
| Packaging gross weight | 11.7kg |
| Power Consumption | 24W |
| at Standby | 0.1W |
| Front (Center) Panel | Aluminum |
| Function button | Aluminum |
| Open / Close button | Aluminum |
| Power button | Aluminum |
Specifications
| Frequency Response | SACD:2Hz - 50kHz (-3dB) CD:2Hz - 20kHz (-0.5dB) |
| Harmonic distortion | SACD: 0.0010% CD: 0.0016% |
| S/N | SACD: 119dB CD: 117dB |
| Dynamic Range | SACD: 112dB CD: 101dB |
| Line Output Level | 2.0Vrms (10kohm) |
Digital Audio
| DAC Circuit | TI Advanced Current Segment PCM1795(192k/32bit) ×1 |
| Digital Filter | Fixed |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Master Clock Design (Not Support Network Playback) | Yes |
Disc
| Mechanism | TD-505 FOR DM |
| Disc Type | SACD/CD/CD-R/CD-RW DVD-R/+R/-RW/+RW |
| SACD | Yes (Stereo Layer/Multi-D/M) |
| SUPER AUDIO CD TEXT | Yes |
| Playability of files recorded on CD-R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF | Yes / Yes / Yes / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) |
| Playability of files recorded on DVD R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF / DSD (DIFF / DSF) | Yes / Yes / Yes / Yes (~192kHz/24bit) / Yes (~192kHz/24bit) / Yes (~96kHz/24bit) / Yes (~196kHz/24bit) / Yes(~5.6MHz) |
| Firmware Update | Yes(FE/BE, MCU) |

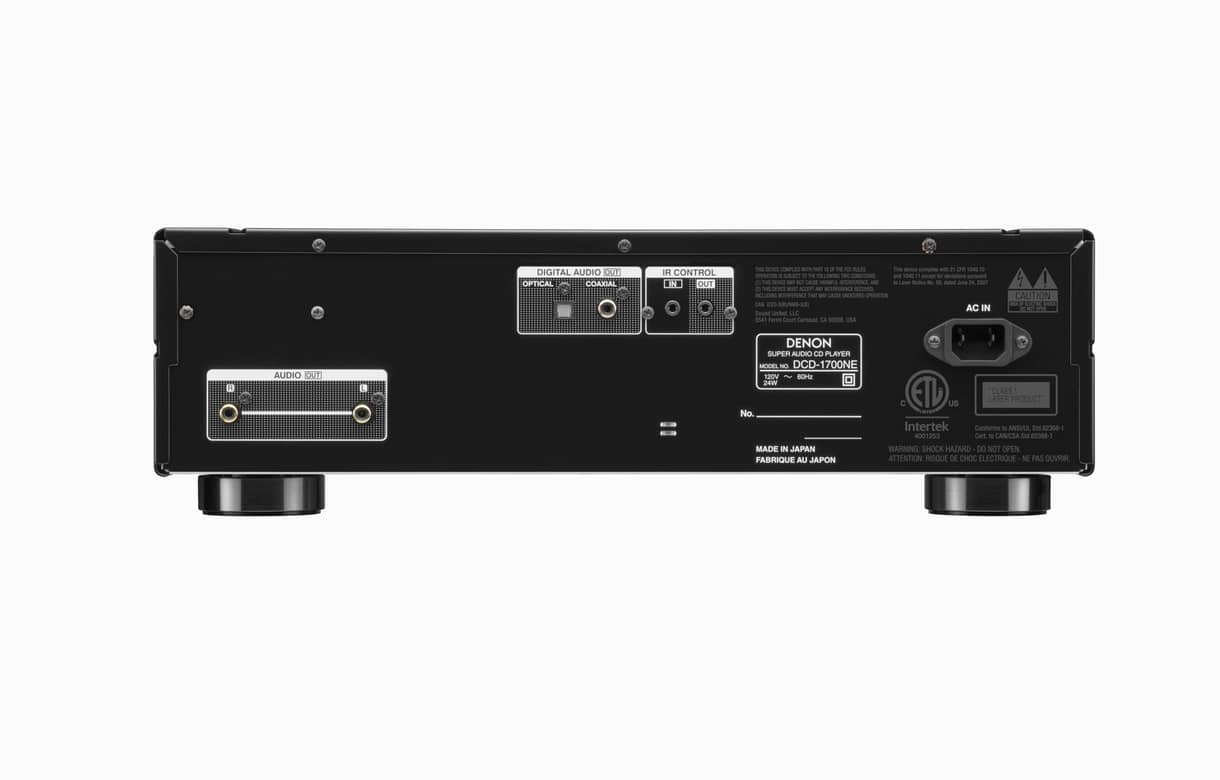

Inputs/Outputs
| Fixed Analog Output (RCA) | Cinch x 1 (Gold Plated) |
| Optical input / output (Maximum Support) | 0 / 1 |
| Coaxial input / output (Maximum Support) | 0 / 1 |

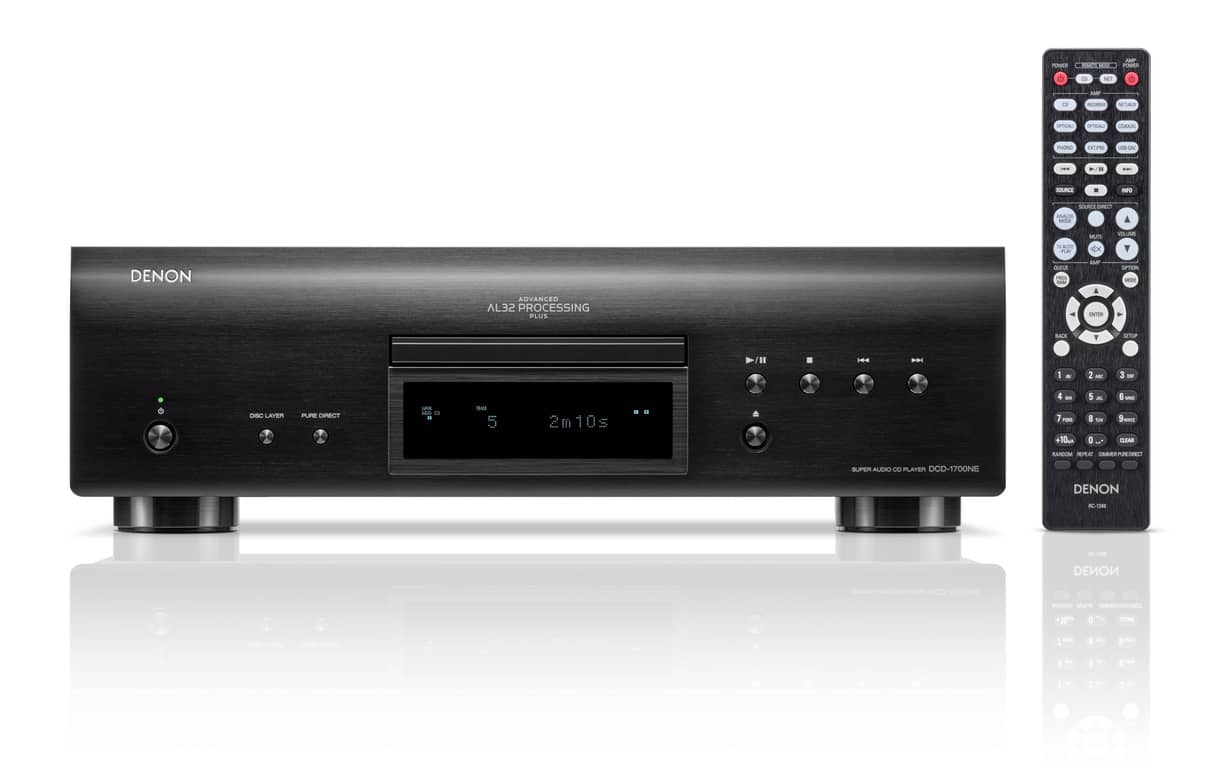

Controls
| Remote Controller | System Remote (Amp and CD Player Control) |
| On-Product Buttons | Power Disc Layer Pure Direct Play/Pause Stop Fwd/Rev Open/Close |
| LED | POWER: 1 Green |
| Front Panel Display | Single Line |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
Other
| Pure Direct Mode | Yes |
| Last Function Memory | Yes |
| Remote Control Bus Terminal | Yes |
| Remote Control | Yes (controllable PMA-1700NE) |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
| Other | Stereo RCA Cable x1 |
| Timer Play (Need external audio timer) | Yes |
| Auto Standby Mode | Yes |
