CARACTERÍSTICAS GENERALES
Type2-way bookshelf loudspeaker
Low Frequency Driver5.25" (133mm) Pure Pulp cone woofer (JW135PW-4)
High Frequency Driver0.75” (20mm) Titanium dome tweeter (JT020TI1-4) with waveguide
Recommended Amplifier Power10 - 75 WRMS
Impedance4 Ohm
Loudspeaker Sensitivity85 dB/2.83Vm
Frequency Response47 Hz - 24 kHz (-6 dB)
Crossover Frequency2.8 kHz
EnclosureFront-ported bookshelf in satin walnut furniture-grade wood veneer

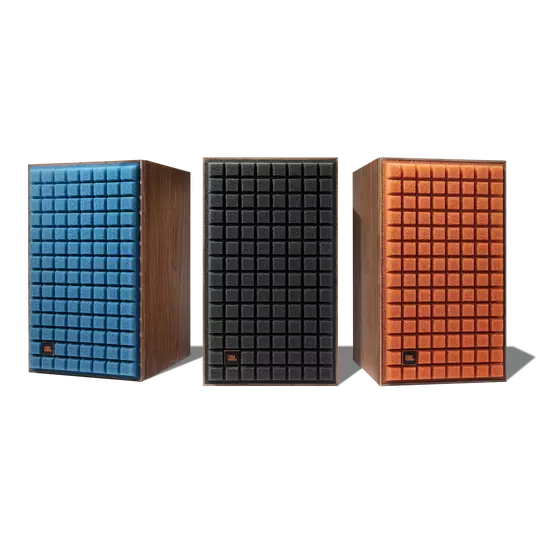

GrilleFoam Quadrex grille available in three colors
Dimensions with grille13" H x 7.74" W x 8.51" D (330.2mm x 196.6mm x 216.2mm)
ControlsHF level control
Input TypeGold-plated binding posts
Product Weight (Each)11 lbs. (5.0 kg)
Shipping Weight30.4 lbs. (13.8 kg)
Shipping Units of MeasureMirror-imaged stereo pair
Warranty5 Years
Recommended stand height24” (609 mm)
Wall bracket insert/spacingM6 x 1.0 thread, 12mm max screw length / spaced 2.64” (67mm) center-to-center
CARACTERÍSTICAS AUDIO
Type2-way bookshelf loudspeaker
EnclosureFront-ported bookshelf in satin walnut furniture-grade wood veneer
GrilleFoam Quadrex grille available in three colors
Dimensions with grille13" H x 7.74" W x 8.51" D (330.2mm x 196.6mm x 216.2mm)
ControlsHF level control
Input TypeGold-plated binding posts
Product Weight (Each)11 lbs. (5.0 kg)
Shipping Weight30.4 lbs. (13.8 kg)
Shipping Units of MeasureMirror-imaged stereo pair
Warranty5 Years
Recommended stand height24” (609 mm)
Wall bracket insert/spacingM6 x 1.0 thread, 12mm max screw length / spaced 2.64” (67mm) center-to-center
