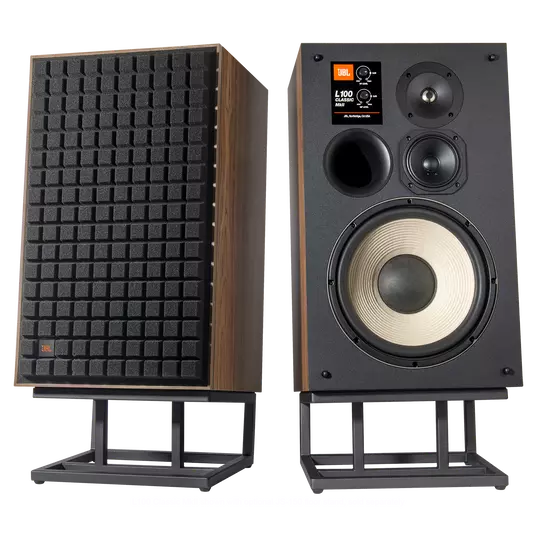

L100 CLASSIC MKII
12-inch (300mm) 3-way Bookshelf Loudspeaker
The L100 Classic MkII is the next evolution in the reborn legend that is the JBL Classic Series. This 12-inch (300mm) 3-way bookshelf loudspeaker features upgraded JBL acoustic components to improve the sound quality of this Classic loudspeaker. In addition to performance enhancements to the woofer, midrange, and tweeter the L100 Classic MkII features a revised crossover network to include bi-wire/bi-amp capabilities via a premium terminal cup with dual sets of gold-plated binding posts. The L100 Classic MkII features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue. Beneath this compelling exterior lie modern acoustic components that deliver stunning sound and imaging sure to please any music lover.
PRODUCT DESCRIPTION
L100 Classic MkII
The L100 Classic MkII is the next evolution in the reborn legend that is the JBL Classic Series. This 12-inch (300mm) 3-way bookshelf loudspeaker features upgraded JBL acoustic components to improve the sound quality of this Classic loudspeaker. In addition to performance enhancements to the woofer, midrange, and tweeter the L100 Classic MkII features a revised crossover network to include bi-wire/bi-amp capabilities via a premium terminal cup with dual sets of gold-plated binding posts. The L100 Classic MkII features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue. Beneath this compelling exterior lie modern acoustic components that deliver stunning sound and imaging sure to please any music lover.
GENERAL SPECIFICATIONS
Speaker Type12-inch (300mm) 3-way Bookshelf Loudspeaker
Low Frequency Driver12-inch (300mm) cast-frame Pure Pulp cone woofer with Dual Spider (JW300SW-8)
Mid Frequency Driver5.25-inch (130mm) Polymer-coated Pure Pulp cone (JM125PC-8)
High Frequency Driver1-inch (25 mm) Titanium dome tweeter mated to acoustic lens and waveguide (JT025Ti2-4)
Recommended Amplifier Power25-200 Watts RMS
Impedance4 ohms
Sensitivity (2.83V/1m)90dB
Frequency Response40Hz-40kHz (-6dB)
Crossover Frequencies450Hz, 3.5kHz
FinishNatural Walnut veneer with Black, Orange, or Blue Quadrex Foam Grille
Dimensions With Grille (HxWxD)25.3-inch x 15.4-inch x 14.4-inch
ControlsAttenuators for MF and HF level control
Connector TypeDual sets of Gold-plated Binding Posts
Product Weight ea63 lb (28.6 kg) each
Shipping Weight ea73 lb (33.1 kg) each
Shipping Units of MeasureSingle Speaker
Recommended Stand Height7in (180mm)
Recommended StandJBL JS-120 or JS-150 (Sold Separately)
|
