STUDIO 680

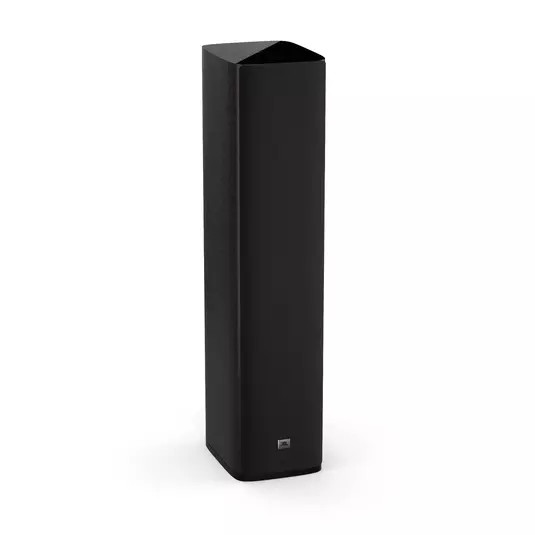

The JBL Studio 680 is a high-performance floorstanding speaker that utilizes JBL’s 2414H-1 25mm compression driver mated to a High-Definition Imaging speaker complemented by two 165mm PolyPlas cone drivers. The sleek cabinet design includes a magnetically mounted grille and brings an element of sophistication to any room. The Studio 6 Series delivers great dynamics, detailed sound and powerful bass for high-fidelity listening enjoyment.
General Specifications
Dual 6.5", 2.5-way compression driver floor standing loudspeaker
Dual 6.5" (165mm) PolyPlas Low-Frequency Woofer
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
Recommended Amplifier Power
Max 200W
Frequency Response
38Hz – 40kHz
Sensitivity
88dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
600 Hz, 1.8 kHz
Enclosure Type
Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)
230 x 300 x 1005mm
