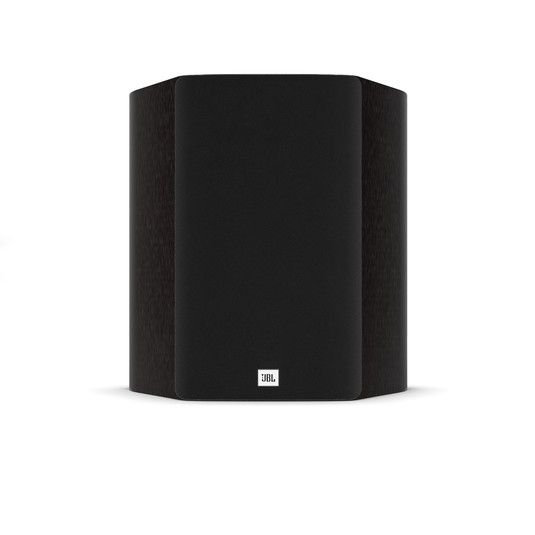

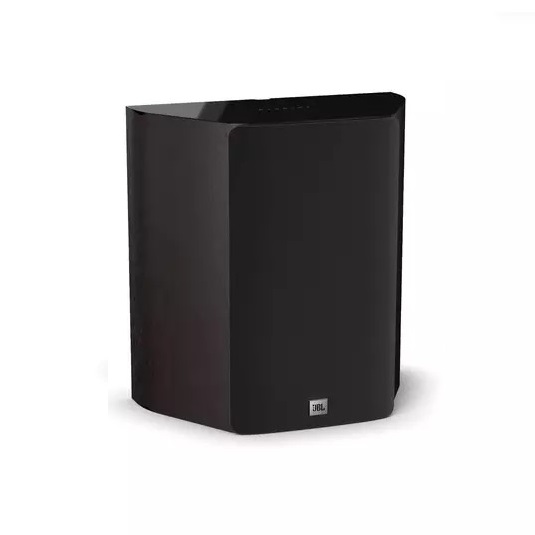

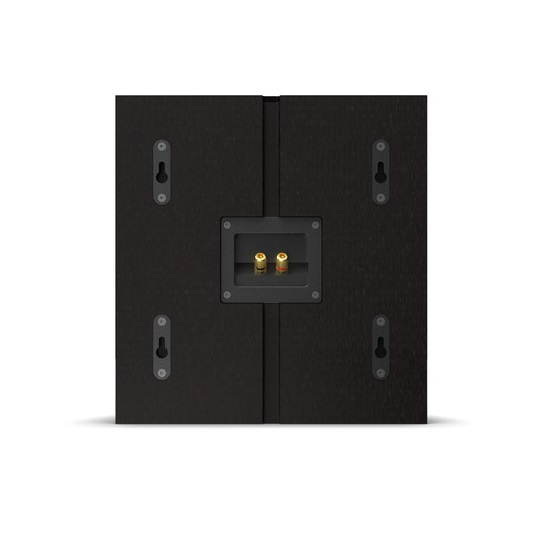

Studio 610
The JBL Studio 610 is a high-performance on-wall loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
General Specifications
Single 5.25", 2-way compression driver wall mountable surround loudspeaker
5.25" (133mm) PolyPlas Low-Frequency Woofer
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
Recommended Amplifier Power
Max 100W
Frequency Response
65Hz – 40kHz
Sensitivity
84dB @ 1M, 2.83V
Nominal Impedance
6 Ohms
Crossover Frequencies
2.4 kHz
Enclosure Type
Sealed Enclosure
Dimensions (W x D x H)
250 x 135 x 300mm.
