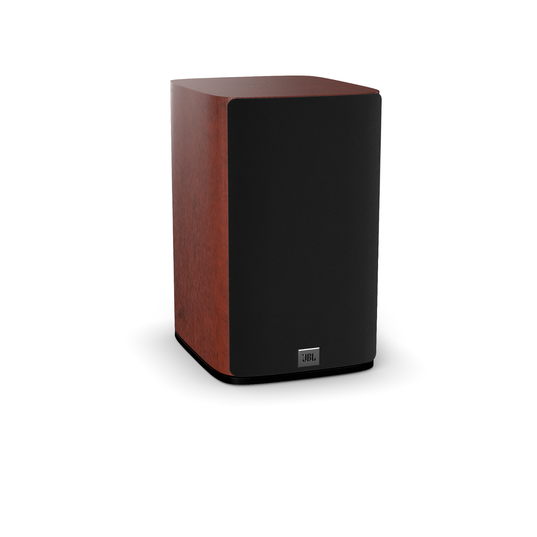

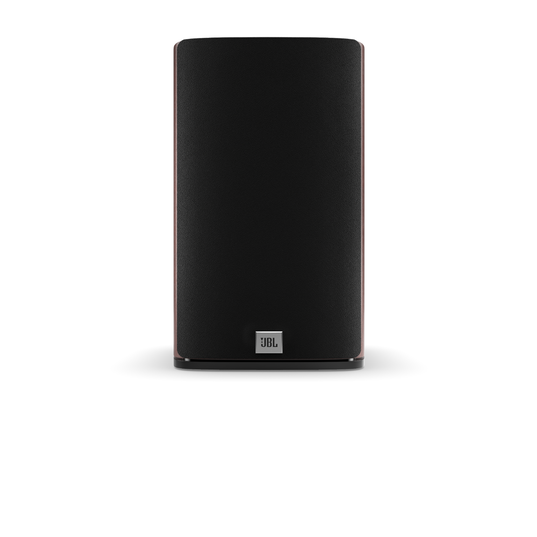

STUDIO 630
The JBL Studio 630 is a high-performance bookshelf loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6.5-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
GENERAL SPECIFICATIONS
Single 6.5", 2-way compression driver bookshelf loudspeaker Yes
6.5" (165mm) PolyPlas Low-Frequency Woofer Yes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Yes
Recommended Amplifier Power Max 150W
Frequency Response 45Hz – 40kHz
Sensitivity 85dB @ 1M, 2.83V
Nominal Impedance 6 Ohms
Crossover Frequencies 1.9 kHz

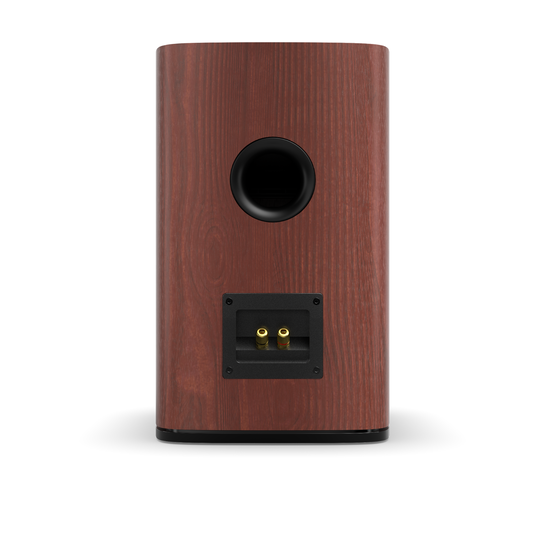

Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H) 230 x 280 x 372mm
