STUDIO 660P

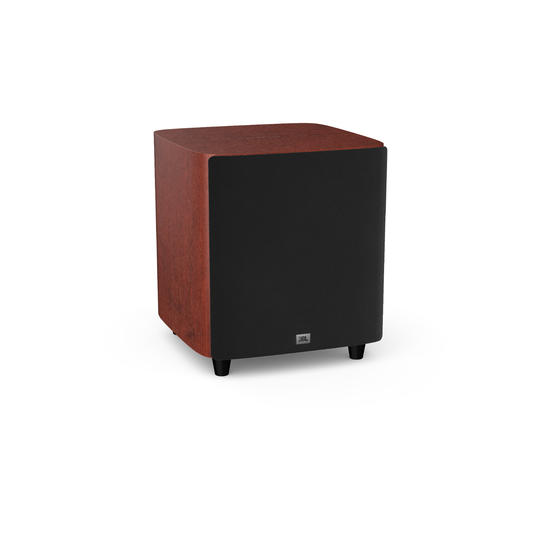

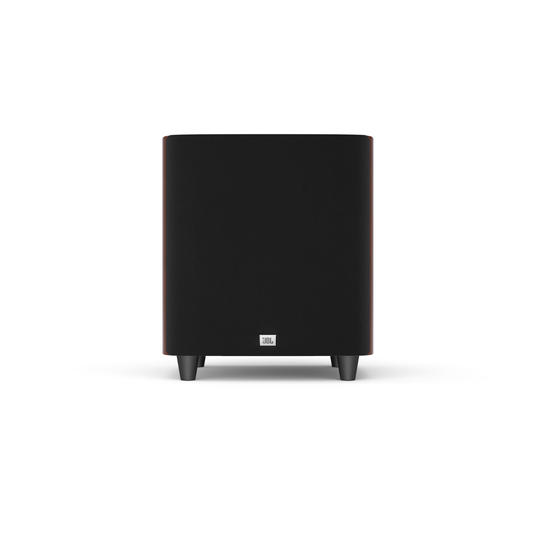

The JBL Studio 660P is a high-performance powered subwoofer utilizing a front-firing 12-inch PolyPlas cone woofer with dual down-firing tuned ports. A 500Wrms amplifier provides the sonic impact and a full complement of inputs and controls make for easy system integration. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
GENERAL SPECIFICATIONS
12" Powered sub-woofer system with 1000W amplifier Yes
12" (305mm) PolyPlas Low-Frequency Woofer Yes
Power 500W RMS (1000W Dynamic)
Frequency Response 28 Hz - 150 Hz
Crossover Frequencies 50Hz – 150Hz (variable) 24dB/octave
Controls Auto Power, Crossover, Level, Phase
Input One (1) Line-Level LFE Input
Enclosure Type Bass-Reflex via Bottom-Firing Tuned Port
Power Requirement 120V, 60Hz (US) ; 220V-230V, 50/60Hz (EU)
Power Consumption (Idle/Full/Power) <0.5W (standby)/700W/4A (max – 230V)/700W/7.2A (max – 120V)
Dimensions (W x D x H) 420 x 420 x 420mm
