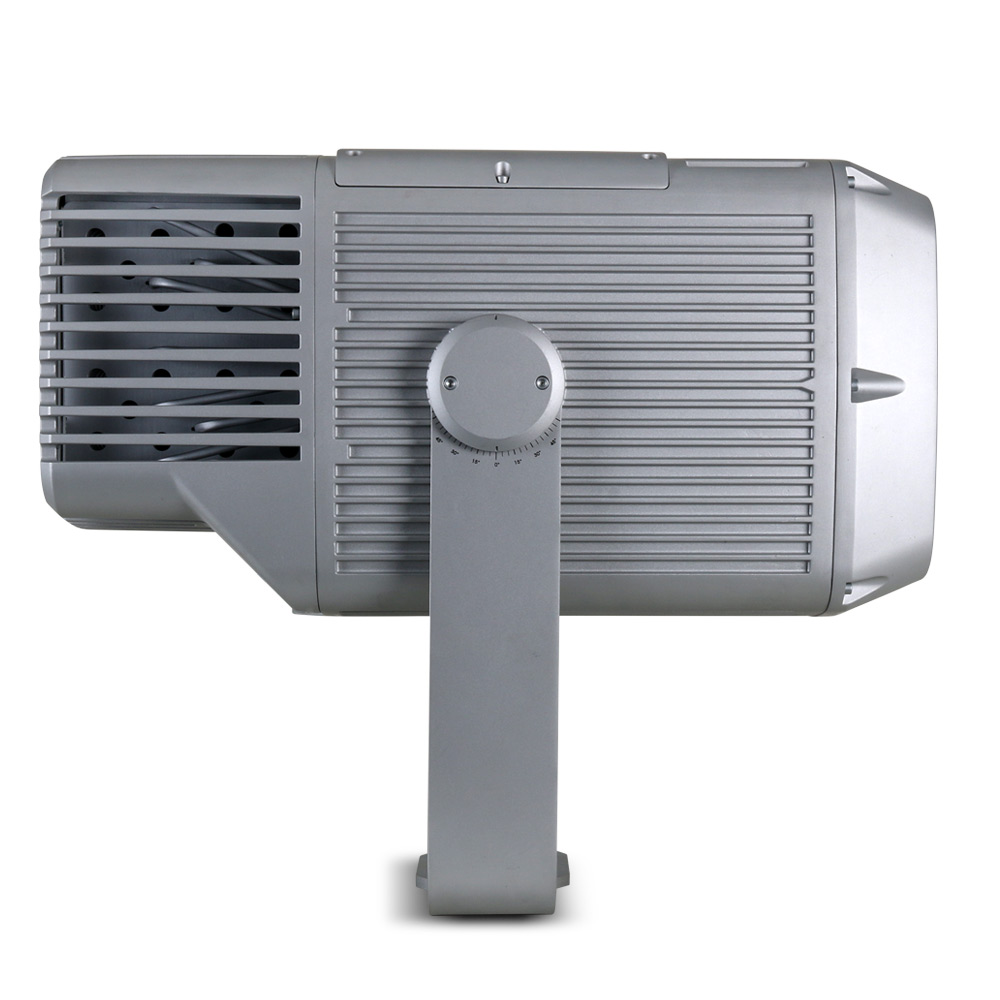

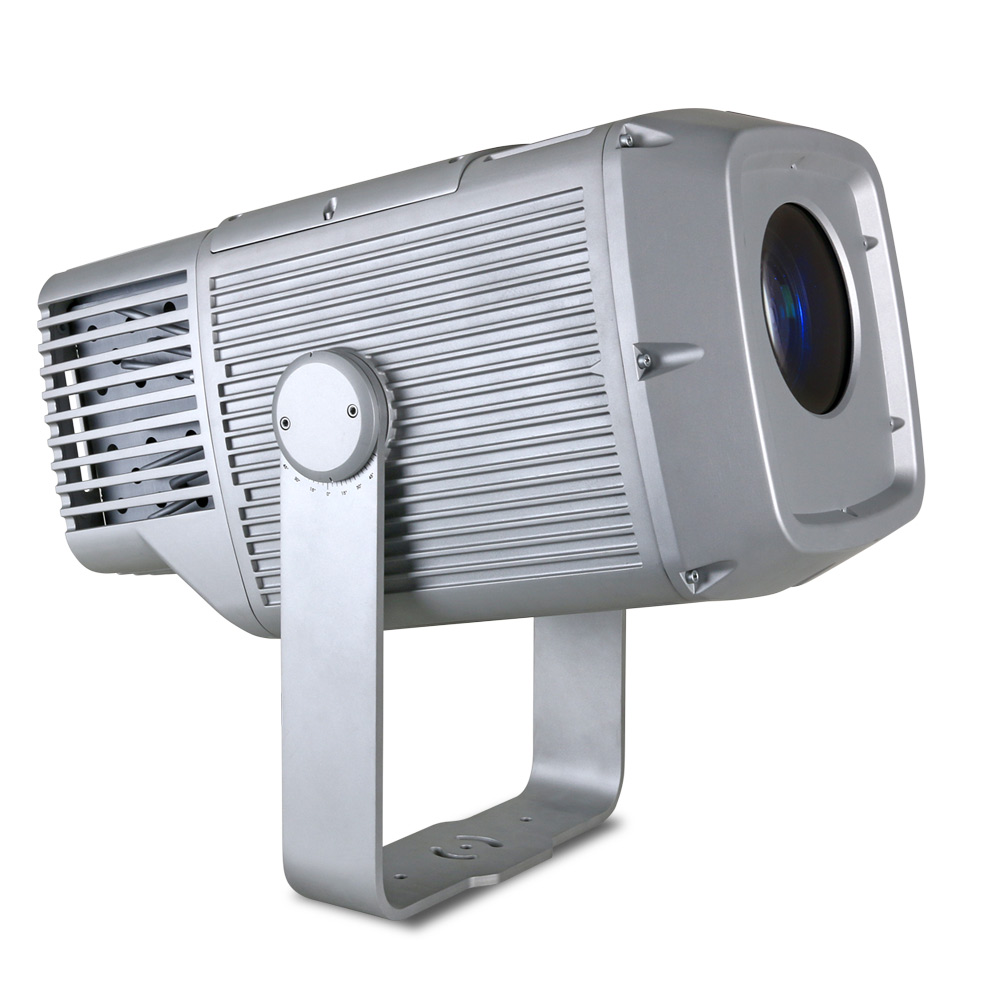

FEATURES
- Flat field, high contrast image projection based on high power LED engine
- 0-100% electronic dimming
- Full CMY color mixing + additional color wheel with 7 interchangeable colors
- 7 gobo slots for projecting graphic images (gobos included)
- Animation system for creating animated lighting effects (horizontal and vertical)
- Zoom range from 10° - 44° for exact projection on desired surface
- Variable frost for creating morphing effects and hybrid function as wash light
- 2 rotating prisms for creating abstract multi patterns

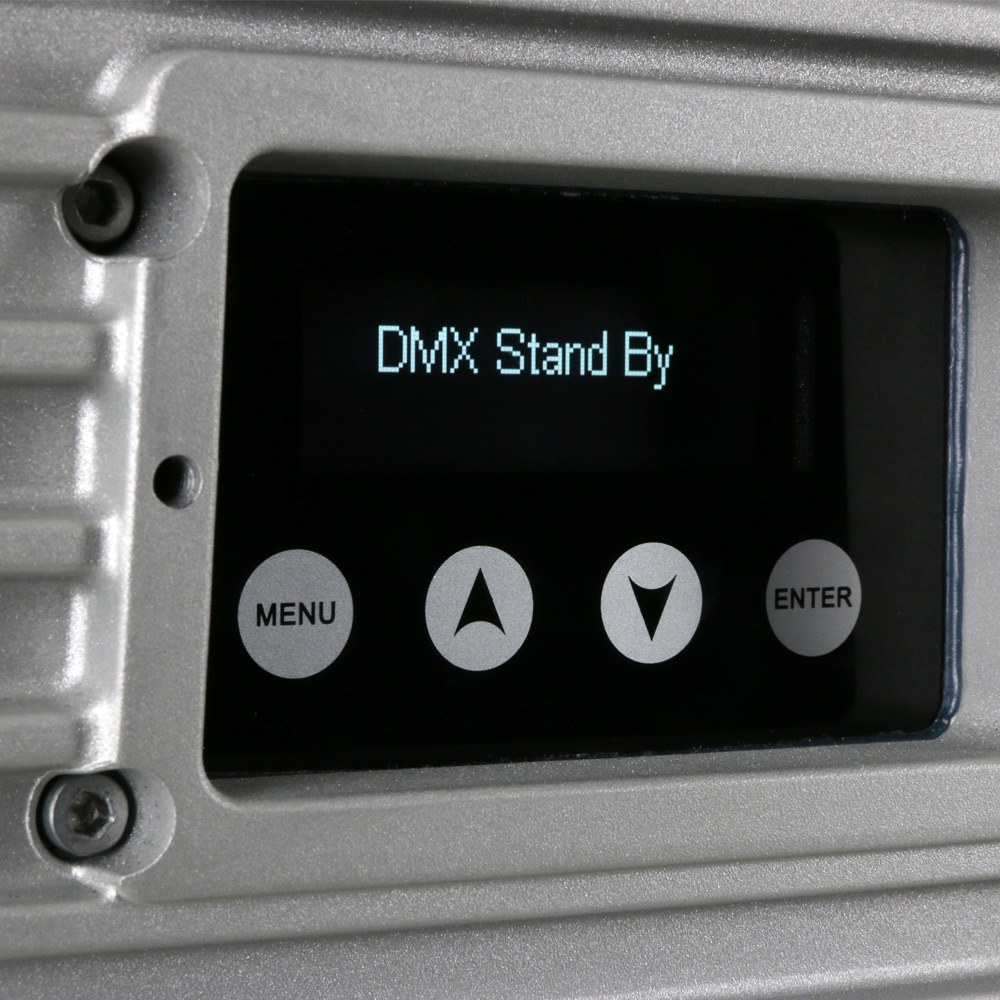

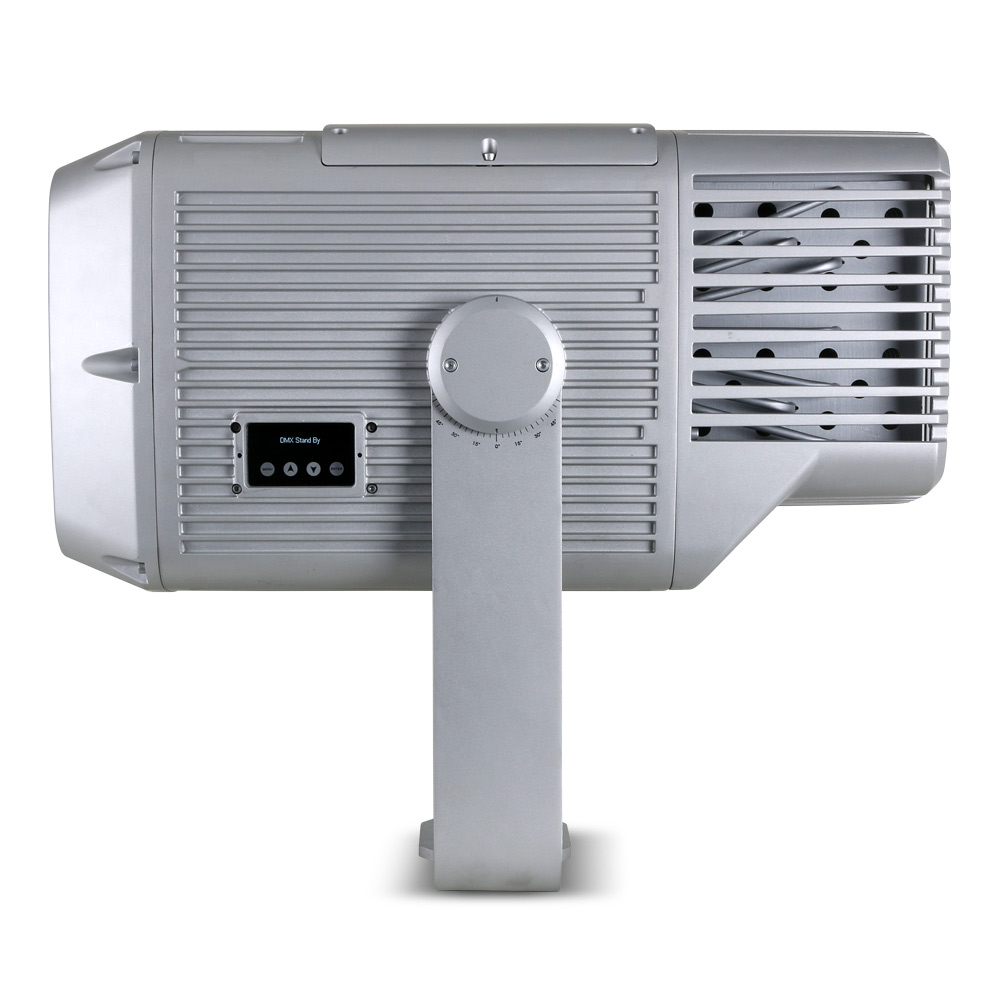

- Intuitive setup, configuration and stand-alone programming via graphical OLED display
- RDM and DMX control
- Fully weatherized IP66 fixture for permanent outdoor installation

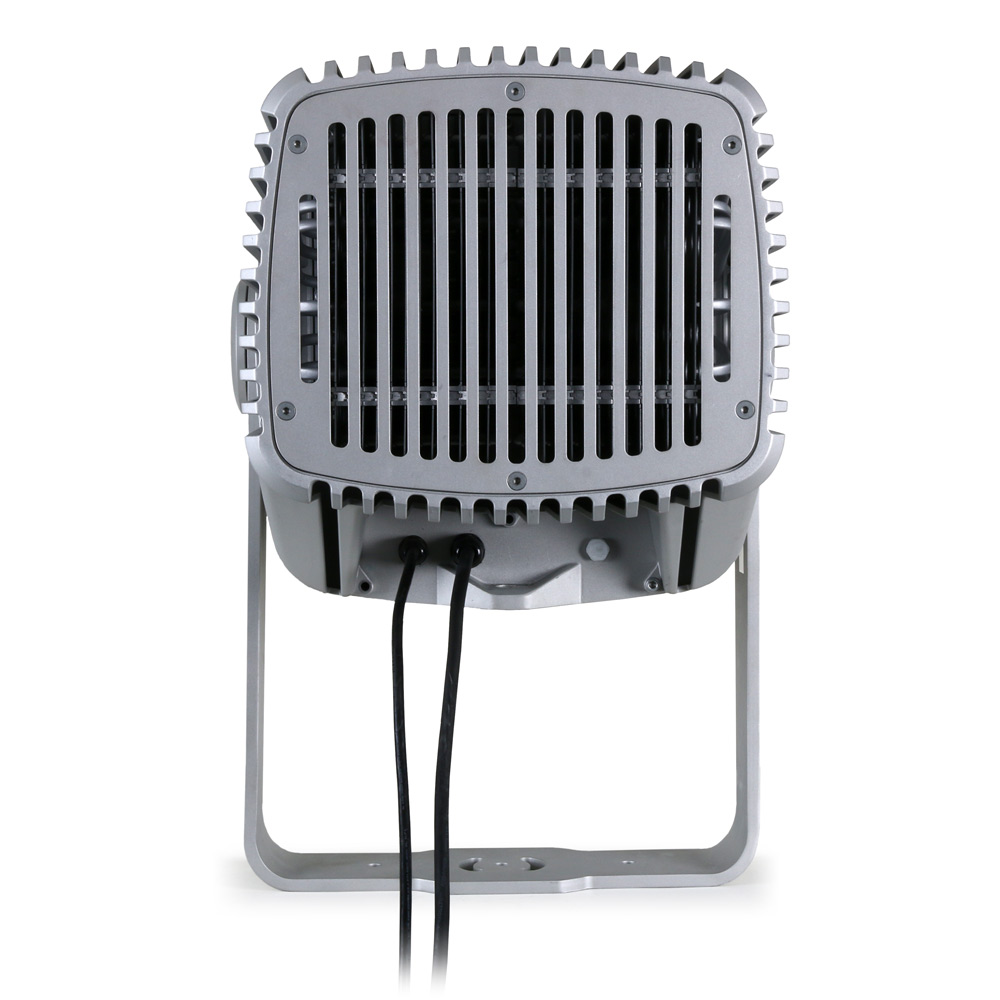

- Fully convection cooling using heat pipes technology
SPECIFICATIONS
-
PHYSICALLength: 702 mm (27.7 in.)Width: 417 mm (16.5 in.)Height: 618 mm (24.4 in.)Weight: 50 kg (110 lbs.)All figures include mounting yokeDYNAMIC EFFECTSColor mixing: CMY, independently variable 0 - 100%Color wheel: 7 interchangeable colors + openGobo wheel: 7 rotating gobos plus open, indexing, variable rotationGobo animation wheel: Indexing, continuous rotation with variable angle, speed and directionZoom: 10° - 44° (cut-off angles)Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexingFrost filter: Motorized, variableDimming: Electronic, constantly variable 0-100%, 16-bit controlShutter: Electronic, strobe and pulse effects, instant open and blackoutFocus: Motorized, variable 3 m (9.8 ft.) to infinityCONTROL AND PROGRAMMINGControl options: DMX, RDM, standaloneStand-alone control: Up to 20 scenes with global fade/hold timesConfiguration, addressing and status: Onboard control panel with OLED display or via RDM8-bit control: CMY, color selection, gobo selection, prism, frost, animation16-bit control: Gobo indexing and rotation, zoom, focus and intensityDMX channels: 20DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20OPTICSLight source: 440 W white light LED engineCRI (Color Rendering Index): 72Color temperature: 6500 K (±250 K)LED lifetime: 20,000 hours (to >70% luminous output)*LED manufacturer: AppotronicsBinning: Tight color and flux binning*Figure obtained under manufacturer's test conditionsPHOTOMETRIC DATACut-off angle: 10° - 44°Luminous intensity:
At 10° zoom: 11,500 lumens
Center Peak:
At 16° zoom: 15,000 lumens
At 40° zoom: 16,800 lumensAt 10° zoom: 731,000 cd
At 16° zoom: 311,000 cd
At 40° zoom: 42,000 cdCONSTRUCTIONHousing: Cast aluminumFinish: Hard anodized, white or metallic grey lacqueredFront glass: 5 mm (0.2 in.) anti-reflection coated tempered glassIngress protection: IP66Impact resistance: IK08 (with control panel display cover plate installed)Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)EPA (Effective Projected Area): 0.28m²GOBOSSuitable material: Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F)Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)Maximum image diameter: 26 mm (1.02 in.)Gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)Gobo thickness, maximum: 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)**Gobos thicker than 2.5 mm require a shorter spring in the goboholderINSTALLATIONMounting: Adjustable yokeLocation: Suitable for wet locations. Do not immerse in water.Orientation: Any (sides must be kept vertical)Minimum distance to illuminated surfaces: 0.5 m (20 in.)CONNECTIONSPower cable entry: IP66 cable glandPower connection: 1.8 m (5.9 ft.) cable tail with bare endsPower cable type: EU models: H07RN-F 450/700V, Ø10 mmUS models: SJTW 14AWG, 300V, Ø9.3 mmData cable entry: IP66 cable glandData connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
|
