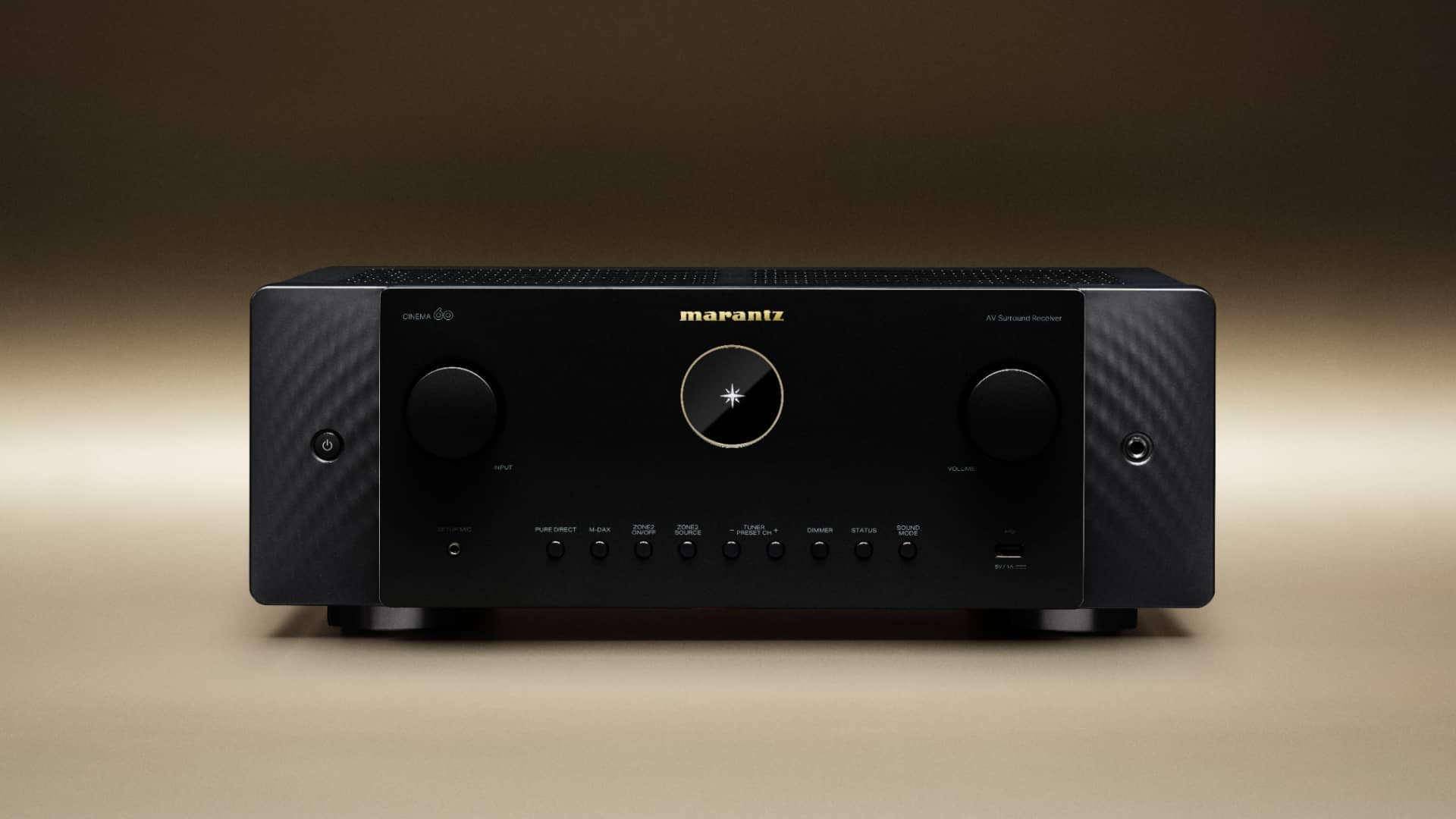

PREMIUM 7.2 CHANNEL | 100 WATTS PER CHANNEL AV RECEIVER
High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS built-in streaming. CINEMA 60 is the new standard of foundational luxury home theater.
Technical Specifications
POWER AMPLIFIER
| Number of Powered Channels |
7 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) |
100 W |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) |
- |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
140 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) |
200 W |
| 70% Guarantee |
Yes |
| Discrete Power Amplifier |
Yes |
| Amplifier Topology |
Class A/B |
| Current Feedback Topology |
Yes |
| Bi-Amp Drive |
assignable |
MULTICHANNEL SURROUND TECHNOLOGIES
| DTS |
DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby |
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Other |
|
| Max Number of Processing (Preamp) Channels |
7.2 |
Inputs/Outputs
| Composite In / Out |
0/0 |
| Component In / Out |
0/0 |
| HDMI In / Out |
6 / 2 |
| Multi-Room Video Out via HDMI |
0/0 |
| Analog In / Fixed Level Out |
4 in / 0 out |
| Phono (MM) In |
Yes |
| Digital In: Optical / Coaxial |
2 / 2 |
| Multi-Room Out: analog / digital |
1 / 0 |
| Multichannel Preamp Out |
7.2 |
| Subwoofer Out |
2 |
| 7.1 multichannel input |
No |
| Number of Speaker Terminals |
7 |
| Speaker A / B |
assignable |
| Multi-Room Speaker Terminal |
assignable |
| Front Inputs |
USB-A |
| USB Audio |
Yes / No / No |
| FM Tuner with RDS |
Yes |
| DAB+ Tuner |
No |
HDMI
| Total HDMI Inputs / No. Support 8K |
6 / 3 |
| HDCP2.3 support |
Yes |
| HDMI Outputs: Main / Zone |
2 / 1 |
| Analog to HDMI Video Conversion |
No |
| HDMI Upscaling |
1080P/4K to 8K |
| Max resolution @ framerate |
|
| Audio Return Channel |
eARC |
| Video Dynamic Range |
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming |
Yes |
| Variable Refresh Rate / Quick Frame Transport |
Yes / Yes / No |
| HDMI Pass-Through in Standby Mode |
Yes |
| CEC |
Yes |
| DSD Audio over HDMI |
No |
| Auto LipSync |
Yes |
PERFORMANCE TECHNOLOGIES
| Copper Plated Chassis |
No |
| Toroidal Power Supply Transformer |
No |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) |
Yes |
| Pure Direct Mode |
Yes |
| Gold Plated RCA Terminals |
Yes |
| Clock Jitter Reducer |
No |
Acoustic / Room Correction
| Audyssey |
MultEQ XT |
| Audyssey Dynamic EQ / Dynamic Volume |
Yes / Yes |
| Audyssey LFC |
No |
| Dirac Live Support |
No |
| Variable Cross Over |
Yes |
| Optimized Bass Redirection |
Yes |
| Bass Sync |
No |
MUSIC FILE SUPPORT
| Lossy Formats |
MP3 / WMA / AAC |
| Lossless formats |
FLAC HD 192/24 / WAV 192/24 / ALAC 192/31 |
| DSD Audio |
2.8 MHz / 5.6MHz |
| Gapless Playback |
FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 |
Yes |
| Network Audio Sharing |
Yes |
STREAMING SERVICES
| HEOS Multi-room and Streaming |
Yes |
| AirPlay Audio Streaming |
AirPlay2 |
| Internet Radio |
TuneIn |
| Spotify* |
Spotify Connect |
| Pandora |
Yes |
| SiriusXM |
Yes |
| Other Streaming Services * |
Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
| Roon tested |
Yes |
NETWORK CONNECTIVITY
| Ethernet Ports |
Yes |
| Wi-Fi (include version / band) |
Yes |
| Bluetooth (Include version) |
Yes |
| Bluetooth Re-transmit for Bluetooth headphones |
Yes |
SMART HOME INTEGRATION AND CONTROL
| Voice Assistant Compatibility |
Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) |
Marantz AVR App |
| HEOS Multi-Room Integrated |
Yes |
| HEOS Link Compatibility: IR/ IP |
Yes / Yes |
| Multi-Room zones |
2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog |
2 Ch / 2Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout |
Yes / Yes |
| Zone HDMI Output from HDMI Source |
Yes |
| Control Connectivity |
IP Control / RS232 Control / Web Control / App Control |
| IR Flasher In |
Yes |
| Marantz Remote Bus |
Yes |
| DC Trigger Output |
1 |
| HDMI Diagnostics |
Yes |
Others
| Front Display |
port hole OLED |
| Primary Display Size (diagonal in/mm) |
|
| Secondary Display Size (diagonal in/mm) |
|
| GUI Languages |
9 |
| Setup Assistant |
Yes |
| Smart Select on Remote |
Yes |
| Firmware Update by Network / USB |
Yes / Yes |
| ECO Mode |
Yes |
| Auto Power off |
Yes |
| Sleep Timer |
Yes |
General
| Available Colors |
Black/Silver-Gold |
| Metal Front Panel |
No |
| System Remote Control |
RC-049SR |
| Power Consumption in W |
650 |
| Power Consumption No-Sound (ECO on/off) in W |
45 W / 75 W |
| Standby Consumption in W |
0.2 |
| CEC Standby Consumption in W |
0.5 |
| Network Standby Consumption in W |
Less than 2.0 |
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm |
442 x 354 x 165
( 442 x 354 x 235 )
【 442 x 343 x 165 】 |
| Weight in kg |
10.9 |
| What's in the box |
Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
