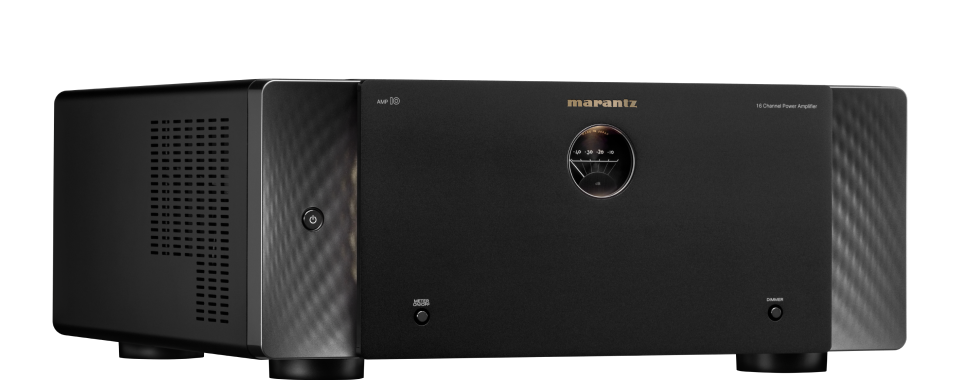

AMP 10
REFERENCE 16-CHANNEL 200-WATT-PER-CHANNEL AMPLIFIER
Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.
Technical Specifications
Multi-Room / CI
| IP Control / RS232 Control / Web Control / App Control | No / Yes / No / No |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input/ Output | 1 / 1 |
Others
| Front Display | Level Meter |
| Firmware Update by Network / USB / RS232C | No / No / No |
| Auto Power off | Yes |

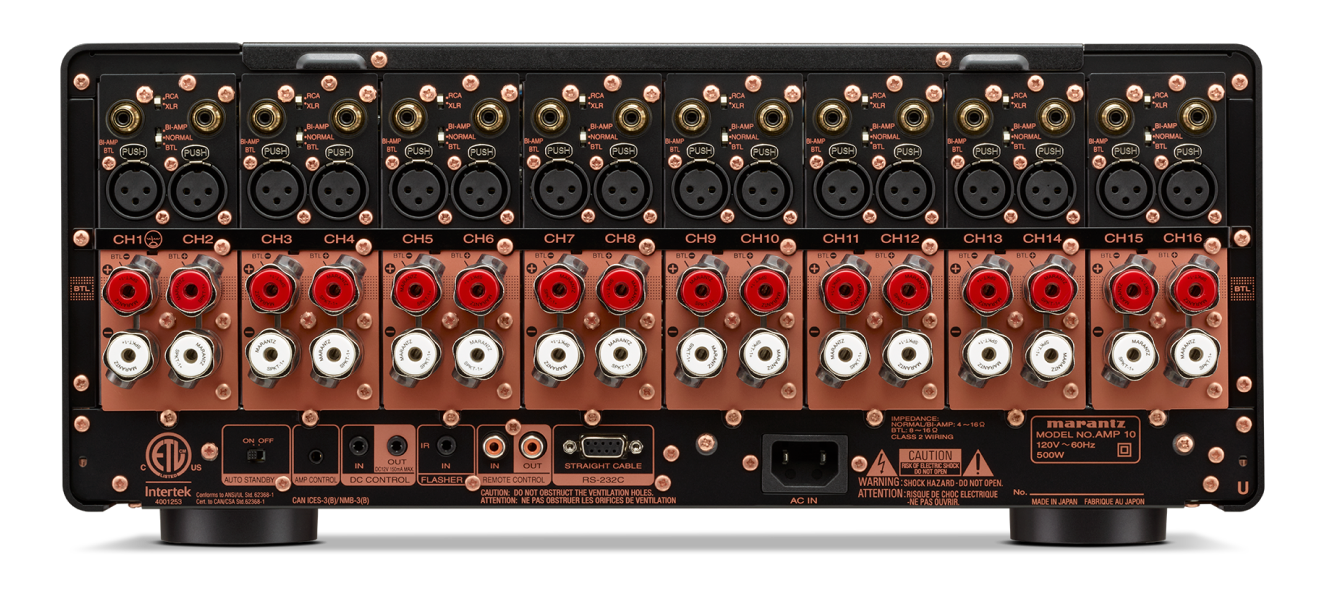

Inputs/Outputs
| Main Amplifier in | Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.) |
| Speaker Terminal | SPKT-1+ |
| Number of Speaker Terminals | 16 |
| Bi-Amp Drive /BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Chasiss | Copper Plated |
Specifications
| Number of poweramps | 16 |
| Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL | 200W / 400W |
| Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal | 400W |
| Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal | 200W |
| 70% Guarantee(Normal/Bi-Amp/BTL) | Yes |
| 100% Guarantee(Normal/Bi-Amp) | Yes |
General
| Metal Front Panel | Yes |
| Pre-Programmed / Learnable / LCD Display | No / No / No |
| Power Consumption in W | 500 |
| Power Consumption No-Sound in W | 140W |
| Standby Consumption in W | 0.2 |
| Maximum Dimensions | 【 17.4 x 19.2 x 7.4 】 |
| Weight in lbs. | 43.7 |
| What's in the box | Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench |
| UPC code | 747192137519 |
