Technical Specifications
Features
| Channels | 2 |
| Current Feedback Topology | o |
| Full balanced circuitry architecture | - |
| Double Mono Power Amp construction | - |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | - / o / - |
| Digital in: USB-B / optical / coaxial / USB-A | - /1 / 1 / 1 |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-A: DSD / WAV / FLAC / AIFF / ALAC | <=5.6 / 192 / 192 / - / 192 |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | - |
| USB-B PCM sample rate | - |
| DAC chip | ES9016K2M |
| Asynchronous mode rear USB | - |
| Bit-perfect transmission | - |
| Ground isolator for DAC Mode operation | - |
| Tuner: DAB / DAB+ / FM (RDS) | - |
| Bluetooth / aptX / NFC | o / - / - |
| Streaming audio from PC | o |
| Wi-Fi / Wired LAN | o / o |
| Internet radio | o |
| AirPlay 2 | o |
| Roon Tested | o |
| Spotify Connect* / Tidal* / Deezer* / others * | o / o / o / o |
| Amazon Prime Music* / Pandora* | o / - |
| HEOS Multiroom and Streaming | o |
| Voice Control - Works with Amazon Alexa | o |
| Voice Control - Google Assist / Apple Siri | o |
| Voice Control - Microphone built-in | - |
| DSD-Audio network streaming | o |
| Lossy formats MP3 / WMA / AAC | o / o / o |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | o / o / o / o / - |
| Gapless Playback | o |
| Remote APP: iDevice / Android | o / o |
| Analog Mode | - |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | o / - |
| High Grade Audio Components | o |
| Customised Components | o |
| Symmetric PCB Layout | o |
| Aluminium extrusion heat sink | o |
| Copper Plated Chassis | - |
| Balance / Bass / Treble / Loudness | o / o / o / - |
| Double Layerd Bottom Plates | o |
| Low Noise OELD display | o |
Others
| Marantz Musical Digital Filtering | o |
| Linear Drive Power Supply | o |
| Liniear volume control | MUSES 72323 |
| BI-AMP and Multichannel option | - |
| Shottky diodes | o |
| Input buffer amp (all inputs / CD only) | - / - |
| System block shielding: Copper / metal / none | - / o / - |
| Low noise LCD display | - |
| Source Direct | o |
| Power Amp direct | o |
| 5mm aluminium top plate | - |

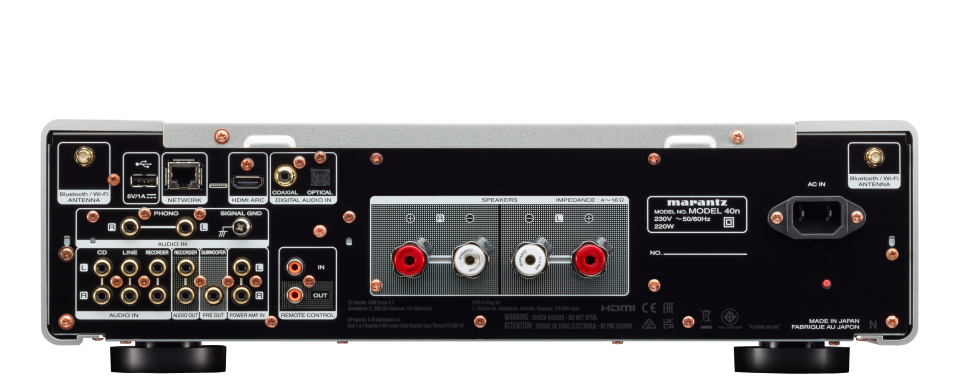

Inputs/Outputs
| Audio Inputs | 4 |
| Digital in: USB-B / optical / coaxial / USB-A | - / 1 / 1 / 1 |
| Auto Power On by digital input signal | o |
| TV remote learning | - |
| Phono Input: MM / MC | o / - |
| Audio Outputs | 1 |
| Balanced In / Out | - |
| Pre-out / Main-in | subwoofer / - |
| Power Amp Direct IN | o |
| HDMI: inputs / outputs | 1 / - |
| Gold Plated Cinch | o |
| Speaker A / B | - |
| Speaker Terminals | Marantz SPKT-1+ |
| Number of terminals | 2 |
| D-Bus | o |
| Floating Control Bus (3.5 mm mono jack x 2) | - |
| Headphone Out | o |
| Headphone Gain Control (low / mid / high) | - |
Specifications
| Power Output (8 / 4 Ohm RMS) | 70 W / 100 W |
| Frequency Response | 5 Hz-100 kHz |
| Total Harmonic Distortion | 0.02 % |
| Damping Factor | 100< |
| Input Sensitivity: MM | 1.6 mV / 47 kOhm |
| Input Sensitivity: MC | - |
| Signal to Noise Ratio: MM/MC | 87 dB / - |
| Input Sensitivity: High level | 220 mV / 16 kOhm |
| Input Sensitivity: Balanced High level | - |
| Signal to Noise Ratio: High level | 113dB |
| Input Sensitivity: Power Amp Direct IN | 1.5 V / 15 kOhm |
| Signal to Noise Ratio: Power Amp Direct IN | - |
General
| Available Colors: Gold / Silver / Black / Silver-Gold | - / - / o / o |
| Metal Front Panel | o |
| Power Consumption in W | 220 |
| Standby Consumption in W | 0.3 |
| Auto Power off | o |
| Detachable Power Cable | o |
| Remote Control | RC005PM |
| System Remote Function | o |
| Maximum Dimensions (W x D x H) in mm | 443 x 432 x 130 |
| Weight in kg | 16.7 |
| Carton Maximum Dimensions (W x D x H) in inches | 534 x 522 x 255 |
| Carton Weight (inc. product) in lbs | 19.6 |
