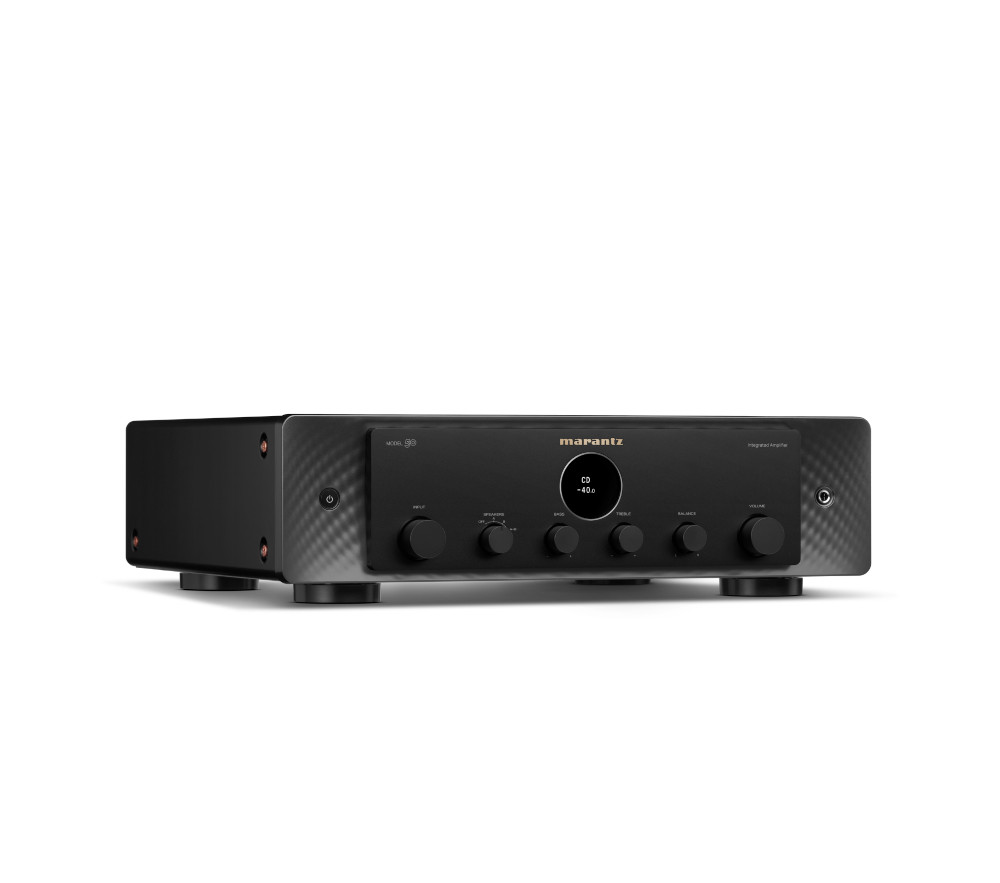

MODEL 50
PREMIUM INTEGRATED STEREO AMPLIFIER WITH 70W AND CUSTOM HDAM
MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM SA-3 circuitry, this amplifier drives loudspeakers with total control.
Technical Specifications
Features
| Channels |
2 |
| Current Feedback Topology |
o |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium |
- / o / - |
| Digital in: USB-B / optical / coaxial / USB-A |
- / - / - / - |
| HDAM version |
SA3, SA2 |
| Power Transformer: Toroidal / El |
o / - |
| High Grade Audio Components |
o |
| Customised Components |
o |
| Symmetric PCB Layout |
o |
| Aluminium extrusion heat sink |
o |
| Balance / Bass / Treble / Loudness |
o / o / o / - |
Others
| Linear Drive Power Supply |
o |
| Liniear volume control |
o |
| Schottky diodes |
o |
| Input buffer amp (all inputs / CD only) |
CD 입력단자 |
| Solid Heat Sinks |
o |
| System block shielding: Copper / metal / none |
x |
| Double Layer Bottom Plate |
삼중('triple) |
| Low noise OLED display |
o |
| Source Direct |
o |
| Power Amp direct |
o |

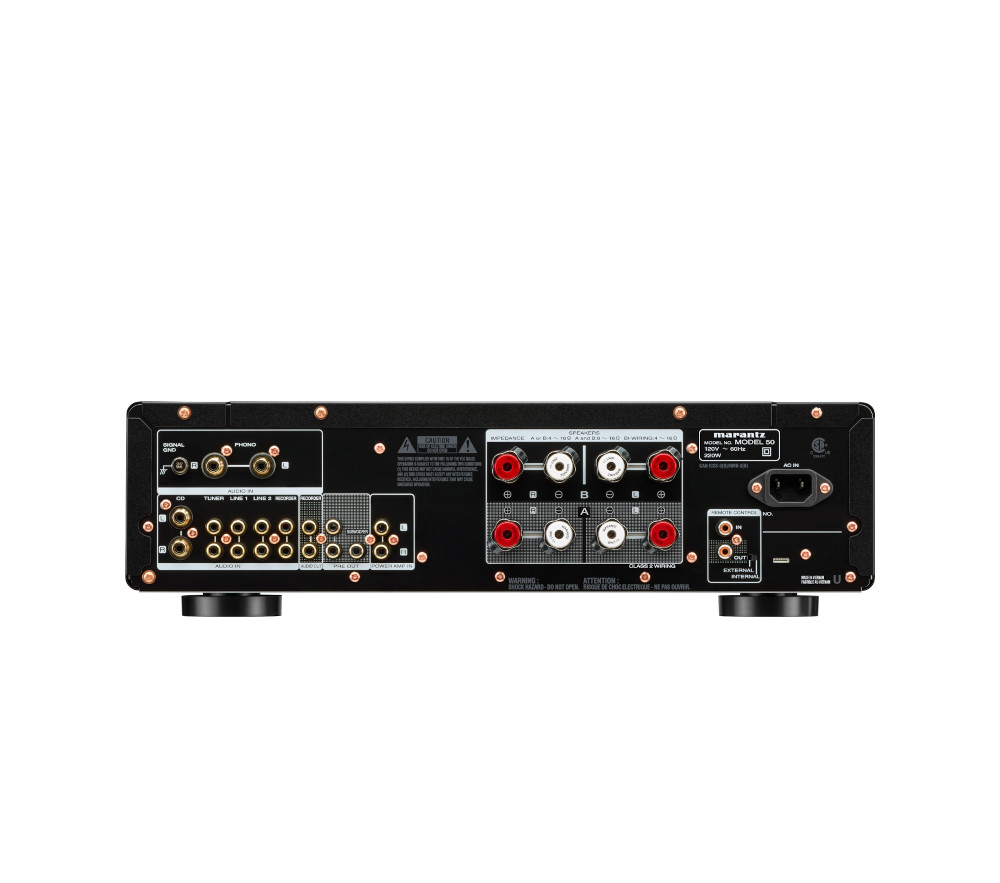

Inputs/Outputs
| Audio Inputs |
6 |
| Digital in: USB-B / optical / coaxial / USB-A |
x |
| Phono Input: MM / MC |
o / - |
| Audio Outputs |
1 |
| Balanced In / Out |
- / - |
| Pre-out / Main-in |
o + subwoofer / - |
| Power Amp Direct IN |
o |
| Gold Plated Cinch |
o |
| Speaker A / B |
o |
| Speaker Terminals |
Marantz SPKT-1+ |
| Number of terminals |
4 |
| D-Bus |
o |
| Headphone Out |
o |
Specifications
| Power Output (8 / 4 Ohm RMS) |
70 W / 100 W |
| Frequency Response |
5 Hz–100 kHz |
| Total Harmonic Distortion |
0.02 % |
| Damping Factor |
100 |
| Input Sensitivity: MM |
1.4mV / 47 kOhm |
| Signal to Noise Ratio: MM/MC |
87 dB / - |
| Input Sensitivity: High level |
185 mV / 16 kOhm |
| Signal to Noise Ratio: High level |
116dB(2V input) |
| Input Sensitivity: Power Amp Direct IN |
1.5V / 15 kOhm |
| Signal to Noise Ratio: Power Amp Direct IN |
125 dB |
| Treble Control |
± 10 dB at 15kHz |
| Bass Control |
± 10 dB at 50Hz |
General
| Available Colors: Gold / Silver / Black / Silver-Gold |
- / - / o / o |
| Metal Front Panel |
o |
| Power Consumption in W |
220 |
| Standby Consumption in W |
0.3 |
| Auto Power off |
o |
| Detachable Power Cable |
o |
| Remote Control |
RC003PMND |
| System Remote Function |
o |
| Maximum Dimensions (W x D x H) in mm |
442 x 431 x 130 |
| Weight in kg |
14.2 |
| Carton Maximum Dimensions (W x D x H) in mm |
527 x 517 x 255 |
| Carton Weight (inc. product) in kg |
17.5 |
