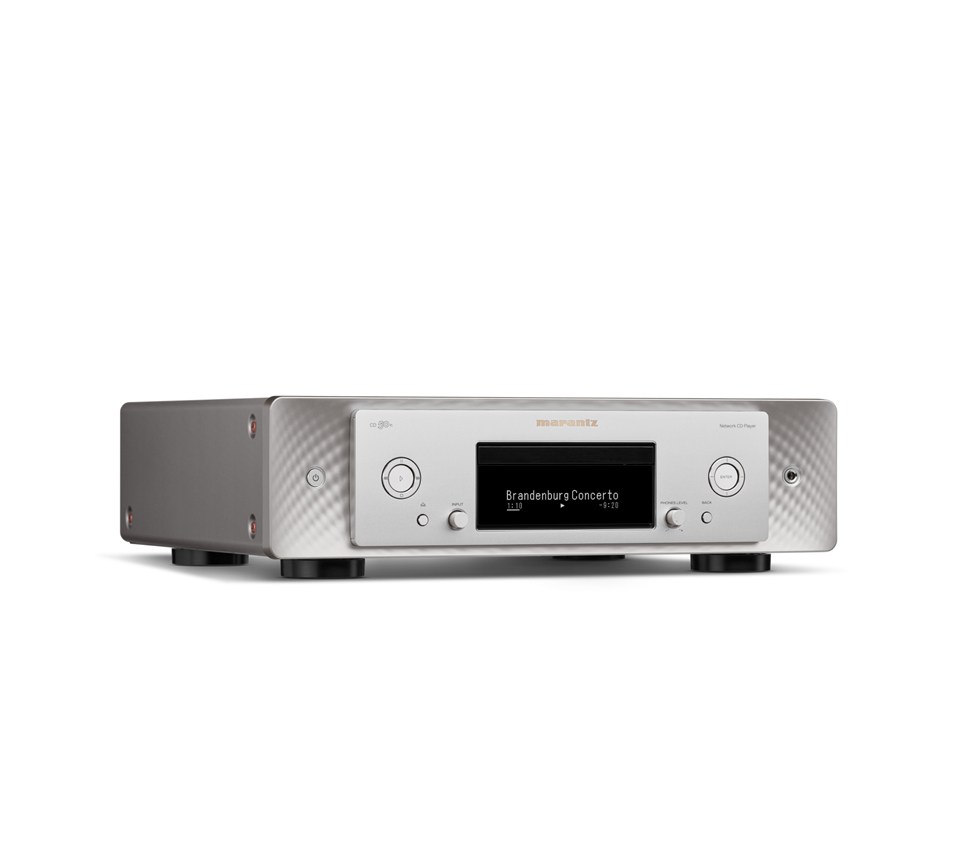

CD 50n
PREMIUM CD AND NETWORK AUDIO PLAYER WITH HEOS BUILT-IN AND HDMI ARC
The modern digital engine in the CD 50n reveals the finest details in high-resolution recordings available today, with HEOS® Built-in allowing you to enjoy digital audio experiences from any source.
Technical Specifications
Features
| Network Audio Streaming | Yes |
| Spotify Connect* / Tidal* / Deezer* / others * | Yes / Yes / Yes / Yes |
| Amazon Prime Music* / Pandora* | Yes / Yes |
| AirPlay 2 | Yes |
| Roon Tested | Yes |
| Internet radio | TuneIn |
| HEOS Multiroom and Streaming | Yes |
| Voice Control - Works with Amazon Alexa | Yes |
| Voice Control - Microphone built-in | - |
| CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC | Yes / Yes / - / Yes / Yes / - |
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data | - / - / Yes / Yes / - |
| Data Disc Compatibility: DSD / WAV / ALAC | - / - / - |
| USB input for memory stick | Yes |
| DAC Master Clock Design | Yes |
| DAC operation mode: USB-B / Coax / Optical | Yes / Yes / Yes |
| Asynchronous mode rear USB-B | Yes |
| Bit-perfect transmission | Yes |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 | Yes / Yes / Yes |
| Signal isolator for DAC Mode operation | Yes |
| HDAM version | HDAM + HDAM SA2 |
| Power Transformer: Toroidal / El | Yes / - |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric circuit layout | Yes |
| Extra metal plate for chassis strengthing | Yes (double layer, 1mm x 2) |
| Digital out off / Audio EX Mode | Yes / - |
| Headphone: Standard / Buffer / Current feedback | - / - / Yes (HDAM SA2) |
Network
| Wi-Fi / Wired LAN | 2.4 GHz, 5 GHz / Yes |
| Wi-Fi on / off mode | Yes |
| Bluetooth on / off mode | Yes |
| DSD Audio Streaming | up to DSD11.2 up to PCM384 kHz (Update) |
| Lossy formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 | Yes / Yes / Yes / Yes |
| Gapless Playback | Yes (FLAC, WAV, DSD) |
| Remote APP: iDevice / Android | Yes / Yes |
| App control AMP/CD via Network Player | Yes |
Others
| Selectable filter: CD / SA-CD / DAC-Mode | Yes / - / Yes (PCM Only) |
| Separated rectifier circuit for analogue and digital circuitry | Yes |
| Display: Dimmer / Off | Yes / Yes |
| Display | 3 line OLED |
Playback
| Program Play (CD / SA-CD) | 25 / - |
| Repeat | Yes |
| Random Play | Yes |

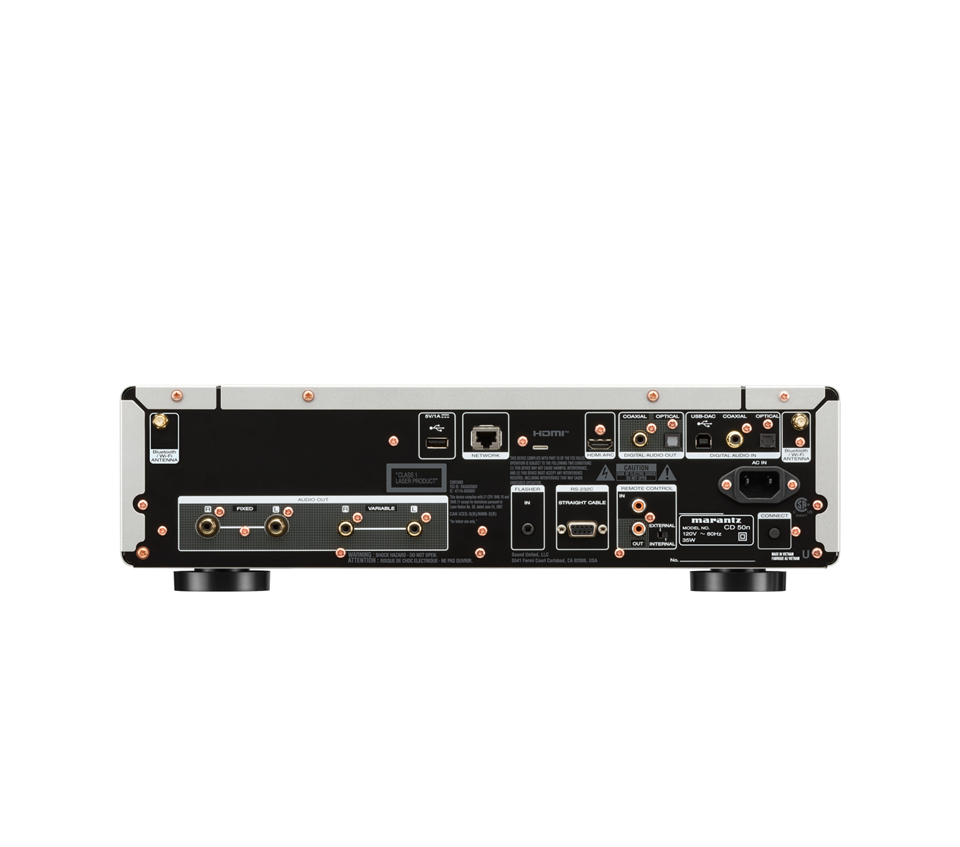

Inputs/Outputs
| Analogue Out (RCA) | 1 |
| Variable Out (RCA) | 1 |
| Balanced Out | - |
| HDMI: ARC input for TV | Yes |
| Digital Optical In / Out | 1 / 1 |
| Digital Coaxial In / Out | 1 / 1 |
| Max Sample Rate: S/PDIF Input | 192 kHz / 24-bit |
| Gold Plated Cinch | Yes |
| USB Audio | rear |
| USB type B input for PC (rear) | Yes |
| Sample Rate USB type B In | up to DSD11.2 and PCM 384 kHz |
| D-Bus | Yes |
| Remote Control Bus in / out | - |
| Headphone Out | Yes |
| Headphone Volume Control | Yes |
| Bluetooth / Bluetooth HP transmission | Yes / Yes (Update) |
| Ethernet port | Yes |
| IP control | Yes |
| Flasher input | Yes |
| RS232 | Yes |
Specifications
| Mechanism | JTL-101YP |
| D/A Conversion | ESS Hyper Stream |
| DAC IC | ES9038 |
| Digital Filter | ES9038 |
| Noise Shaper | ES9038 |
| Low Pass Filter stage | HDAM |
| Output Buffer | HDAM SA2 |
| Headphone amp | HDAM SA2 |
| Frequency Response | 2 Hz–20 kHz |
| Dynamic Range | 100 dB |
| Signal to Noise Ratio | 112 dB |
| Total Harmonic Distortion | 0.000016 |
| Channel separation | 105 dB |
General
| Available colors: Black / Silver Gold | Yes / Yes |
| Metal Front Panel | Yes |
| Remote Control | RC003PMND |
| Power Consumption in W | 35 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Maximum Dimensions (W x D x H) in mm | 442 x 424 x 130 |
| Weight in kg | 10.3 |
| Carton Maximum Dimensions (W x D x H) in mm | 527 x 517 x 255 |
| Carton Weight (inc. product) in kg | 13.5 |

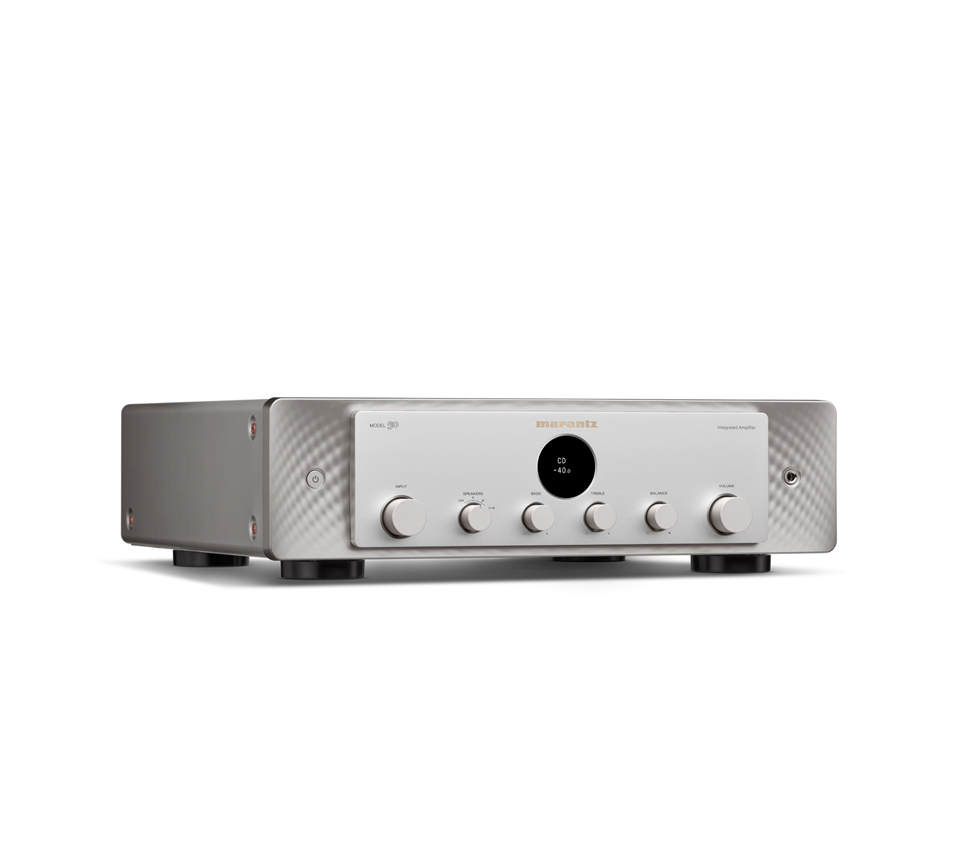

MODEL 50
PREMIUM INTEGRATED STEREO AMPLIFIER WITH 70W AND CUSTOM HDAM
MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM SA-3 circuitry, this amplifier drives loudspeakers with total control.
Technical Specifications
Features
| Channels | 2 |
| Current Feedback Topology | o |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | - / o / - |
| Digital in: USB-B / optical / coaxial / USB-A | - / - / - / - |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | o / - |
| High Grade Audio Components | o |
| Customised Components | o |
| Symmetric PCB Layout | o |
| Aluminium extrusion heat sink | o |
| Balance / Bass / Treble / Loudness | o / o / o / - |
Others
| Linear Drive Power Supply | o |
| Liniear volume control | o |
| Schottky diodes | o |
| Input buffer amp (all inputs / CD only) | CD 입력단자 |
| Solid Heat Sinks | o |
| System block shielding: Copper / metal / none | x |
| Double Layer Bottom Plate | 삼중('triple) |
| Low noise OLED display | o |
| Source Direct | o |
| Power Amp direct | o |

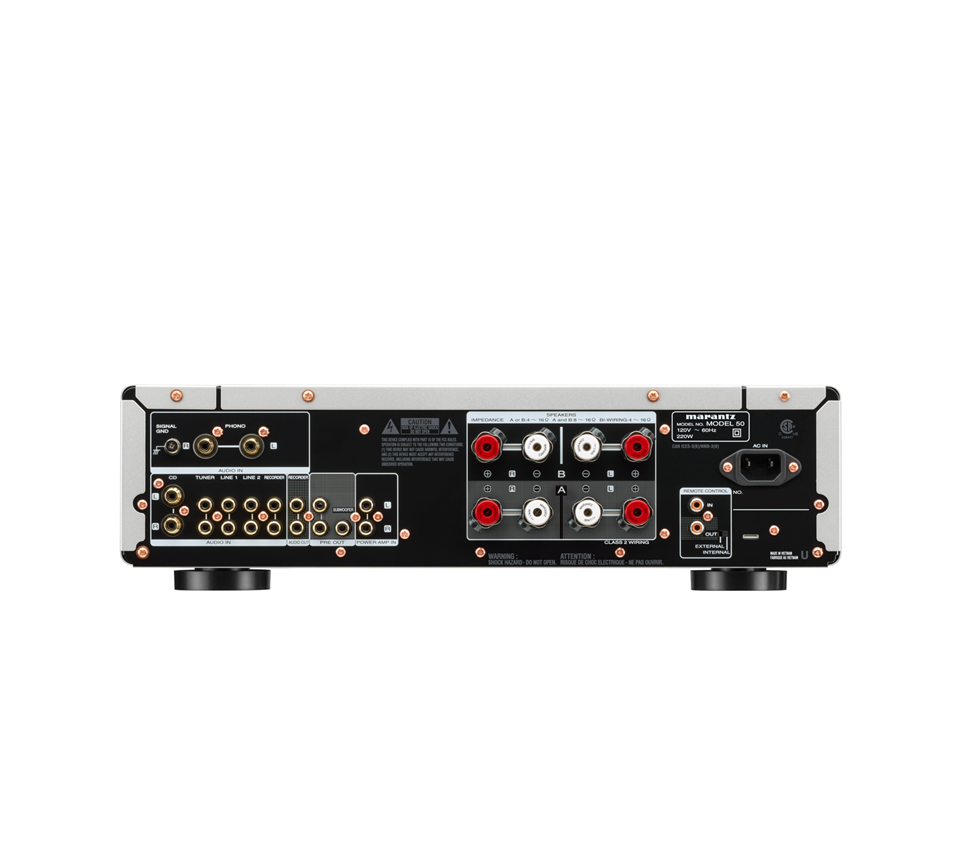

Inputs/Outputs
| Audio Inputs | 6 |
| Digital in: USB-B / optical / coaxial / USB-A | x |
| Phono Input: MM / MC | o / - |
| Audio Outputs | 1 |
| Balanced In / Out | - / - |
| Pre-out / Main-in | o + subwoofer / - |
| Power Amp Direct IN | o |
| Gold Plated Cinch | o |
| Speaker A / B | o |
| Speaker Terminals | Marantz SPKT-1+ |
| Number of terminals | 4 |
| D-Bus | o |
| Headphone Out | o |
Specifications
| Power Output (8 / 4 Ohm RMS) | 70 W / 100 W |
| Frequency Response | 5 Hz–100 kHz |
| Total Harmonic Distortion | 0.02 % |
| Damping Factor | 100 |
| Input Sensitivity: MM | 1.4mV / 47 kOhm |
| Signal to Noise Ratio: MM/MC | 87 dB / - |
| Input Sensitivity: High level | 185 mV / 16 kOhm |
| Signal to Noise Ratio: High level | 116dB(2V input) |
| Input Sensitivity: Power Amp Direct IN | 1.5V / 15 kOhm |
| Signal to Noise Ratio: Power Amp Direct IN | 125 dB |
| Treble Control | ± 10 dB at 15kHz |
| Bass Control | ± 10 dB at 50Hz |
General
| Available Colors: Gold / Silver / Black / Silver-Gold | - / - / o / o |
| Metal Front Panel | o |
| Power Consumption in W | 220 |
| Standby Consumption in W | 0.3 |
| Auto Power off | o |
| Detachable Power Cable | o |
| Remote Control | RC003PMND |
| System Remote Function | o |
| Maximum Dimensions (W x D x H) in mm | 442 x 431 x 130 |
| Weight in kg | 14.2 |
| Carton Maximum Dimensions (W x D x H) in mm | 527 x 517 x 255 |
| Carton Weight (inc. product) in kg | 17.5 |
