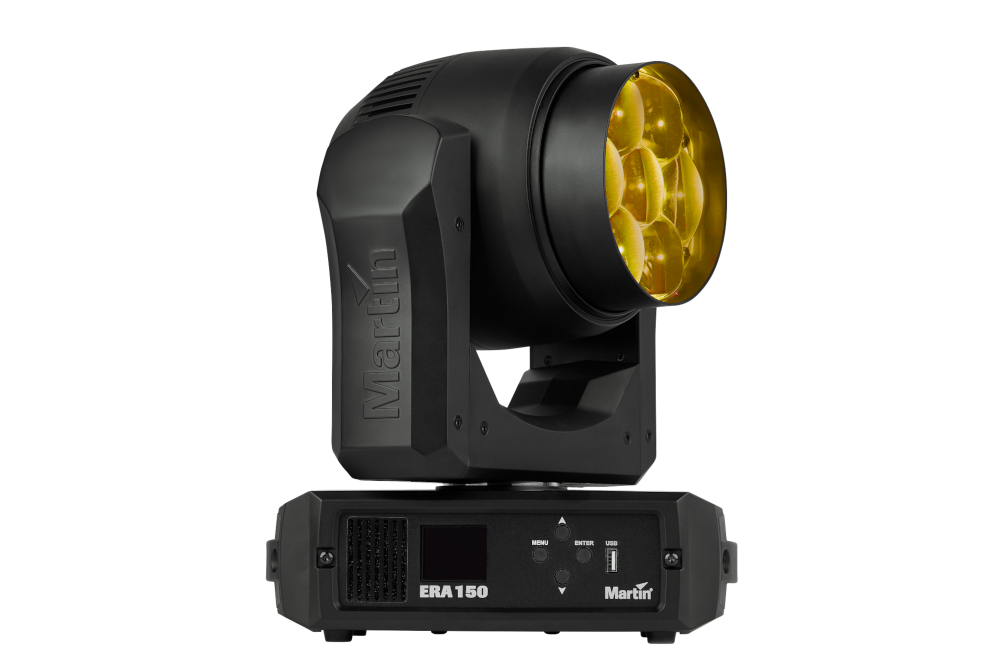

The Martin ERA 150 Wash moving-head LED wash fixture provides class-leading lumen output, high-intensity narrow zoom and full-gamut color calibration for accurate color reproduction and color temperature control, making it an incredibly versatile yet affordable workhorse lighting solution for rentals, installs and touring.
The ERA 150 Wash takes performance even further thanks to a newly designed optical system that produces a wider zoom range, higher output and wide uniform wash field. Other advancements include advanced color-calibration features including extended color mode and a CTC channel that allows RGB color mixing around your desired white point.
Whether lighting a theatre production, live concert, exhibition or corporate event, fill the stage with color and create brilliant, focused beam effects with this flexible moving-head fixture that brings new versatility to the designers' toolbox.
FEATURES
- Light engine: LED 7 x 40W RGBW
- Full-gamut color calibration
- CTC control: 1,800–12,850 K
- High output: 3,700 lm
- High intensity 397,783 cd
- Zoom: 4.2 - 58˚
- Low-noise cooling system
- High-speed pan, tilt & zoom
- Weight 7.3 kg (16.1 lbs.)
- Dimensions: 276 x 176 x 356 mm (10.9 x 7.0 x 14.1 in.)
SPECIFICATIONS
-

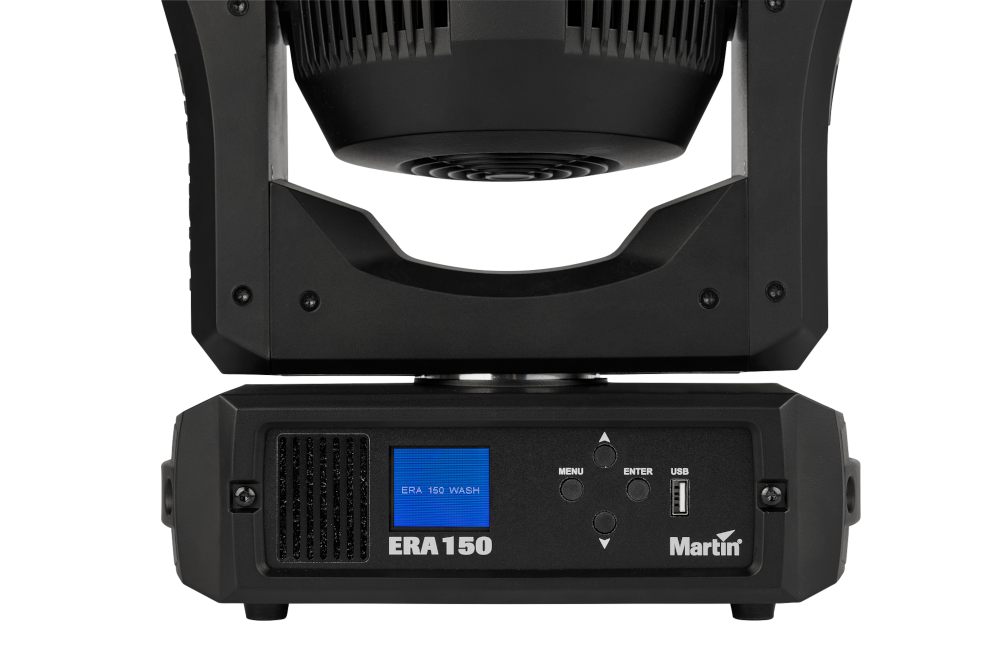

PHYSICALLength: 276 mm (10.9 in.)Width: 176 mm (7.0 in.)Height: 356 mm (14.1 in.)Weight: 7.3 kg (16.1 lbs.)DYNAMIC EFFECTSColor mixing: RGBWColor presets: 48 color presets, virtual color wheel effectsColor temperature control: Variable 1,800 - 12,850 KElectronic dimming: 0 - 100%, four dimming curve optionsStrobe and pulse effects: Variable speed and action, random strobeElectronic shutter effect: Instant open and blackoutZoom: Motorized, 4.2 - 58°Pan: 540°Tilt: 260°CONTROL AND PROGRAMMINGDMX channels: 18DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Control options: DMX, RDM16-bit fine control: Dimming, RGB, zoom, pan and tiltLED color management modes: Raw, extended and calibratedDMX address setting: Control panel with LCD displayFixture software update: USB memory device or over DMX linkOPTICSLight source: 7 x 40 W RGBW Osram LEDsMinimum LED lifetime: 50,000 hours (to >70% luminous output)*Beam angle (half-peak): 4.2° - 38.7°Field angle (one-tenth peak): 5.1° - 58.6°Cutoff angle (3%): 5.7° - 69.6°Binning: Tight color and flux binningCalibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditionsPHOTOMETRIC DATAWide beam: 3700 lumensNarrow beam: 1774 lumensFixture Center Intensity Narrow Beam: 397783 cdFixture Center Intensity Wide beam: 10042 cdCRI (Color Rendering Index) : >70CQS (Color Quality Scale): 83TM-30 Rf (IES TM-30-15 Fidelity Index): 77TM-30 Rg (IES TM-30-15 Gamut Index): 117TLCI (Television Lighting Consistency Index): 56CCT: 6500 KelvinLED refresh rate - Standard Mode: 3600 HzLED refresh rate - Theatre Mode: 19200 Hz* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

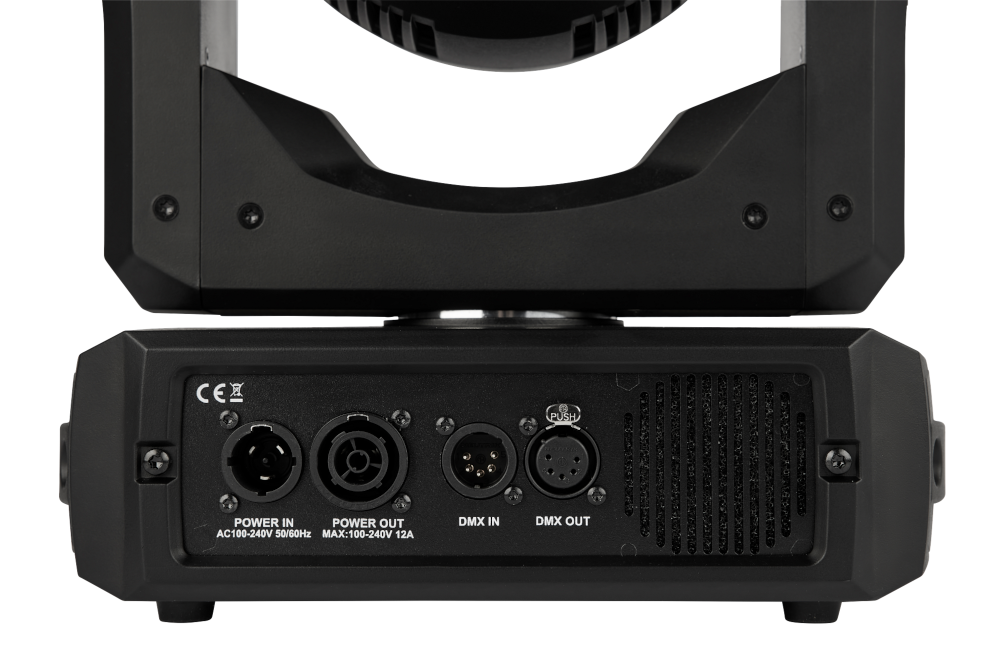

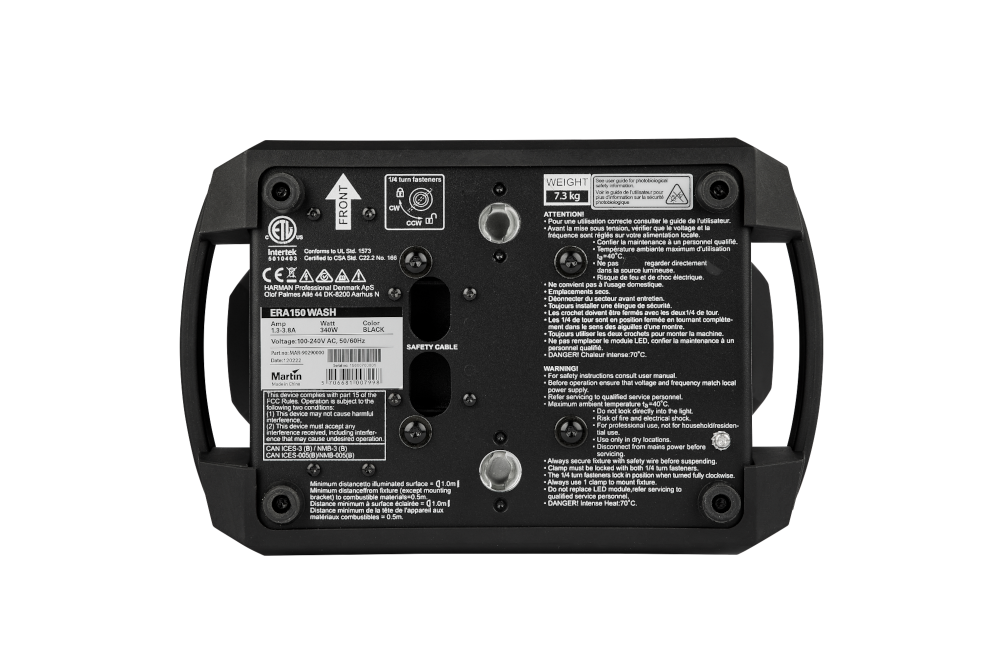

CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP 20INSTALLATIONMounting points: 2 x quarter‐turn fastener receptacles, 106.5 mmLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 0.5 m (1.7 ft.)Minimum distance to illuminated surfaces: 1 m (3.3 ft.)Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)CONNECTIONSAC power input/output: Neutrik PowerCON TRUE1 TOPDMX and RDM data in/out: Neutrik 5-pin locking XLR -
ELECTRICAL
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 220 V / 230 V / 240 V
Typical current draw: 3.8 A @ 100 V / 120 V , 1.5 A @ 220 V / 230 V / 240 V *
Power Consumption
Typical: 315 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
THERMALCooling: Forced air (temperature regulated, low noise)Total heat dissipation (calculated): 1195 BTU/hr.
*Calculated, +/- 10%, at full intensity, full white
Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): -10° C (14° F)ACOUSTIC DATASound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.3 dB(A)ENVIRONMENTALRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 15.5 lm/WLWR*: 507 lm/kg (230 lm/lb)LWR = Lumen-to-Weight Ratio
APPROVALSGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCAINCLUDED ITEMSSafety and Installation ManualMartin Omega bracket for rigging clamp attachment : P/N 91602001RELATED ITEMSMartin Companion Cable (for firmware update over DMX): P/N 91616091Martin Companion Software (for firmware update over DMX): Free download from www.martin.comACCESSORIESPower Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Power Connectors
Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HUInstallation Hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
