The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.
The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

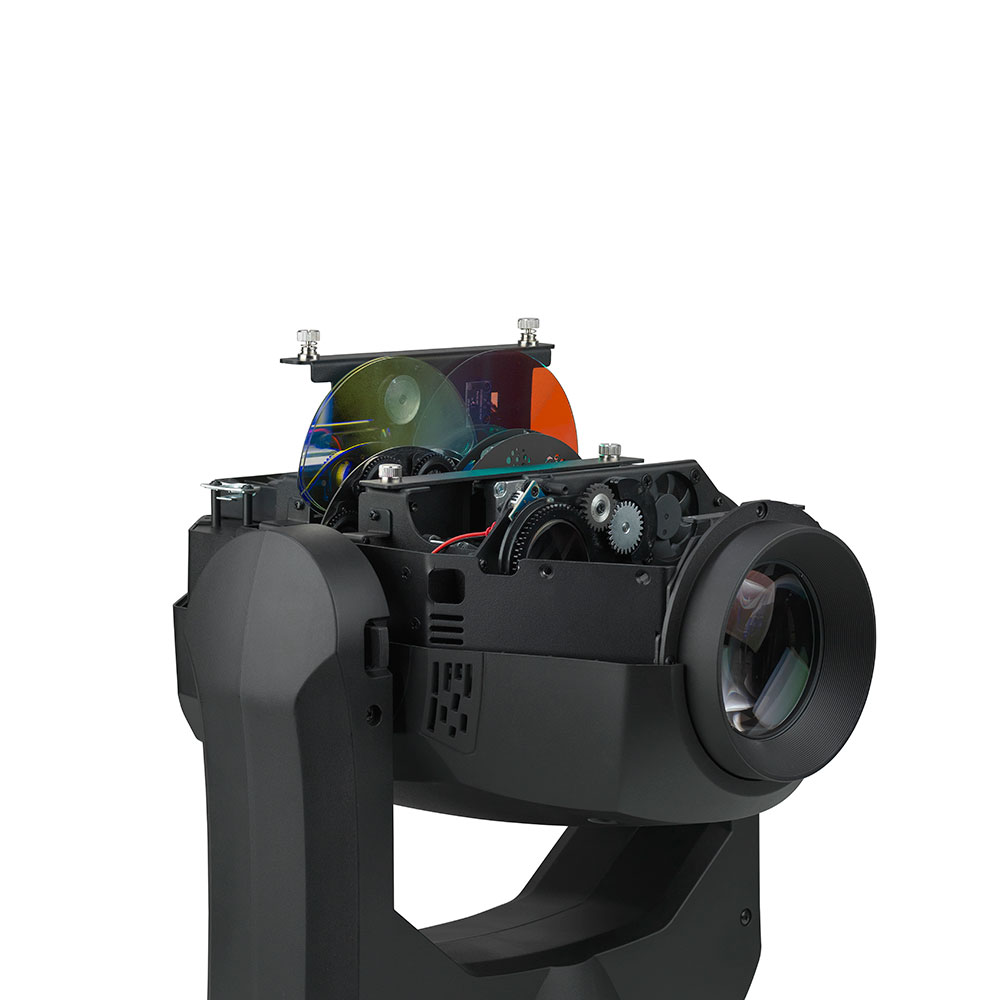

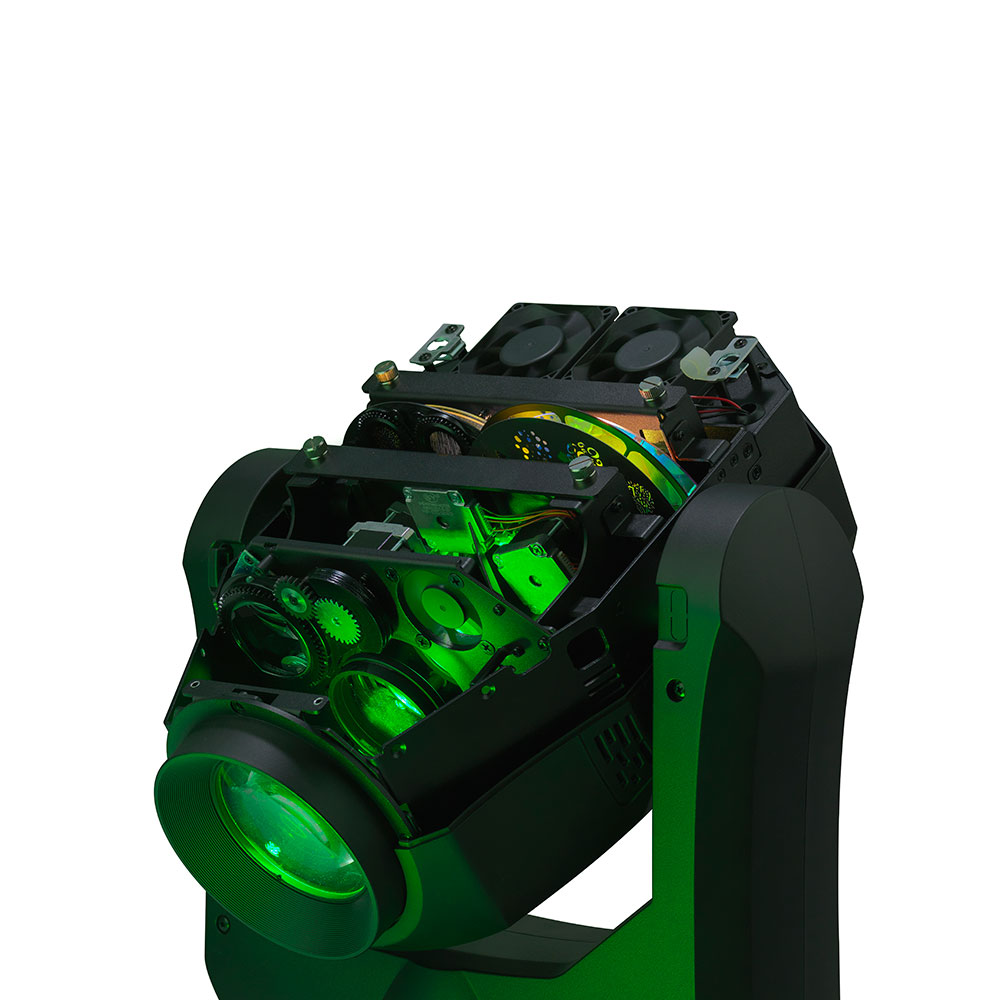

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.
FEATURES
- 260 watt / 6,500K LED light source
- 9,500 lumen output
- Full feature set including CMY color mixing and 1:2 zoom
- Crisp optics with flat field
- Very compact and low weight design
SPECIFICATIONS
-

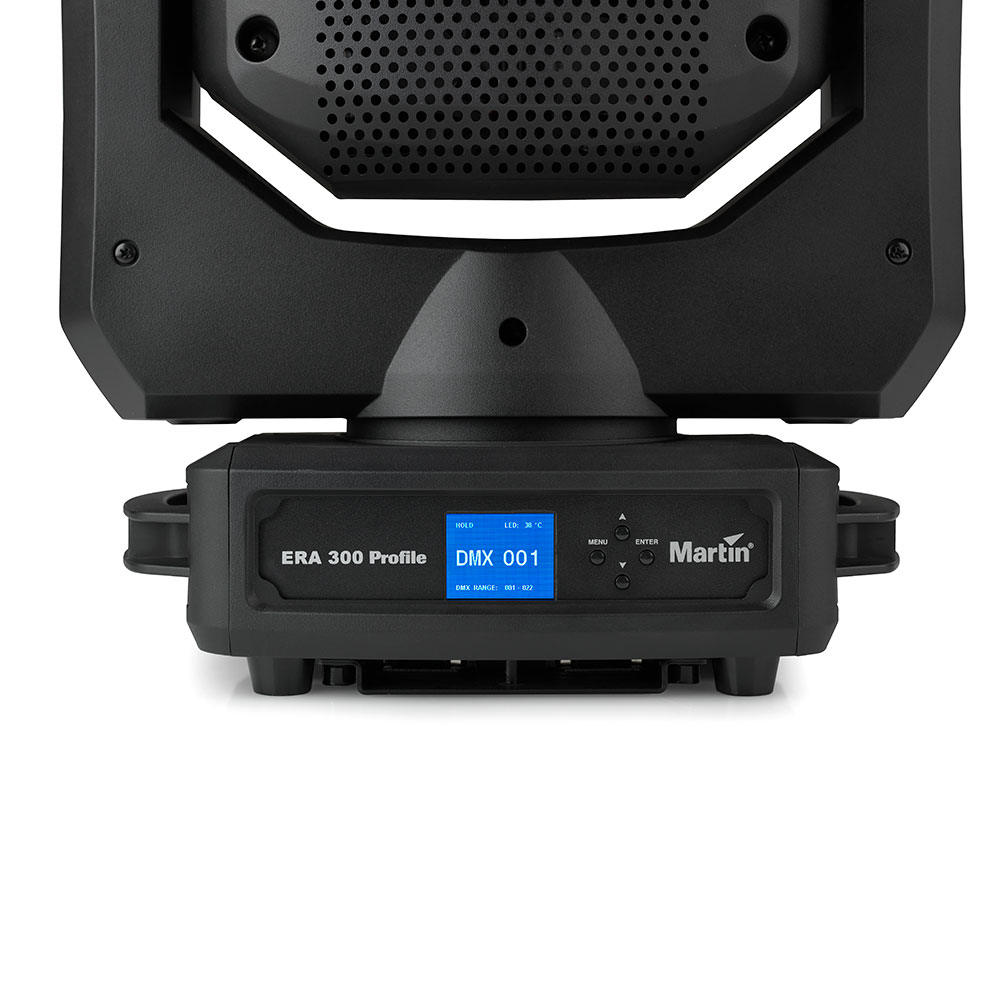

PHYSICALLength: 375 mm (14.8 in.)Width: 217 mm (8.5 in.)Height: 564 mm (22.2 in.)Weight: 17kg (38lbs)DYNAMIC EFFECTSColor mixing: CMY, independently variable 0-100%Color wheel: 9 color filters plus openBeam effects: Rotating three-facet prismRotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shakeStatic gobo wheel: 9 gobos plus open, wheel indexing, rotation and shakeIris: 0-100%Electronic dimming: 0 - 100%, four dimming curve optionsElectronic shutter effect: Strobe effect, pulse effects, instant open and blackoutZoom: MotorizedPan: 540°, coarse & fine control and speedTilt: 260°, coarse & fine control and speedFocus: MotorizedCONTROL AND PROGRAMMINGDMX channels: 21DMX compliance: USITT DMX512/1990RDM compliance: ANSI/ESTA E1.20Control options: DMX16-bit control: Dimming, pan and tiltSetting and addressing: Control panel with backlit LCD displayTransceiver: Opto-isolated RS-485OPTICSZoom range: 13° - 28°Light source: 260W LED engineMinimum LED lifetime: 20,000 hours (to >70% luminous output)*Binning: Tight color and flux binning*Manufacturer´s figure obtained under manufacturer´s test conditions.PHOTOMETRIC DATALight engine luminous output: 20,000 lumensFixture luminous output: 9,500 lumensCRI (Color Rendering Index) : >70CCT: 6500 KelvinLED refresh rate : 1200 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: Black/WhiteProtection rating: IP20GOBOSGobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)Maximum image diameter: 19.0 mm (0.75 in.)Gobo thickness, maximum: 1.1mm borosilicate glassINSTALLATIONMounting points: Two quarter-turn brackets for rigging clampsOrientation: Any -

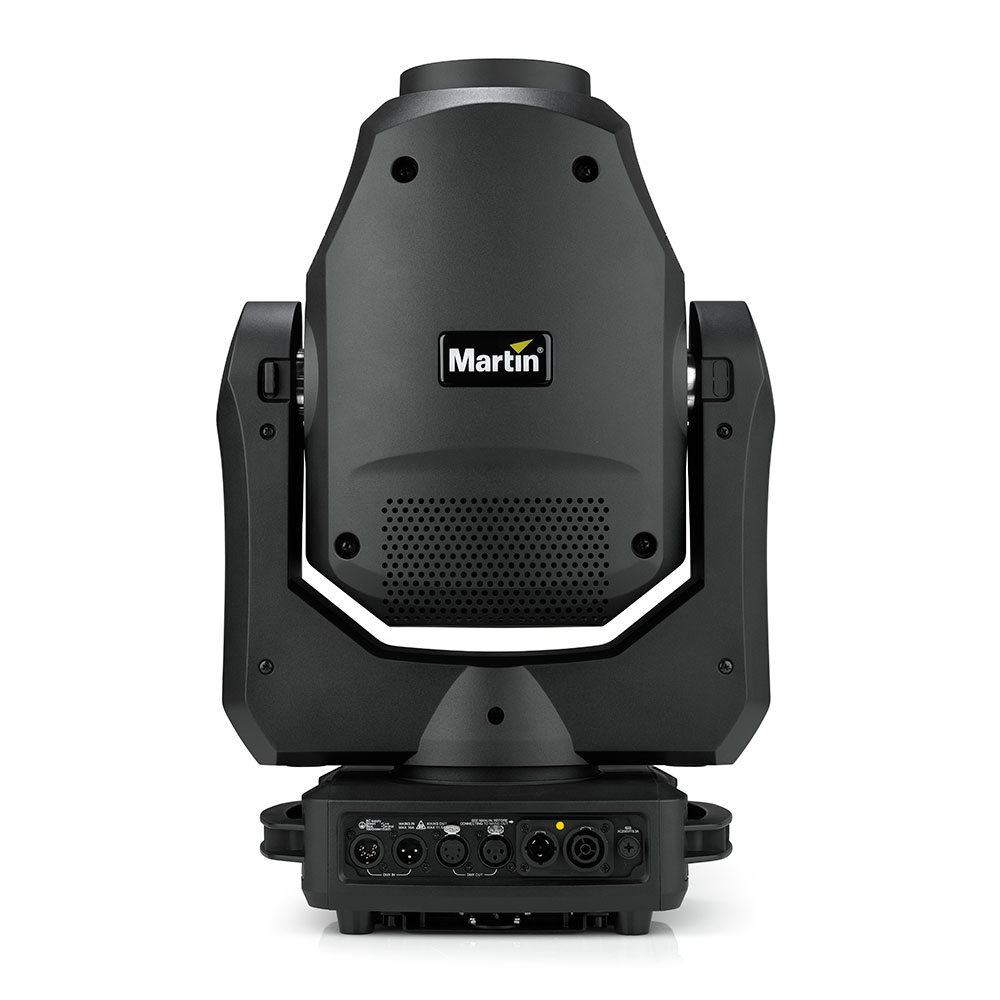

CONNECTIONSAC power in, thru: Neutrik powerCON TRUE1DMX data in/out: 3-pin & 5-pin locking XLRELECTRICAL
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Power Factor: 0.99 @ 120 V / 230 V
Typical current draw: 3.1 A @ 120 V , 1.6 A @ 230 V *
Power Consumption
Typical: 374 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
THERMALCooling: Forced air (temperature regulated, low noise)Maximum ambient temperature (Ta max.): 40° CMinimum ambient temperature (Ta min.): 0° CENVIRONMENTALRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantEfficacy (max output): 30.3 lm/WLWR*: 559 lm/kg (250 lm/lb)LWR = Lumen-to-Weight Ratio
APPROVALSGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMINCLUDED ITEMSPower cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
Omega brackets for rigging clamp attachmentRELATED ITEMSMartin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader) Free download from www.martin.comACCESSORIESCables, 16 A, for connection to power in chains:Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Cables, 16 A, for relaying power in chains:
Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Connectors:
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Installation hardware:
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler Clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
