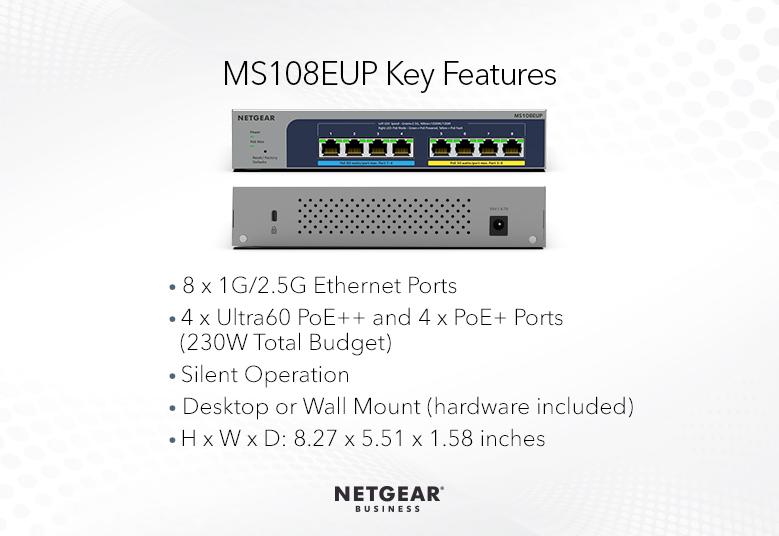

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.

Features

Multi-Gigabit Ethernet

8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.

PoE Support

4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.

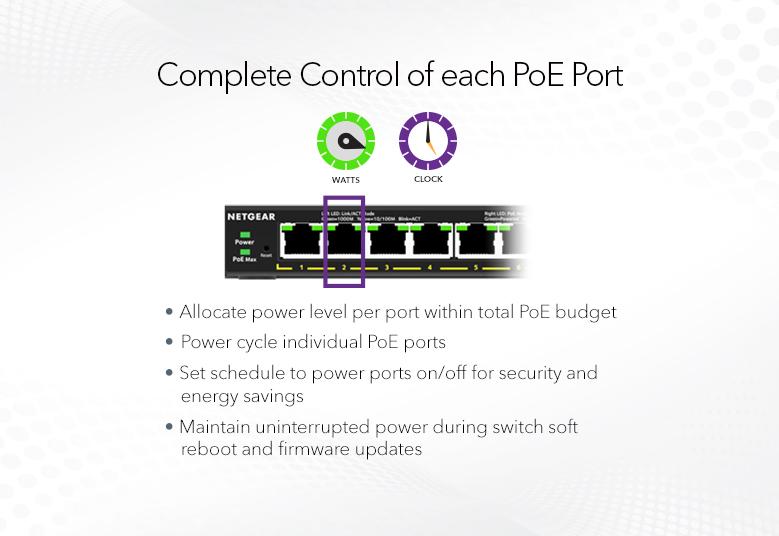

Advanced PoE Controls

Manage PoE prioritization, scheduling, power limit per port, and more for simple control over all PoE-powered devices.

Non-Blocking Switching

40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design

Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options

Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.



• Multi-gigabit copper ports : 8 (1G/2.5G)
• Number of PoE+ (802.3at) ports : 4
• Number of PoE++ (802.3bt) ports : 4
• Total PoE Power budget : 230 Watts
• Uninterrupted PoE : Yes
• Max MAC entries : 16K
• Buffer size : 1.5MB
• VLAN (Number Supported) : 64
• EEE : Yes
• DoS Prevention : Yes
• Internal/External PSU : External
• Max power (worst case, all ports used, line-rate traffic) : 230W
• Fans : 0
• Acoustic Noise Level @25C : Fanless
• Operating Temperature : 0° to 40° C (32 to 104F)
• MTBF : 373,643.7 hrs (42.6 yrs)
