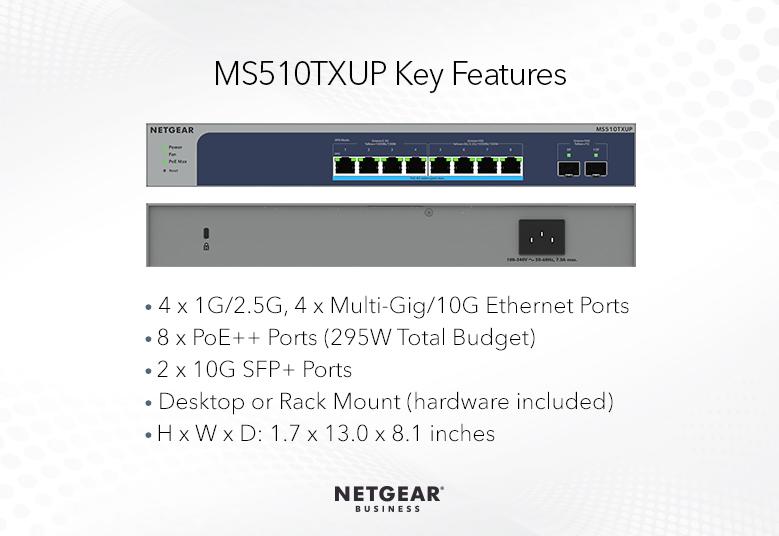

Provides 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. Includes 1-year of Insight Premium or Pro subscription.

Traffic Management

Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP

Switch Management

Insight mobile app or Insight Cloud Portal

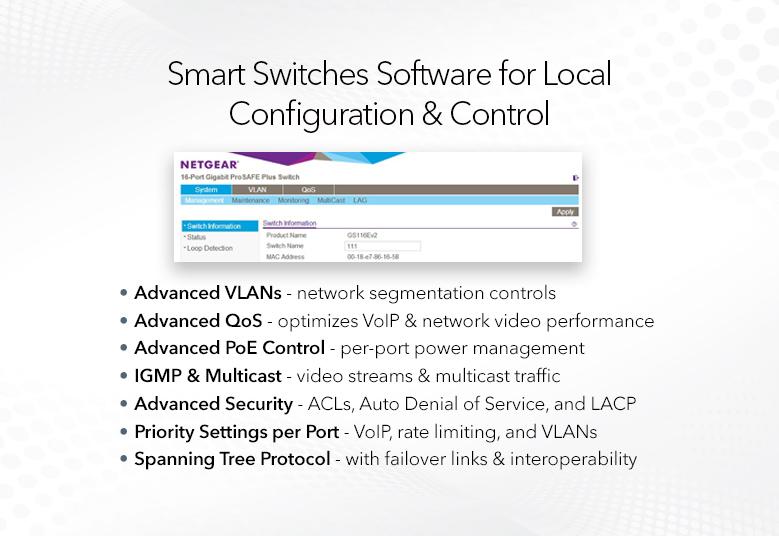

Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection

Security

MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions
TLS session
Trusted MAC
IPv4, L4-based Access Control List (ACL)
IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3
IGMP Snooping querier
Blocking of unknown multicast traffic
MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 512 (Selected models)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

• Multi-gigabit copper ports : 4 (1G/2.5G)
• Multi-gigabit/10 Gigabit copper ports : 4 (1G/2.5G/5G/10G)
• SFP+ ports : 2
• Number of PoE++ (802.3bt) ports : 8
• Total PoE Power budget : 295 Watts
• Uninterrupted PoE : Yes
• Max MAC entries : 32K
• Buffer size : 16Mbit
• VLAN (Number Supported) : 256
• VLAN routing : Yes
• Dynamic VLAN assignment : Yes
• MLD Snooping : Yes
• Static route : Yes (32)
• Host ARP table : 512 ARP
• EEE : Yes
• DoS Prevention : Yes
• Internal/External PSU : Internal
• Max power (worst case, all ports used, line-rate traffic) : 380W

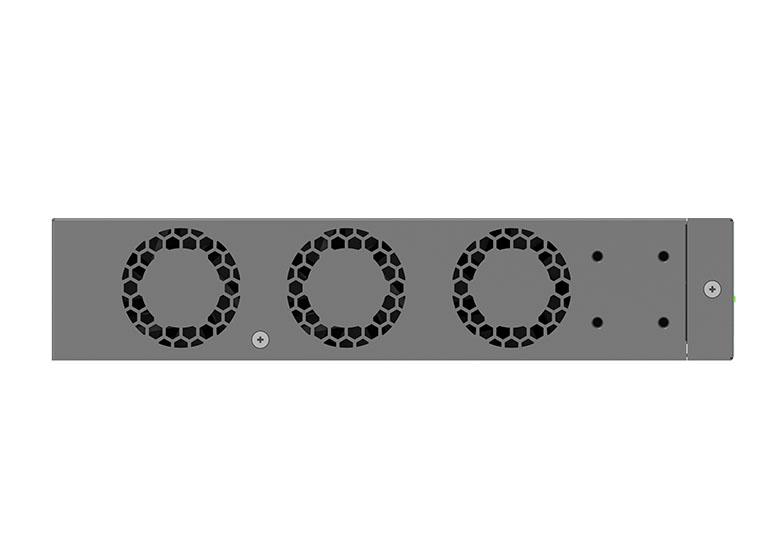

• Fans : 3
• Acoustic Noise Level @25C : 33.0 dBA
• Operating Temperature : 0° to 50° C (32 to 122F)
• MTBF : 848,553 hrs (96.9 yrs)
