Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection

Security

MAC lockdown

MAC lockdown by number of MACs

IEEE 802.1x port authentication - MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP

IEEE 802.1x port authentication - EAP: GS510TLP, GS510TPP, GS418TPP, GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS724TPv2, GS728TP, GS728TPv2, GS728TPP, GS728TPPv2, GS752TP, GS752TPv2, GS752TPP

Dynamic VLAN Assignment

Guest VLAN

TACACS+

3 HTTPS /SSL versions (except FS728TLP)

TLS session (except FS728TLP)

Trusted MAC

IPv4, L4-based Access Control List (ACL)

IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3

IGMP Snooping querier

Blocking of unknown multicast traffic

MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP

Option to enable/disable BPDU flooding when STP is disabled

Static routing with 32 static routes (Selected models)

Hosted ARP table size of 512 (Selected models)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

IEEE 802.1ab LLDP

LLDP-MED

Dual Image

SNTP

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Protected ports

DNS client (except FS728TLP)

DHCP clients

DHCP snooping (except FS728TLP)

Ping and traceroute client (except FS728TLP)

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

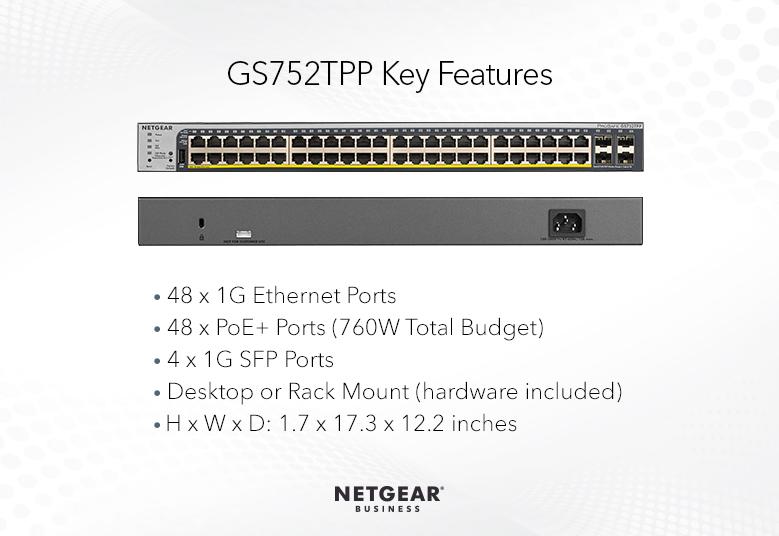

• Model Description : 48-Port Gigabit PoE+ Smart Managed Pro Switch w/ optional Remote/Cloud Management and 4 SFP Ports (GS752TPP)
• Management : Insight Remote/Cloud Manageable with 1-Year Insight subscription included
• 10/100Mbps ports : N/A
• Gigabit ports : 48
• SFP ports : 4
• Number of PoE ports : 48
• PoE+ (802.3at) : 48
• Total PoE Power budget (Watts) : 760W
• Max MAC entries : 16K
• Buffer size : 1.5MB
• VLAN (Number Supported) : 256
• VLAN routing : Yes
• Dynamic VLAN assignment : Yes
• MLD Snooping : Yes
• Static route : 32
• Host ARP table : 512
• EEE : Yes
• DoS Prevention : Yes
• Internal/External : Internal 100-240VAC 50-60Hz
• Max consumption (Watts) : 861W
• FAN : 3
• Acoustic Noise Level @25C (dBA) : 39.74
• Operating Temperature : 0° to 50° C
• MTBF : 1,107,549 hours
  • ProSupport: CAT 1
