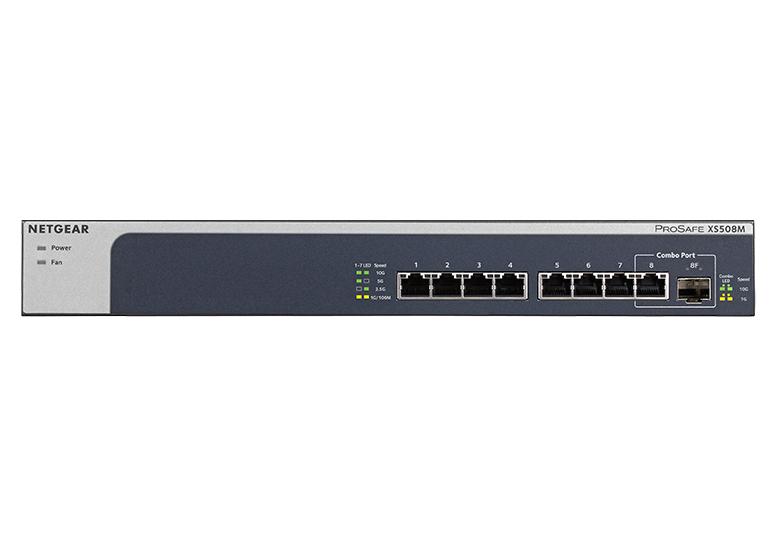

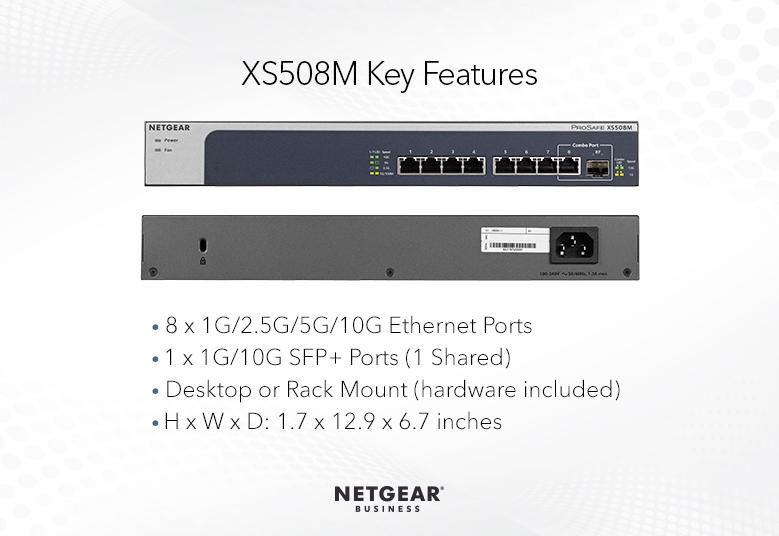

10-Gigabit/Multi-Gigabit (XS508M)
8-port, 5-speed Unmanaged Switch 10-Gigabit/Multi-Gigabit
The XS505M and XS508M come with copper Ethernet 5-speed ports that provide either FastEthernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity, as well as 1 SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity. Each port automatically detects which speed is needed.
- 100M/1G/2.5G/5G/10G RJ-45 copper ports : 7
- 10G SFP+ ports : 1 x 10G/1G SFP+ and Copper (combo)
- Form Factor : Desktop/Rackmount
- Packet buffer memory : 128KB
- Bandwidth : 160Gbps
- MAC Address database size : 2 K
- Number of priority queues : 8
- Jumbo frame support : Up to 9K packet size
- Fan(s) : 1 Low-Noise Active Fan
- IEEE 802.3az (Energy Efficient Ethernet) : Yes
- Max power consumption (Watts) : 39W
- LEDs : Power, Fan, Speed, Link/Activity
- Acoustic noise level @ 25° C (dBA) : 28dB
- Operating temperature : 0° to 40° C
- MTBF (@ 25° C) : 22.5dBA
- Electromagnetic compliance (A or B) : B
