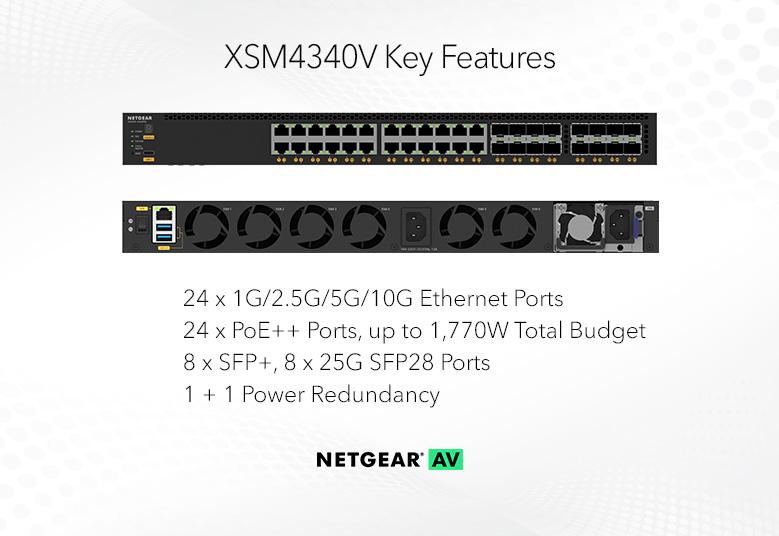

M4350-24X8F8V Fully Managed Switch (XSM4340V)
24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch
- 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
- 750W internal power supply providing 290W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
- TAA compliant SKU is available. Contact your sales representative
Width
440mm
Depth
400mm
Height
43.2mm
Weight
7.24kg (15.96lb)
Primary Port Speed
10 Gigabit / Multi-Gig
Number of Ports
40 (24x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28)
PoE Ports / Budget
24 PoE++ (90W/port), 290W Base, up to 1,770W Budget
IGMP Support
Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support
Yes, up to 12kb
AVB Support
Yes, included
Acoustics
Quiet Mode 32.6dB@25ºC
Power Consumption
With PoE: 464W/1582.24Btu/hr
Without PoE: 151.8W/476.65Btu/hr
Standby without any port connection: 53.4W/167.68Btu/hr
PSU Compatible Models
APS600Wv3
APS1200Wv2
APS2000Wv2
