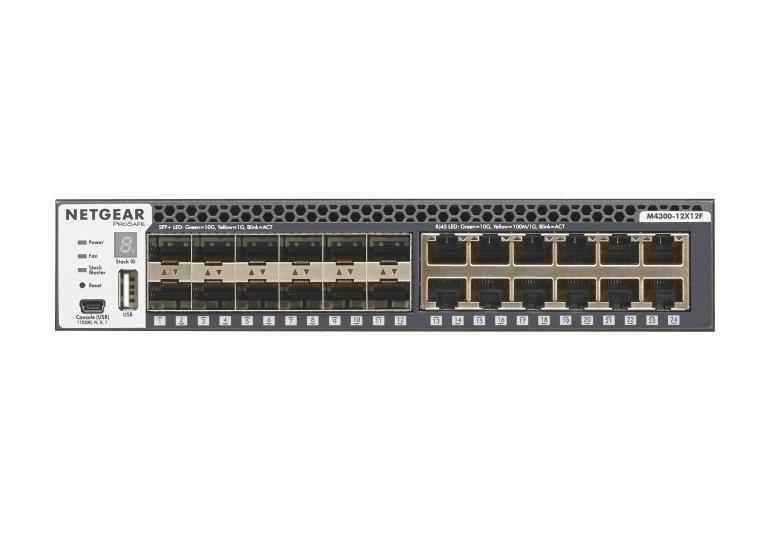

Stackable Half-Width Managed Switch with 12-Port 10GBASE-T and 12-Port 10GBase-X SFP+

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on  link state of different ports

Advanced IPv4/IPv6 security

Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Half-Width ToR

Combine 2 half-width models in a single rack space for redundant Top-of-Rack

Simple GUI

Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient

Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

Mix & Match Stacking

Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Industry Standard

SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)

Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready). Pre-configured for Out-of-Box Multicast/IGMP

No Delay

Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™

Prevent network flooding with effortless multicast implementation of Layer 2 Multicast

Dedicated Design

ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

Hardware Specifications

Model Number: XSM4324S

12 Ports Copper 100M / 1G / 10G

12 Ports SFP+ 1G / 10G

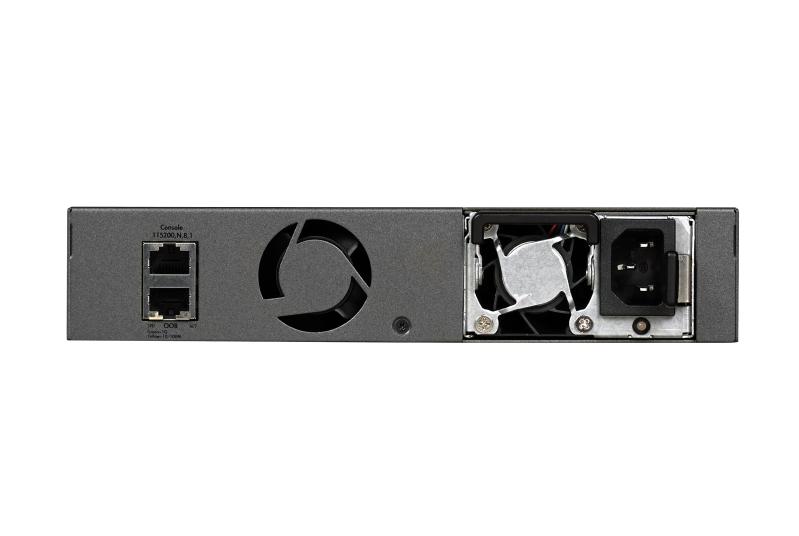

1 Modular Bay with One (1) 250W Modular PSU included APS250W

480 Gps Switching Fabric

Fixed Fan Front-to-Back 36.9dB





Management Options

Ethernet: Out-of-band 1G port (Back)

Console: RJ45 RS232 (Back)

Console: Mini-USB (Front)

Storage: USB (Front)

Single-pane-of-glass NMS300 management platform with mass-configuration support

Dual firmware image and configuration file for updates with minimum service interruption
