32x100G/50G/40G QSFP28 Managed Switch
These switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point.
- Model Description : M4500 Managed Switch with 32x100G QSFP28 ports
- Ordering Number : CSM4532
- Acoustics : 64.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source
- Power Consumption (Max) : 426 Watts
- 25G SFP28 Ports : N/A
- 100G QSFP28 Ports : 32 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G)

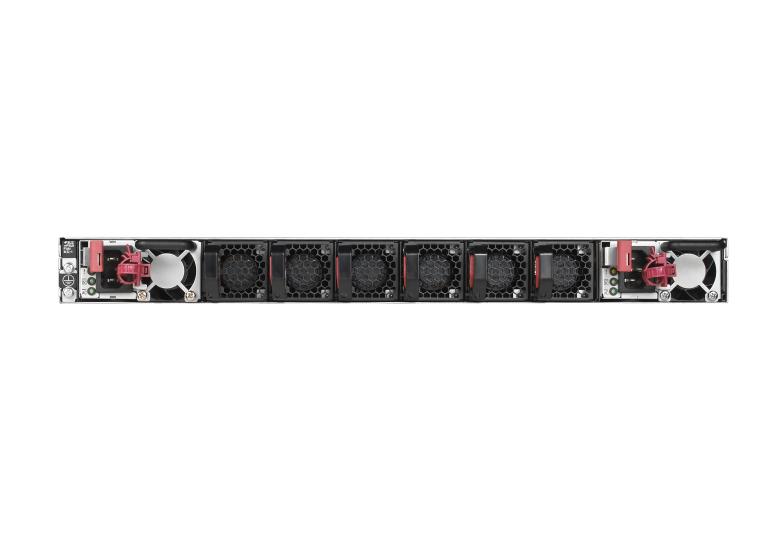

- PSU and Fans : 2 modular Power Supply Units and 6 modular Fan Trays come pre-installed
- Management : CLI only (local console, telnet port 1223 and SSH port 1234)
- Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45). RS232 straight-through serial RJ45 for local management console
- Form Factor : Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)
