Profile AIM LCR5 THREE - ASM54633-2

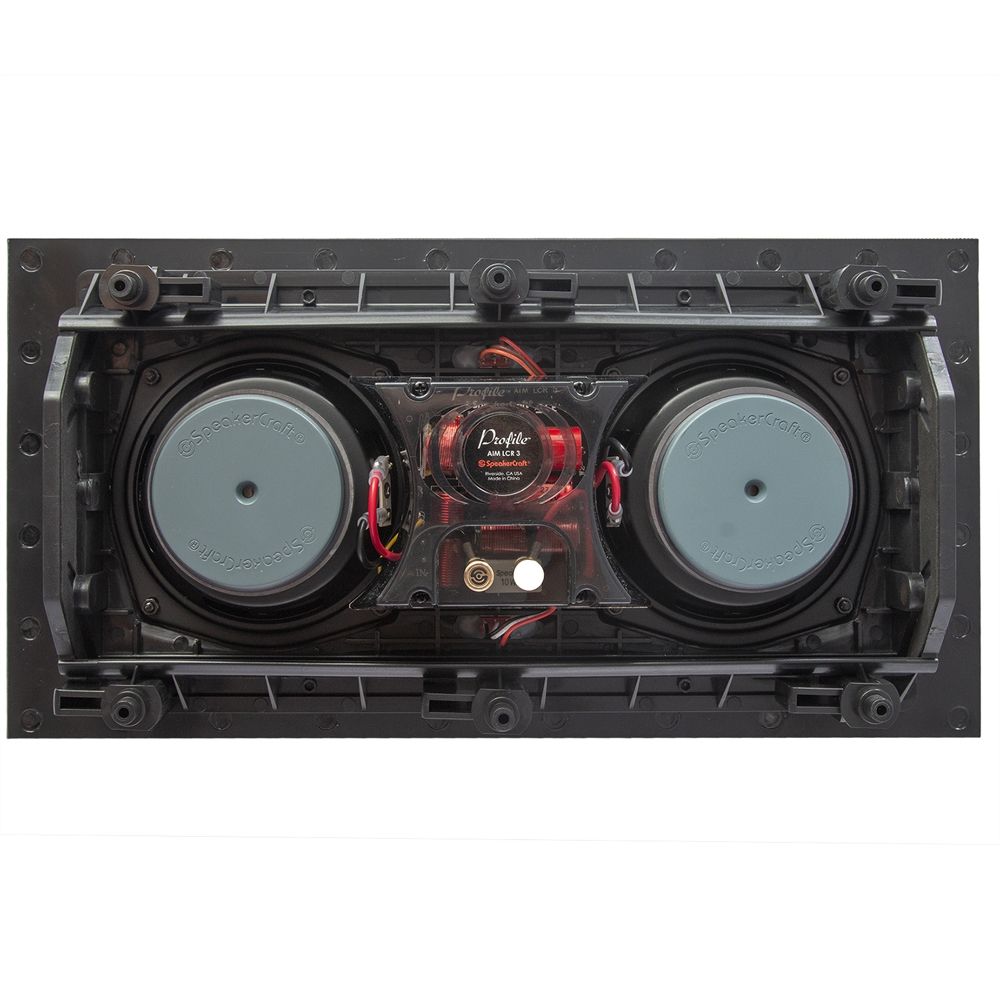

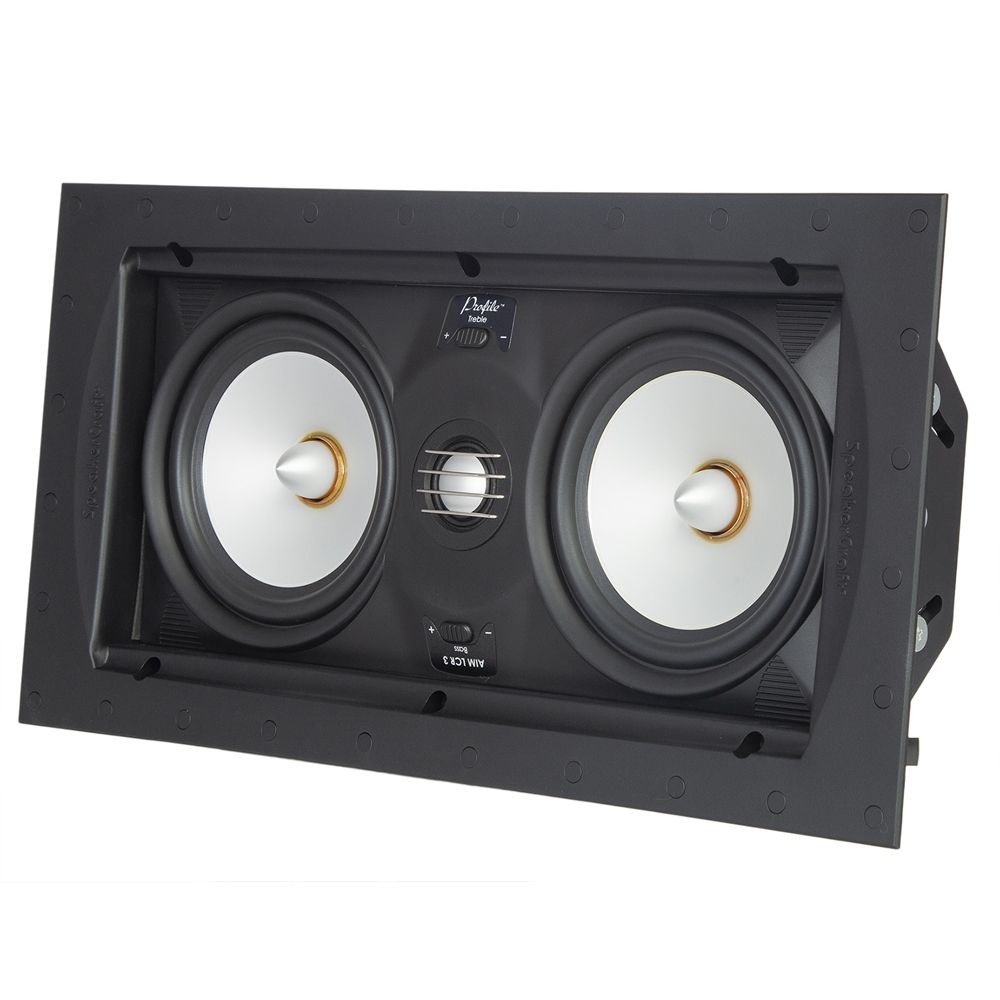

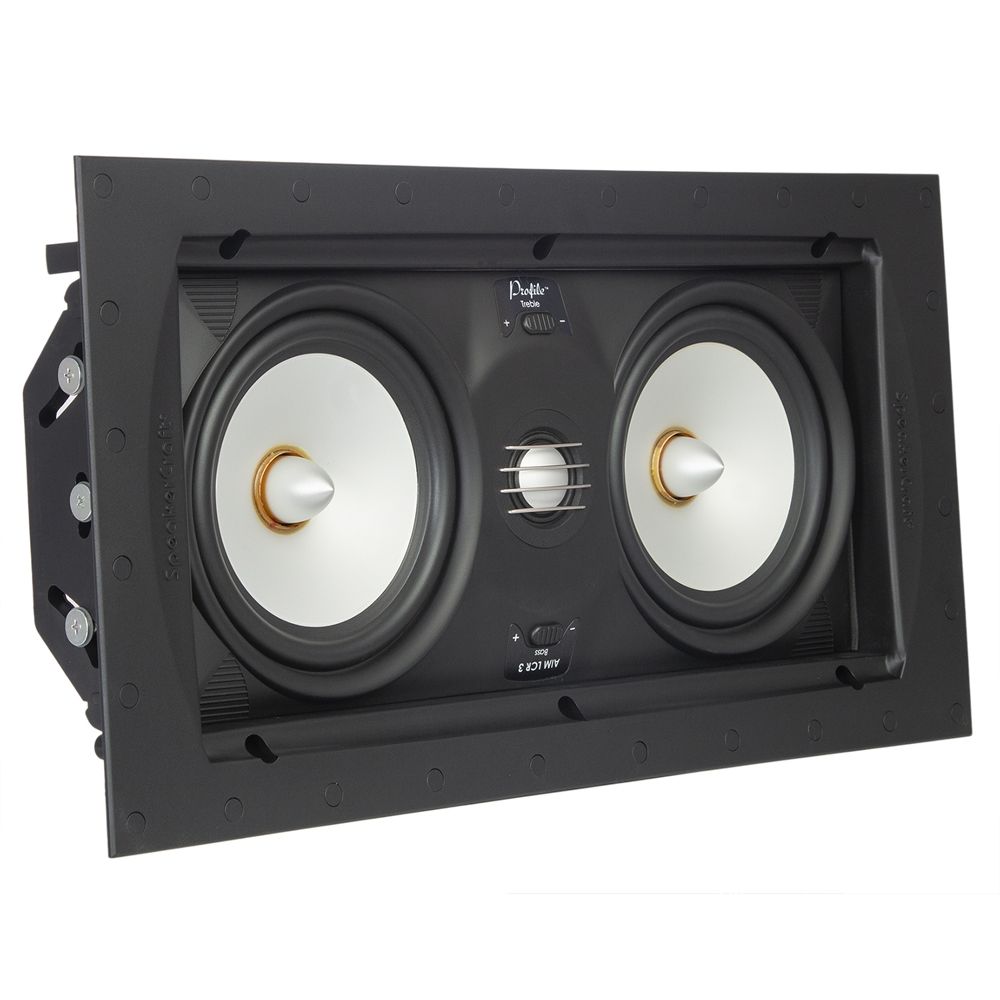

Superior response across the frequency spectrum, greater clarity and richer, tighter bass define the SpeakerCraft Profile AIM LCR Series, making it the perfect choice for use with flat panel video monitors. The Profile AIM LCR Series is available in two sizes: The LCR5s feature dual 5 ¼” woofers mounted with a 1” tweeter in a pivoting speaker baffle for precise aim-ability. For smaller spaces, the LCR3s rely on 3” woofers and a ¾” tweeter, again mounted in a pivoting baffle. All speakers in the line feature the sleek flangeless appearance designers and customers appreciate, and all are timbre-matched to SpeakerCraft’s FIVE, THREE and ONE material grades for consistency with other installed speakers in the home.
Specifications:
- Flangeless Appearance
- Pivoting Baffle
- Two 5 1/4” Aluminum/ Magnesium Woofers with Phase Plugs
- Pivoting 1” Aluminum/ Magnesium Tweeter
- Bass & Treble EQ Switches
- Timbre-Matched to All Three/Four Series
- Sensitivity: 90dB 1W/1m
- Power Handling: 100 Watts
- Adjustable Impedance: 8/6 Ohm
- Frequency Response: 50Hz - 20kHz
- Dimensions: (H x W x D) 17 1/8” x 9” x 4” 443mm x 235mm x 102mm (with Grille)
- Wall Cut-Out: (H x W) 14 1/4” x 7 1/2” 362mm x 190mm
|
