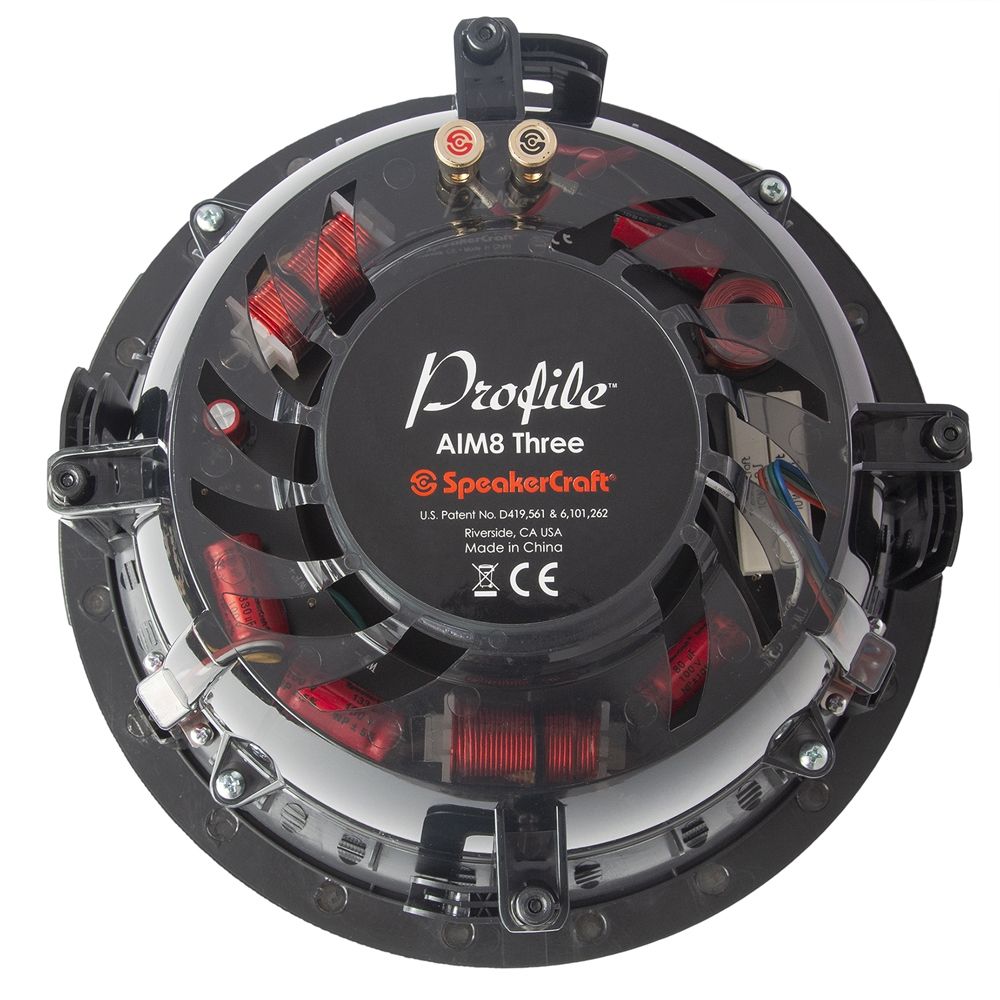

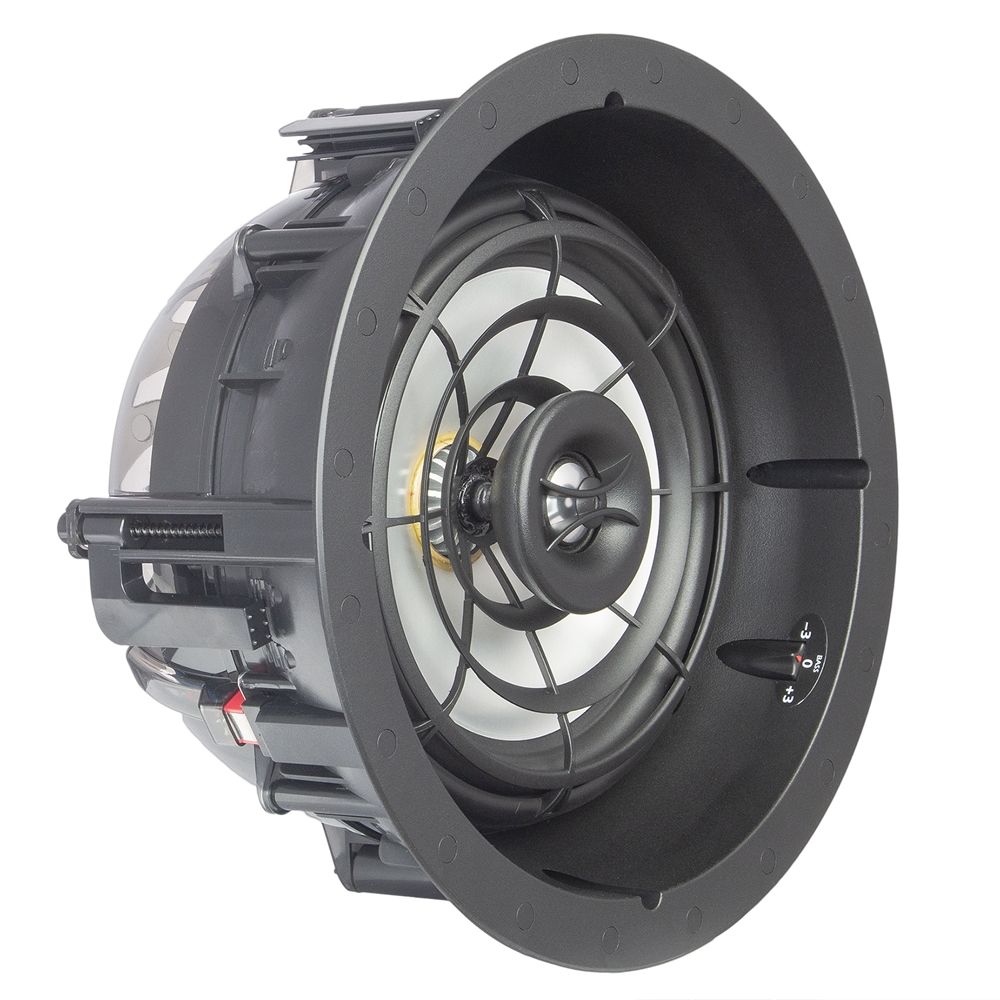

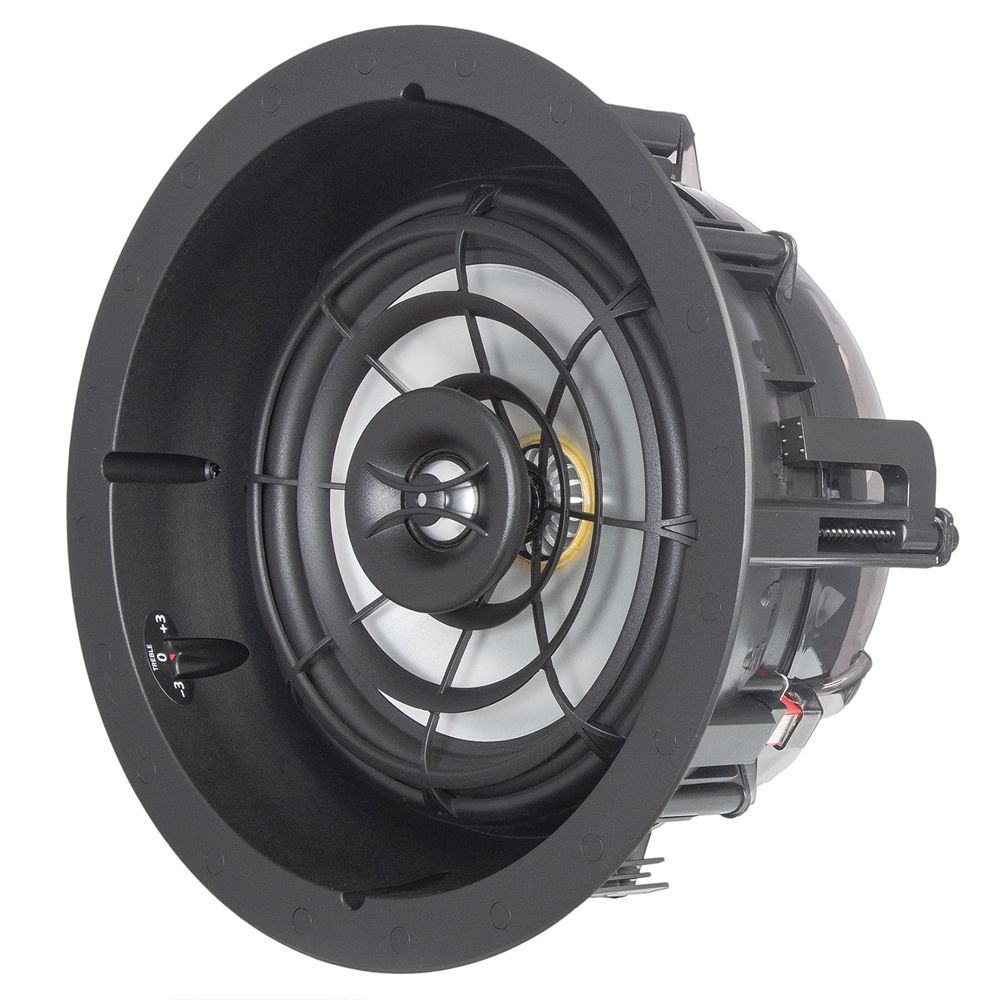

Profile AIM8 Three - ASM58301-2
The architectural loudspeaker has had a gigantic influence on the evolution of today’s home. Not surprisingly, it was SpeakerCraft that invented it. We knew the modern lifestyle would alter the way that sound was experienced. And thanks to speaker designs like the new AIM8 Series, music and movies sound better than ever.
Enter the new SpeakerCraft AIM8™ Series: a range of five high-performance models designed for ceiling installation, each with an 8" woofer. With the added benefit of our new WavePlane™, the AIM8™ speakers deliver outstanding bass response, beautifully balanced midrange and accurate high end.
The AIM8 Series speakers are marvels of technology, with *Kevlar™ woofers and liquid-cooled magnesium/aluminum tweeters. In addition, the low-frequency driver and tweeter are fully aimable, directing their output toward you for better perspective. And should the room furnishings or layout change, it’s no problem. Fingertip control means the AIM8™ speakers can be re-aimed whenever and wherever you want.
Superior response across the frequency spectrum, greater clarity and richer, tighter bass are all part of the new AIM8™ Series. Whether in a room-to-room stereo setup or a home theater design, these models deliver unrivaled imaging for movies and music.
Specifications:
- Flangeless Appearance
- Pivoting 7” Aluminum Woofer
- Pivoting 1” Aluminum Tweeter
- WavePlane Technology
- Bass and Treble EQ Switches
- Sensitivity: 91dB 1W/1m
- Power Handling: 125 Watts
- Adjustable Impedance: 8/6/4 Ohm
- Frequency Response: 40Hz - 20kHz
- Diameter x Depth: 9 5/8” x 5 1/8” 244mm x 130mm (with Grille)
- Cut-Out Diameter: 8 1/4” (210mm)
|
