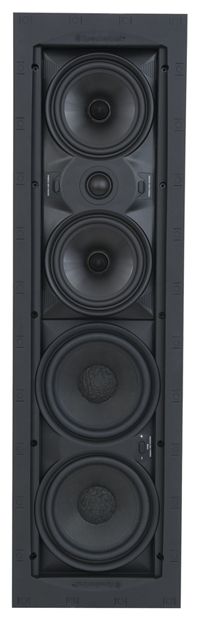

Profile AIM Cinema One - ASM59101-2
SpeakerCraft’s reputation is built on innovation and bold performance. The Profile AIM Cinema Series is no exception.
The Profile AIM Cinema Series speakers are the largest in-wall speakers we make, and they deliver big theater sound experience to every installation. Timber-matched to our FIVE, THREE and ONE series, these speakers incorporate the equivalent of a Profile AIM LCR on a pivoting sub-baffle for the mid-bass, midrange and high frequencies. Mounted below the sub-baffle are two high performance 6-inch woofers on a separate stationary sub-baffle to extend the low frequencies and increase overall output.
A full 30” tall, yet able to blend into any wall, all three versions of the Profile AIM Cinema Series deliver all the dynamics of today’s film soundtracks without missing any of the nuances. The result is a truly exceptional home theater experience.
Specifications:
- Flangeless Appearance
- Pivoting 1” Silk Tweeter
- Two 5 1/4” Graphite
- Woofers with Phase Plugs
- Two 6” Kevlar® Impregnated
- Paper Woofers
- Bass EQ Switch
- Bi-Amping Feature
- Timbre-Matched to All ONE Series
- Sensitivity: 89dB 1W/1m
- Power Handling: 125 Watts
- Impedance: 8 Ohm Compatible
- Frequency Response: 40Hz - 20kHz
- Dimensions: (H x W x D) 30 1/4” x 9” x 4” 768mm x 229mm x 102mm (with Grille)
- Wall Cut-Out: (H x W) 28 3/4” x 7 1/2” 730mm x 191mm
|
