Confidea WAP PS G4

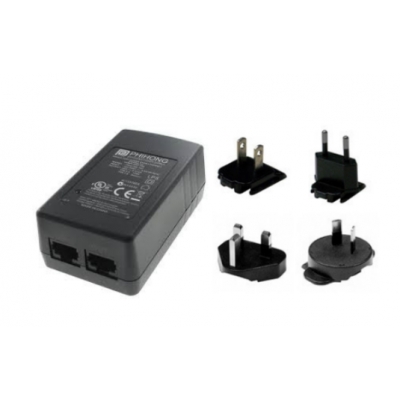

The Confidea PS G4 is a PoE injector to power the Confidea WAP G4 access point.
The adapter has two RJ45 connectors. One that connects to a switch or PC, the other connector adding power to the access point.
The adapter comes with interchangeable AC clips.
Specifications:
- Color: Black.
- Size adapter (W x H x D): 80 × 33 × 45 mm - 3.15 x 1.29 x 1.77 in.
- Size packed (W x H x D): 150 x 48 x 105 mm - 5.90 x 1.90 x 4.13 in.
- Weight adapter: 95 g - 3.35 oz.
- Weight packed: 204 g - 7.2 o.
- Standard: IEEE802.af compliant.
- DC Output voltage: 56 VDC.
- Output power: 15.4 W.
- AC Input voltage: 100 to 240 VAC.
- AC input current: 0.8 A (RMS) for 115 VAC - 0.5 A (RMS) for 230 VAC.
- AC inrush current: 15 A (RMS) for 115 VAC - 20 A (RMS) for 230 VAC.
- AC input frequency: 47 - 63 Hz.
- Operating temperature: 0 – 40°C.
- Storage and transport temperature: -25 – 65°C.
- Humidity: <90%, >5%.
