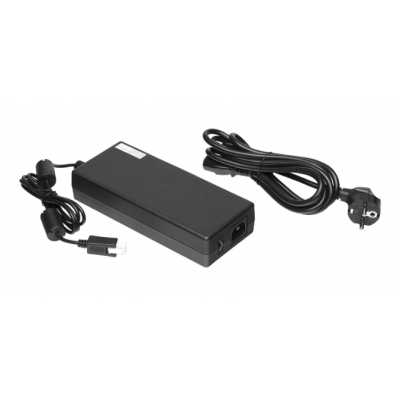

Plixus AE-R PS
The Plixus AE-R PS is a separate power supply for use with the Plixus AE-R.
Features
- Lockable connector.
Specifications:
- Material: ABS.
- Color: Black.
- Input AC Socket Type: IEC 320-C14 Type.
- Size (mm): 204 (l) x 88 (w) x 42 (h).
- Size packed (mm): 317 (l) x 147 (w) x 50 (h).
- Weight: 1280g.
- Weight packed:1350g.
- Rated Input Voltage: 100Vac-240Vac.
- Input Voltage Range: 90Vac to 264Vac.
- Input Frequency Range: 47Hz to 63Hz ( ±1Hz )
- Input Current at: 100Vac, 240Vac / 5.62A load: ≤ 3.5A.
- Input Current Harmonic: IEC61000-3-2 Class D.
- Supply Voltage: 48V/5.62A.
- Max Consumption: 270 W.
- Typical Supply Power: 220 W.
- Short Circuit Protection: YES.
- Over Voltage Protection: YES.
- Over Power Protection: YES.
- Over Temperature Protection: YES.
- Electric Fast Transients:Refer to IEC61000-4-4: Normal operation shall be continued.
- Lightning Surge:Refer to IEC61000-4-5: Normal operation shall be continued.
- Electron Static Discharge: (Refer to IEC61000-4-2 Energy Storage Capacitor 150pF; Discharge Resistor 330): Normal operation shall be continued.
- Cooling: Natural air cooling.
- EMI: Adapter comply with the following national standards:- EMI Conducted Emission- EMI Radiated Emission: FCC PART 15J CLASS BCISPR22 EN55022 CLASS BVCCI LEVEL II.
- Safety conforming: Regulated by customer.
- Energy-related Products [ErP]: Comply with ErP standard.
- Department of Energy [DOE]: Comply with DOE stan-dard.
- Leakage Current at264Vac / 50Hz: ≤ 3.5mA.
- Operating Temperature: 0 to 40°C (safety) - 40 to 70°C Linearly de-rate to 50% load at 70°C.
- Storage Temperature: 20 to +80°C.
- Humidity Operating: 20% ~ 80%.
- Humidity Storage: 10% ~ 90%
