Plixus PS

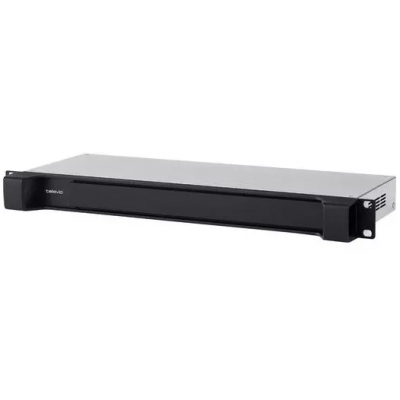

The Plixus PS is a 1U high 19” rack mount 48 VDC/1000W power supply. The front panel is equipped with a rocker mains switch with built-in indicator and a 48 V indicator. The unit comes with 6 Phoenix connectors included.
Features
- On/Off rocker switch with built-in indicator.
- 48 V LED.
- Power good TTL output provided on a sub D9 connector.
- Mains fuses.
Connectivity
The 230 V mains is connected to the Plixus 1U by means of a EN60320 c13 connector at the back of the power supply.Six 3-pin detachable Phoenix connectors are provided at the rear of the Plixus PS/1U to branch off the 48 V.
Specifications:
- Material: Steel.
- Housing: 1U 19 rack module.
- Color: RAL 9011.
- Size (mm): 260 (w) × 45 (h) × 485 (d).
- Size packed (mm): 295 (w) × 100 (h) × 495 (d).
- Weight: 4590 g.
- Weight packed: 5180 g.
- Mains power input: 100-240 VAC 60/50 Hz.
- Mains connector: EN60360 c13.
- Inrush current: 25 A / 115 VAC 40 A / 230 VAC.
- Mains fuses: T14 A / 125VAC T6.3 A / 230 VAC.
- Output voltage: 48 VDC.
- Output connector: 3-pin detachable phoenix terminal block
- Power Good TTL output: Open collector, low when switched on, max 10 mA.
- Protection: Short circuit - Overload - Temperature - Over voltage.
- Cooling: Forced.
- Technology: Switched Mode Power Supply.
