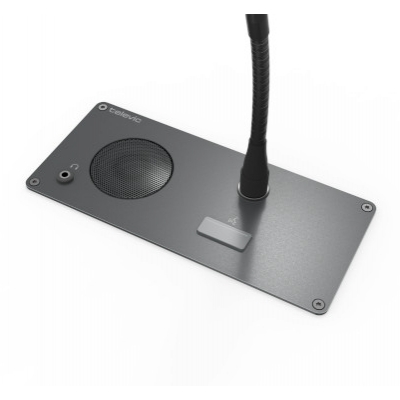

Confidea F-DD Mike
The Confidea F-DD Mike is Televic’s delegate panel for basic discussion systems, equipped with an integrated speaker. Its small form factor, housed in an elegant casing, permits a minimalistic integration into any meeting room furniture.
The integrated speaker creates a distributed sound field in the meeting room, increasing intelligibility without the need for an additional room sound system.
The panel has a microphone connector to fit the new push-and-lock Mike microphone that reduces setup time. A 3.5 mm jack socket is available to connect headphones or a hearing loop for the hearing impaired. The chairperson version of this panel has additional controls.
Features
- Basic discussion function.
- Tactile microphone push button with integrated LED.
- Integrated loudspeaker.
- Rounded corners for easy installation.
- Trademark natural Televic Sound.
- Available in custom colors, sizes, finishes.
- Basic discussion function.
Specifications:
- Material: Steel.
- Color: Tiger coating Carbon 01.
- Size (mm): 180 (w) × 80 (h) × 70 (d).
- Size packed (mm): 235 (w) × 120 (h) × 85 (d).
- Weight: 640 g.
- Weight packed: 740 g.
- Voltage: 48 VDC.
- Current consumption: 3.5 W.
Speaker Output:
- Maximum output power: > 1 W.
- Frequency response: 200-20,000 Hz.
- Dynamic range: > 90 dB.
- THD @ nominal level: < 0.1%.
- Load impedance: 8 Ω.
Headphone Output:
- Maximum output: > 10 mW.
- Frequency response: 22-22,000 Hz.
- Dynamic range: > 90 dB.
- THD @ nominal level: < 0.1%.
- Load impedance:16-32 Ω.
Microphone Input:
- Microphone Dinamic Range: > 90 dB.
- Frequency response: 20-20,000 Hz.
- THD @ nominal level: 0.1%.
