Confidea F-DV Mike

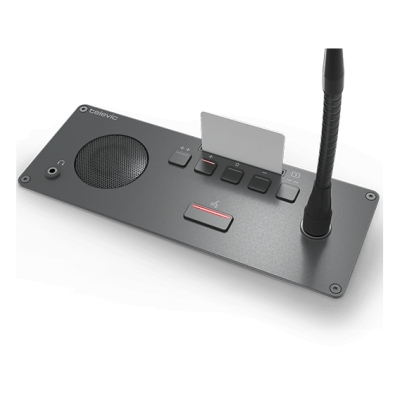

The Confidea F-DV is Televic’s delegate panel for basic discussion systems, with an integrated speaker and electronic voting.
Its small form factor, housed in an elegant casing, permits a minimalistic integration into any meeting room furniture. The
integrated speaker creates a distributed sound field in the meeting room, increasing intelligibility without the need for an additional room sound system.
The panel has a microphone connector to fit the new push-and-lock Mike microphone that reduces setup time. A 3.5 mm jack socket is available to connect headphones or a hearing loop for the hearing impaired.
The voting systems includes 5 voting buttons and an RFID card reader for identification and authentication.
Features
- Basic discussion function.
- Electronic voting function.
- Tactile microphone push button with integrated LED.
- 5 clear voting buttons with LED indicators: ++/+/0/-/--.
- RFID card reader.
- Integrated loudspeaker.
- Rounded corners for easy installation.
- Trademark natural Televic Sound.
- Available in custom colors, sizes, finishes.
Specifications:
- Material: Steel.
- Color: Tiger coating Carbon 01.
- Size (mm): 210 (w) × 80 (h) × 70 (d).
- Size packed (mm): 250 (w) × 120 (h) × 85 (d).
- Weight: 740 g.
- Weight packed: 860 g.
- Voltage: 48 VDC.
- Current consumption: 4 W.
- Card reader: ISO 14443 MIFARE Card Reader DESfire EV1 support.
Speaker Output:
- Maximum output power: > 1 W.
- Frequency response: 200-20,000 Hz.
- Dynamic range: > 90 dB.
- THD @ nominal level: < 0.1%.
- Load impedance: 8 Ω.
Headphone Output:
- Maximum output power: > 10 mW.
- Frequency response: 22-22,000 Hz.
- Dynamic range: > 90 dB.
- THD @ nominal level: < 0.1%.
- Load impedance: 16-32 Ω.
Microphone Output:
- Dynamic range: > 90 dB.
- Frequency response: 20-20,000 Hz.
- THD @ nominal level: 0.1%.
