CP-8

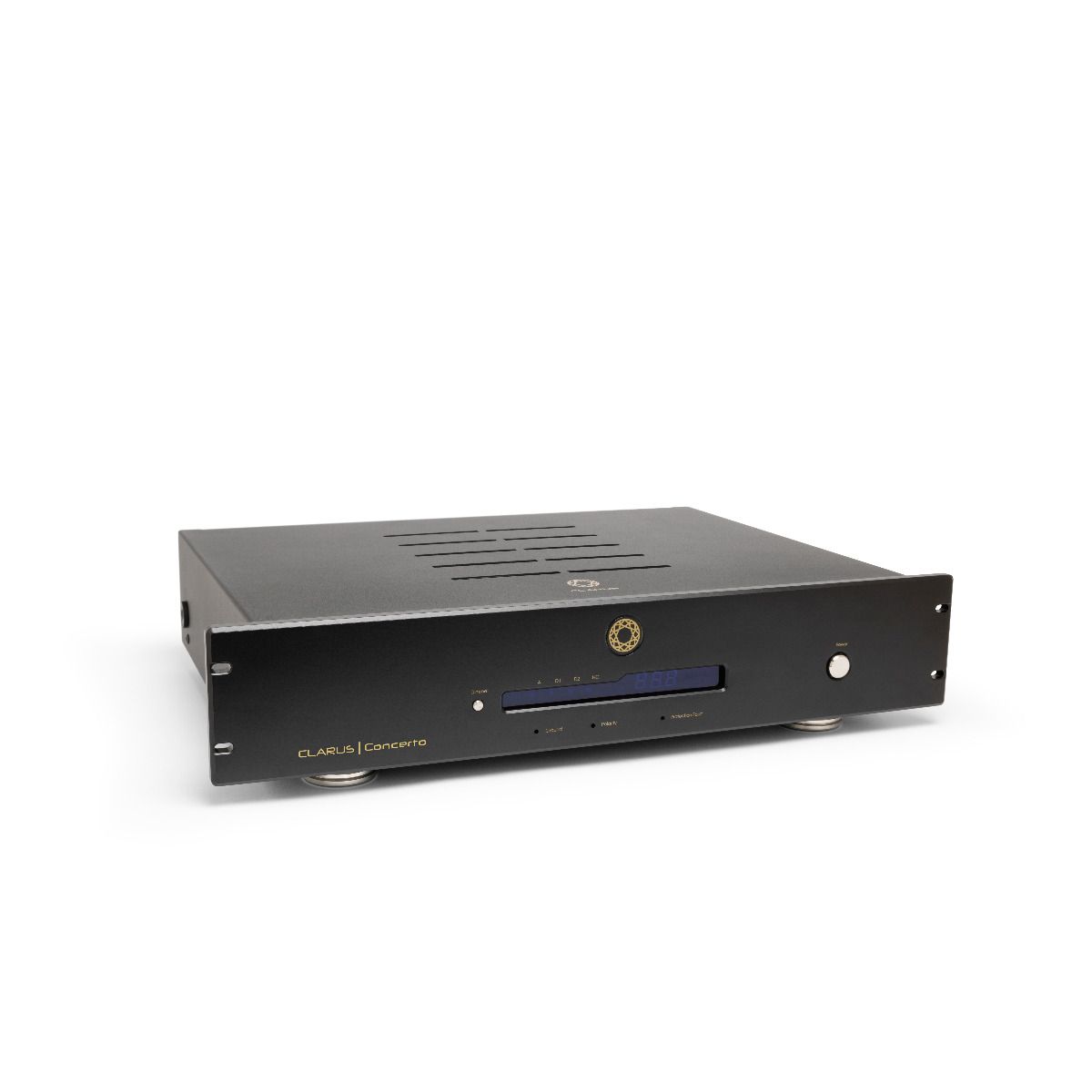

By applying innovative engineering concepts combined with extensive listening from analog and digital components, Clarus developed Concerto, a state-of-the-art power conditioner. The Clarus Concerto provides your system components with AC power scrubbed clean of the unwanted extraneous noise generated onto your building’s internal power grid by electrical appliances or induced by electromagnetic interference (EMI). Concerto features a high-performance AC line conditioner, noise eliminator, surge suppressor, under/over voltage protection, vibration control, and a cable support bar to easily handle heavy power cables.

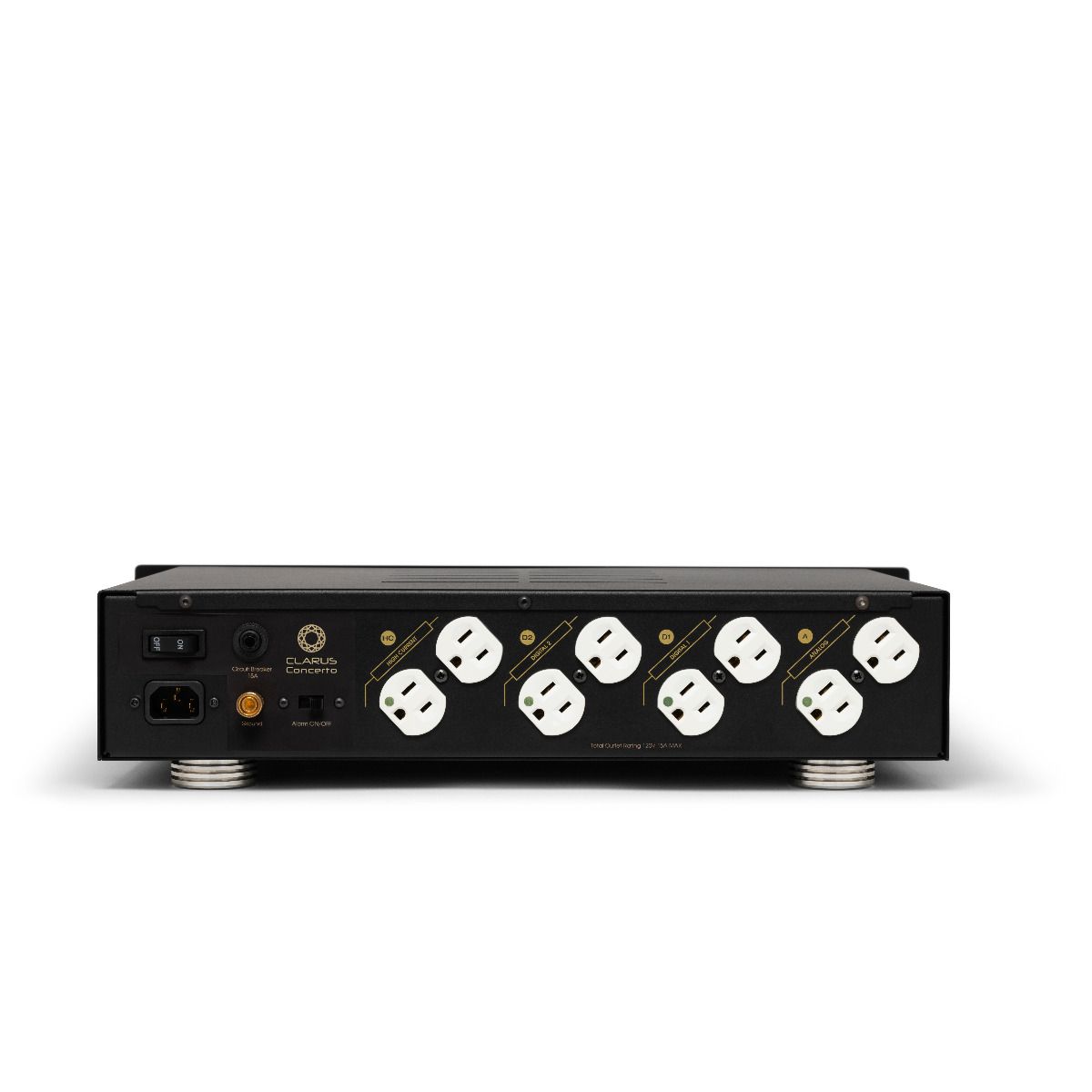

The Concerto features high-performance hospital-grade outlets engineered with advanced materials to ensure electrical contact integrity and reliability over time. Angled at 45 degrees to make AC plug connections easy, each duplex outlet and associated filter circuit is isolated, thus prohibiting interaction between adjacent outlets. Each outlet bank is labeled as ANALOG, DIGITAL, or HIGH CURRENT to guarantee the appropriate type of filtering for each component type.
The Concerto will not limit current. We recommend the CCP-HC Crimson High Current Power Cable which will not limit current.
Clarus-Core Technology for the Lowest Possible Noise FloorThe Concerto Power Conditioner features proprietary Clarus-Core (C-Core) technology in all analog & digital filters and, Clarus-High Current Core (HC-Core) in the high current filters. Made with nanocrystalline soft magnetic (ferrite) material, the magnetic flux density and high permeability of the military-grade Clarus-Cores produce a high impedance resulting in excellent noise suppression over a wide high frequency range. No other core performs as well to keep your AC signal silent and clean.
Specifications:
- Filtered Outlets: 2-High Current, 4-Digital, 2-Analog
- Rating: 120 VAC / 15AMP
- Protection Mode: L-N, N-G, G-L
- Clamping Voltage: 395 VAC Max
- Max Surge Current: L-N = 80kA
- Joule Rating: 960 Joules
- Net Weight: 19 lbs
- Dimensions: 3.5”H x 19”W x 12.75”D
- RoHS: Yes
